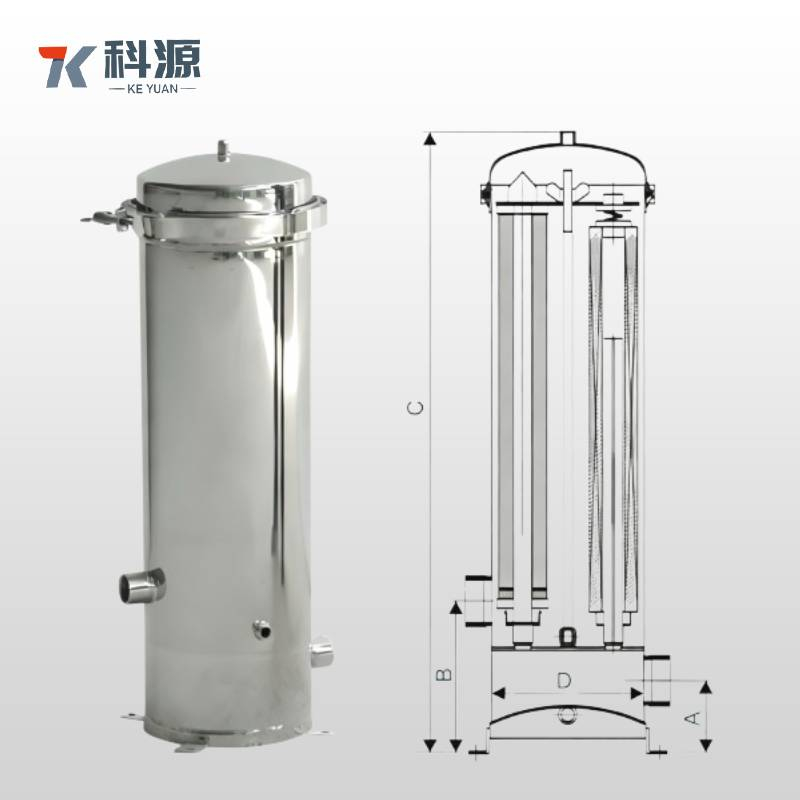

Technical Specifications
Tank material: SUS304, SUS316L
Design pressure: 0.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)
Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber
Interface method: Threaded,standard flange,quick release chuck Opening method: Clamp type
Filtering accuracy: 0.1um-100um
Surface treatment: Polishing/matte sandblasting
Does it has legs: Customised
Filter cartridge form: Flat holding, 222/226 socket filter cartridge
Key Features & Benefits
Exceptional Filtration Accuracy: Utilizes high-grade stainless steel filter elements (available in a wide range of micron ratings) to ensure consistent particle retention, high dirt-holding capacity, and optimal product clarity.
Sanitary & Hygienic Design: Constructed from 316L (or 304) stainless steel with polished internal surfaces (Ra ≤ 0.8 µm). The Tri-Clamp (Tri-Clover) connections allow for quick, tool-free disassembly, ensuring easy cleaning, inspection, and maintenance to meet strict sanitary standards (3-A, FDA, cGMP compliant).
Robust & Durable Construction: Built to withstand high pressures, temperatures, and rigorous CIP/SIP procedures. All-welded construction ensures integrity and prevents bypass leakage.
Operational Efficiency: The compact, streamlined design minimizes pressure drop and product hold-up volume. The easy-to-clean design reduces downtime, increases productivity, and lowers total cost of ownership.
Versatile Configuration: Available in single or multi-element housings to accommodate various flow rates. Options include pressure gauges, vent and drain valves, and different element types to suit specific application needs.
Reduced Downtime: Average filter change time reduced by 70% compared to bolted designs
Enhanced Safety: No loose bolts or tools required, minimizing workplace hazards
Pharmaceutical: Process intermediates, solvent filtration, purified water systems
Food & Beverage: Syrups, edible oils, dairy products, brewing applications
Chemical Processing: Catalysts recovery, polymer filtration, chemical purification
Electronics: Photoresists, etchants, ultrapure water pre-filtration
Cosmetics: Creams, lotions, fragrances, active ingredients
Consistent Performance: Uniform clamping force ensures reliable sealing cycle after cycle
Versatile Applications: Suitable for batch and continuous processes across multiple industries
Time-Saving Innovation: Dramatically reduces maintenance time and labor costs
Reliable Performance: Proven sealing technology with thousands of installations worldwide
Hygiene-Focused: Designed for easy cleaning and compliance with sanitary standards
Cost-Effective Operation: Lower total cost of ownership through reduced maintenance and downtime
