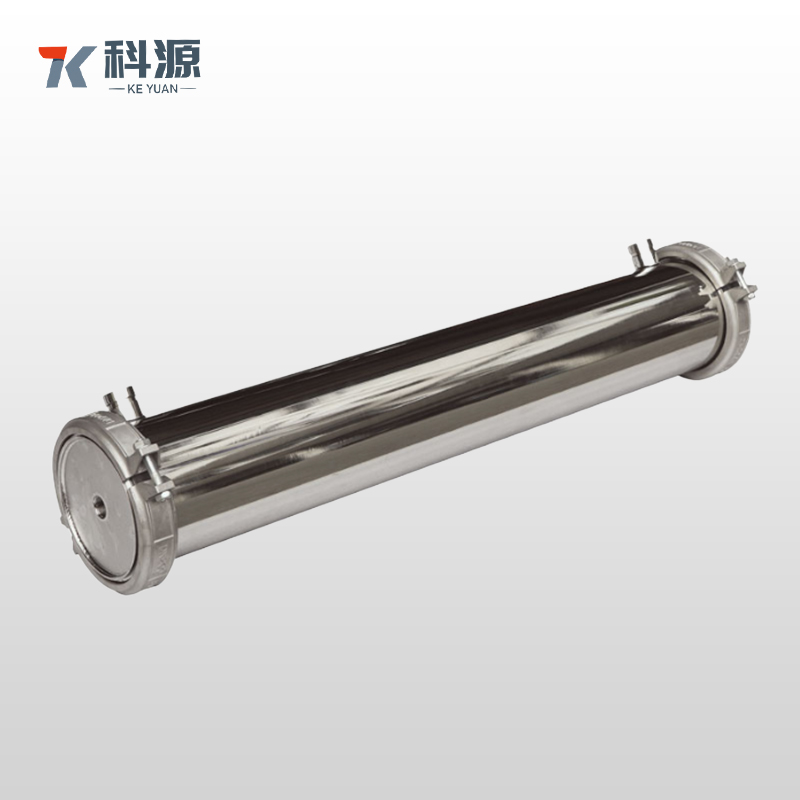

8'' Membrane Housing-Coupling Type

  • Equipped with 8040 standard membrane element, can hold 1-6 pieces

Availability:
Quantity:


Parameter Overview:

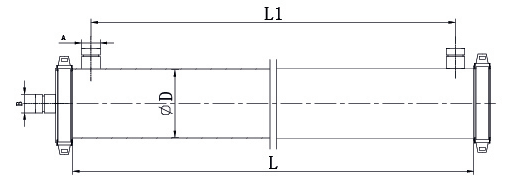

8 Membrane Housing-Coupling Type 插入图纸P29

Side inlet, 8-inch membrane housing coupling type

Work pressure: 300PSI/600OPSI

Maximum working temperature: 90°C

Shell material: Stainless steel 304/316L

End cap material: stainless steel 304/316L

O-ring material: EPDM, NSF grade

Surface treatment: mechanical polishing (320 mesh, Ra<0.6)

Model: Equipped with 8040 standard membrane housing, can hold 1-6 pieces


Model

L

(mm)

L1
(mm)
D
(mm)

A

In

B
Out
KY-MKN-8040 1359 1119 203 11/2"-3" 1"
KY-MKN-8080 2375 2135 203 11/2"-3" 1"
KY-MKN-80120 3391 3151 203 11/2"-3" 1"
KY-MKN-80160 4407 4167 203 11/2"-3" 1"
KY-MKN-80200 5423 5183 203 11/2"-3" 1"
KY-MKN-80240 6439 6199 203 11/2"-3" 1"
