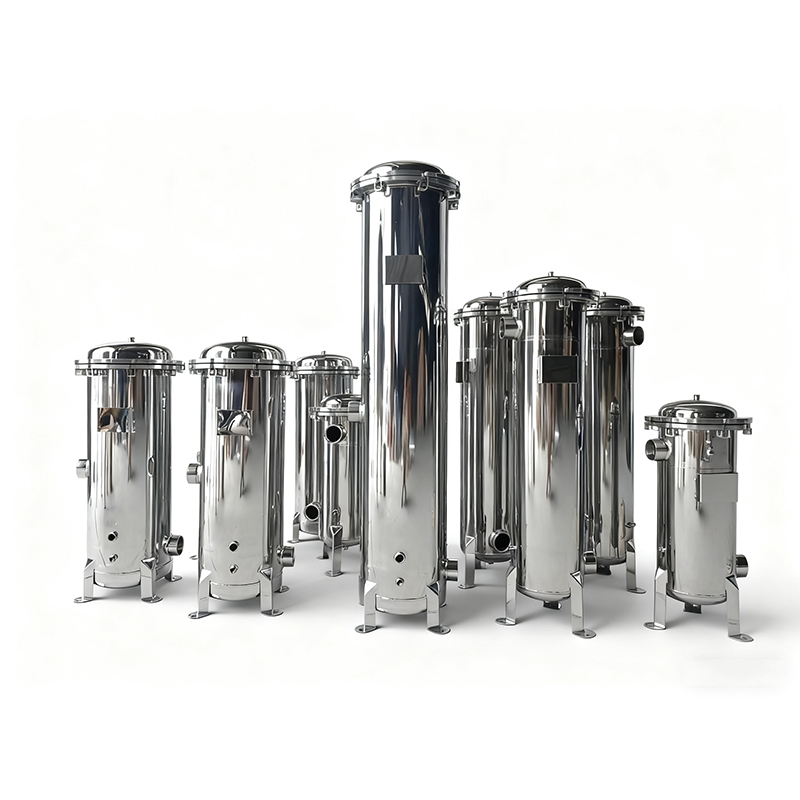

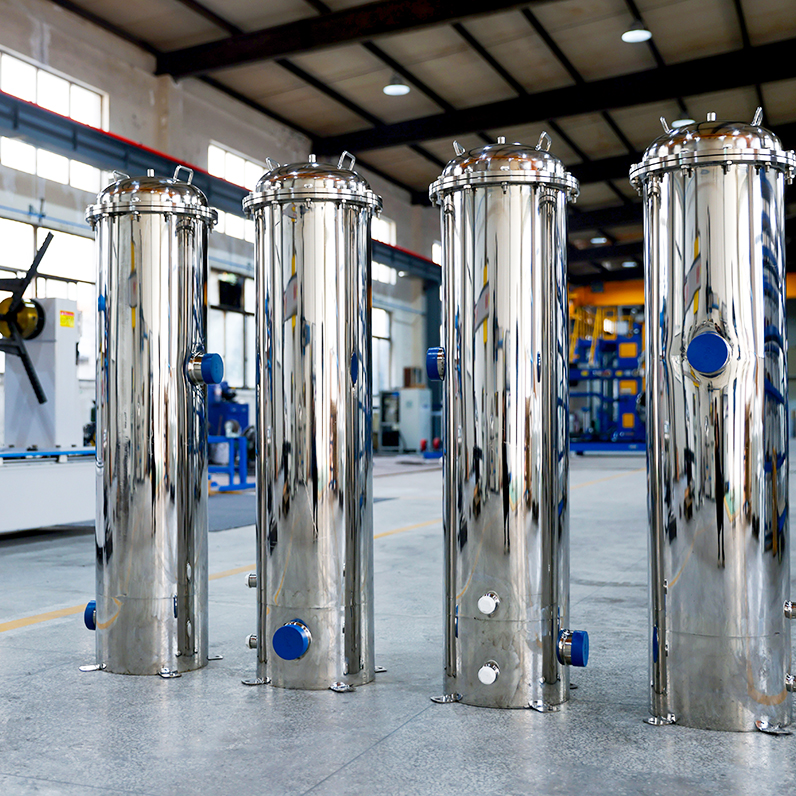

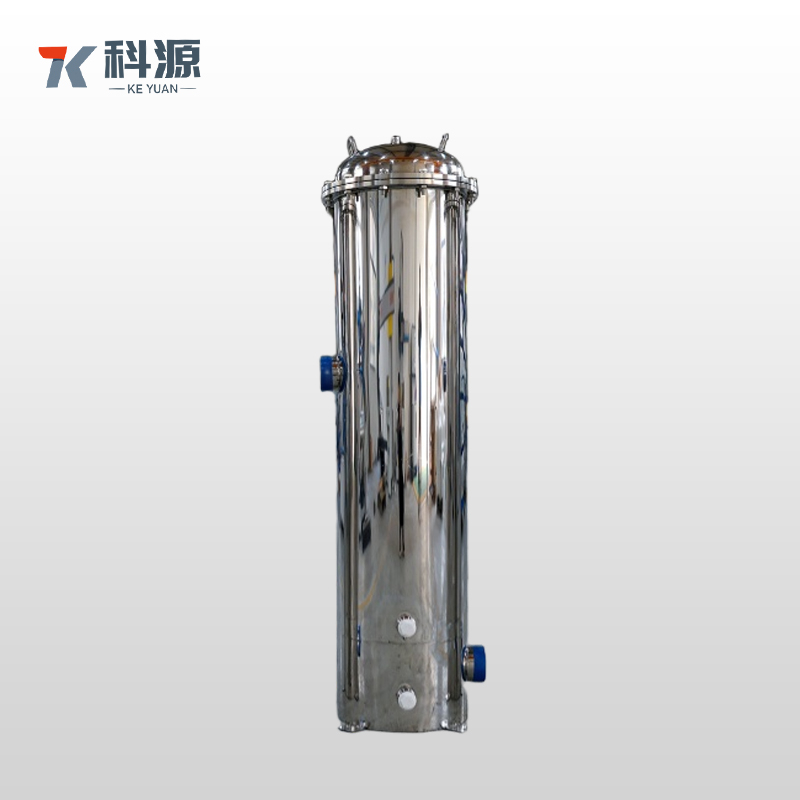

Precision Filter-flange type

Model:
KY-FL-JM10-40''

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Specifications

Tank material: SUS304, SUS316L

Design pressure: 0.6Mpa (if greater than this pressure, please specify)

Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)

Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber

Interface method: Standard flange

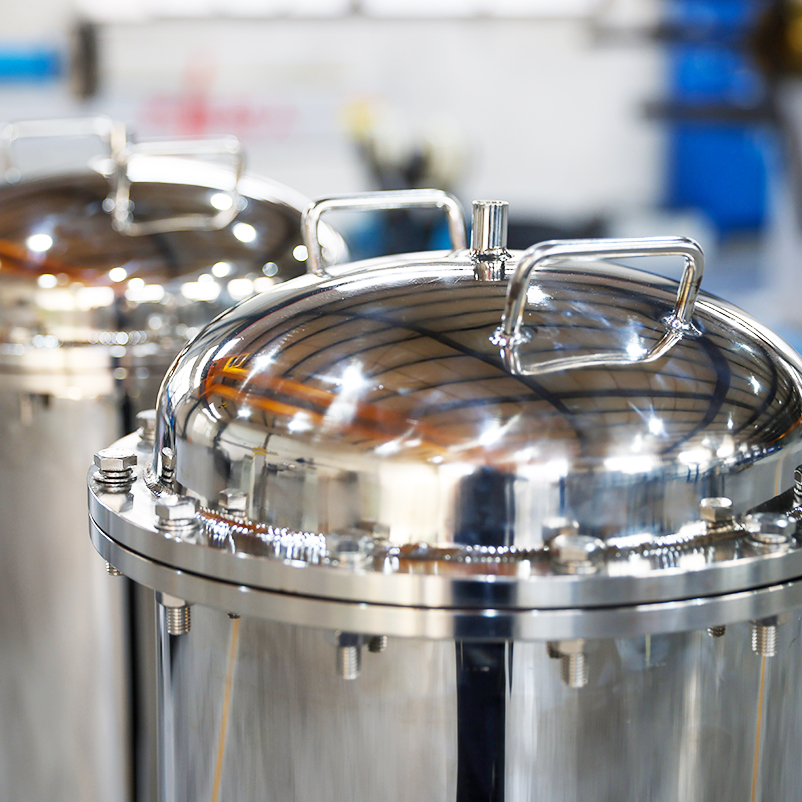

Opening method: Quick installation rocker arm type

Filtering accuracy: 0.1um-100um

Surface treatment: Polishing/matte sandblasting

Does it has legs: Yes

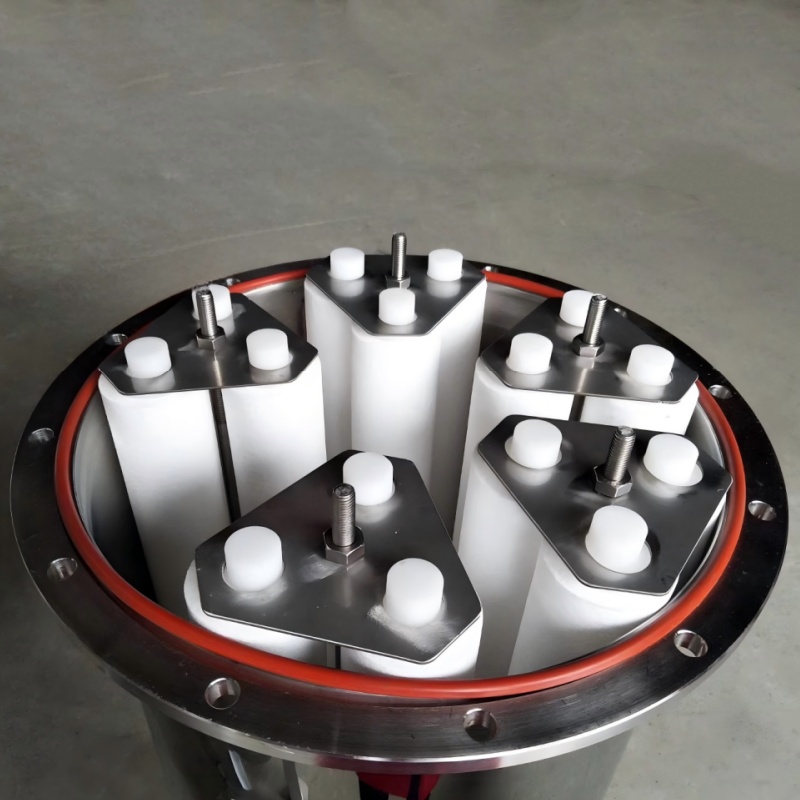

Filter cartridge form: Flat holding, 222/226 socket filter cartridge

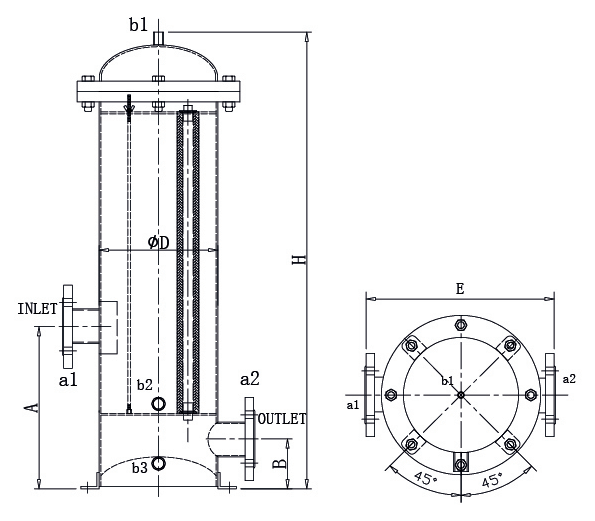

Model	No.of filter cartridges(pcs)	Length of filter cartridges	A (mm)	B (mm)	H (mm)	D (mm)	E (mm)	Inlet/Outlet a1/a2	Discharge b2/b3	Pressure egauge b1
KY-FL-JM5-30”	5	30”	180	75	1060	∅200	360	DN40	1/2"	1/4"
KY-FL-JM5-40”	5	40”	180	75	1310	∅200	360	DN40	1/2"	1/4"
KY-FL-JM7-30”	7	30”	220	120	1120	∅250	410	DN40	1/2"	1/4"
KY-FL-JM7-40”	7	40”	220	120	1370	∅250	410	DN50	1/2"	1/4"
KY-FL-JM10-30”	10	30”	600	150	1170	∅300	460	DN50	1/2"	1/4"
KY-FL-JM10-40”	10	40”	800	150	1420	∅300	460	DN50	1/2"	1/4"
KY-FL-JM15-30”	15	30”	600	150	1180	∅350	510	DN50	3/4"	1/4"
KY-FL-JM15-40”	15	40”	800	150	1430	∅350	510	DN65	3/4"	1/4"
KY-FL-JM20-30”	20	30”	600	150	1190	∅400	560	DN65	3/4"	1/4"
KY-FL-JM20-40”	20	40”	800	150	1440	∅400	560	DN65	3/4"	1/4"
KY-FL-JM25-30”	25	30”	600	150	1200	∅450	610	DN80	3/4"	1/4"
KY-FL-JM25-40”	25	40”	800	150	1450	∅450	610	DN80	3/4"	1/4"
KY-FL-JM30-30”	30	30”	600	150	1220	∅500	660	DN80	1"	1/4"
KY-FL-JM30-40”	30	40”	800	150	1470	∅500	660	DN80	1"	1/4"
KY-FL-JM36-30”	36	30”	600	150	1240	∅550	750	DN100	1"	1/4"
KY-FL-JM36-40”	36	40”	800	150	1490	∅550	750	DN100	1"	1/4"
KY-FL-JM45-30”	45	30”	700	200	1320	∅600	800	DN100	1"	1/4"
KY-FL-JM45-40”	45	40”	900	200	1570	∅600	800	DN100	1"	1/4"
KY-FL-JM55-30”	55	30”	700	200	1330	∅650	850	DN125	1"	1/4"
KY-FL-JM55-40”	55	40”	900	200	1580	∅650	850	DN125	1"	1/4"
KY-FL-JM65-30”	65	30”	700	200	1340	∅700	900	DN125	1"	1/4"
KY-FL-JM65-40”	65	40”	900	200	1590	∅700	900	DN150	1"	1/4"
KY-FL-JM75-30”	75	30”	700	200	1360	∅750	960	DN150	1"	1/4"
KY-FL-JM75-40”	75	40”	900	200	1610	∅750	960	DN150	1-1/2"	1/4"
KY-FL-JM80-30”	80	30”	700	200	1380	∅800	1010	DN150	1-1/2"	1/4"
KY-FL-JM80-40”	80	40”	900	200	1630	∅800	1010	DN175	1-1/2"	1/4"
KY-FL-JM90-30”	90	30”	700	200	1380	∅850	1060	DN175	1-1/2"	1/4"
KY-FL-JM90-40”	90	40”	900	200	1630	∅850	1060	DN175	1-1/2"	1/4"
KY-FL-JM100-30”	100	30”	700	200	1400	∅900	1110	DN200	1-1/2"	1/4"
KY-FL-JM100-40”	100	40”	900	200	1650	∅900	1110	DN200	1-1/2"	1/4"
KY-FL-JM120-30”	120	30”	800	250	1480	∅1000	1240	DN200	1-1/2"	1/4"
KY-FL-JM120-40”	120	40”	1000	250	1730	∅1000	1240	DN200	1-1/2"	1/4"
KY-FL-JM140-30”	140	30”	800	250	1510	∅1100	1340	DN250	2"	1/4"
KY-FL-JM140-40”	140	40”	1000	250	1760	∅1100	1340	DN250	2"	1/4"
KY-FL-JM160-30”	160	30”	800	250	1560	∅1200	1440	DN250	2"	1/4"
KY-FL-JM160-40”	160	40”	1000	250	1810	∅1200	1440	DN250	2"	1/4"
