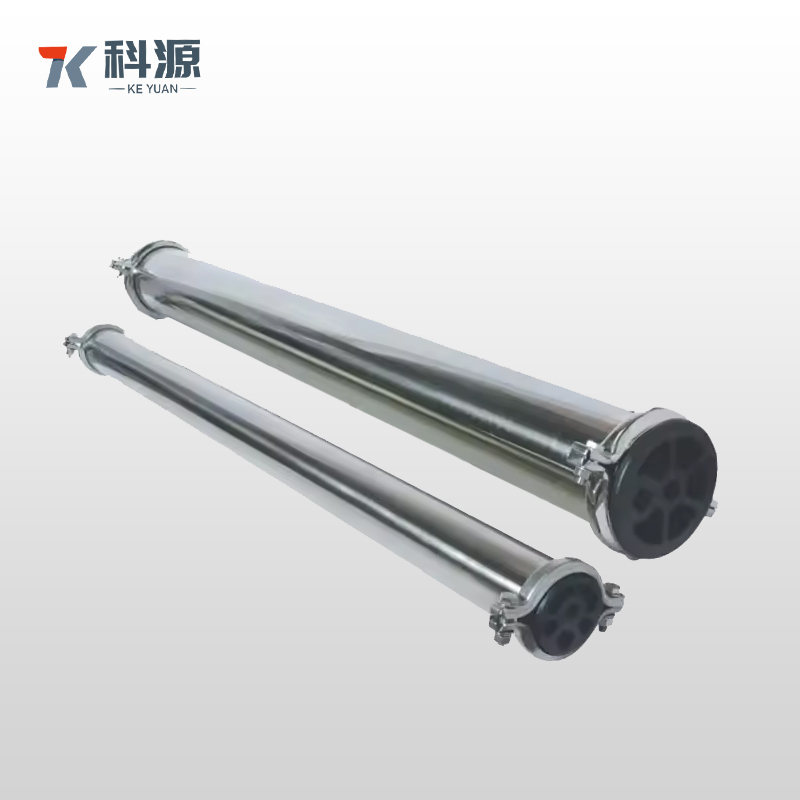

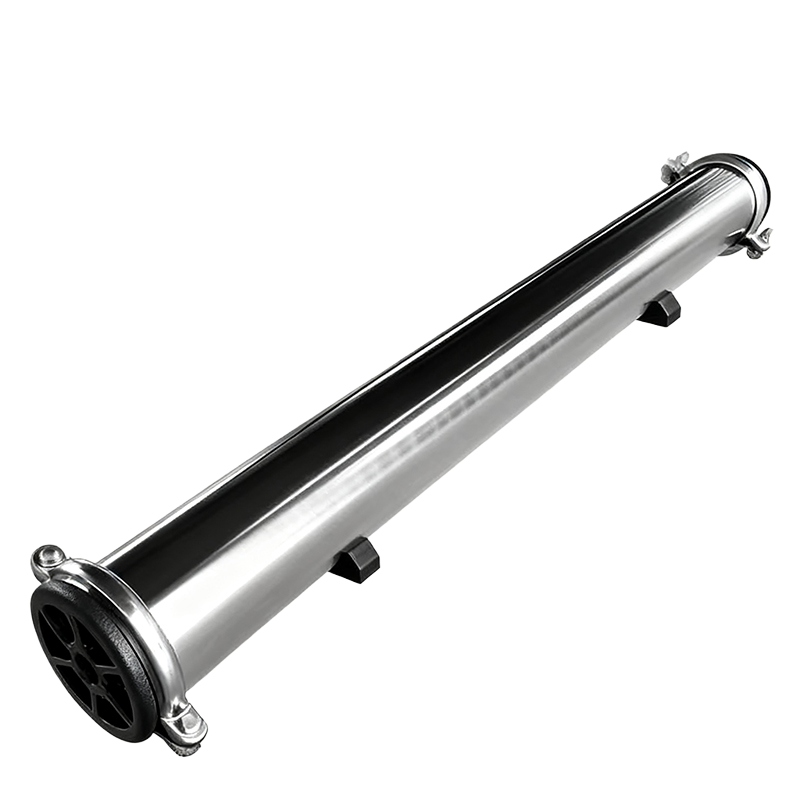

4'' Membrane Housing- ABS Type

  • Equipped with 4021/4040 standard membrane element, can hold 1-4 pieces

Availability:
Quantity:
Inquire Add to Basket


Parameter Overview:


2

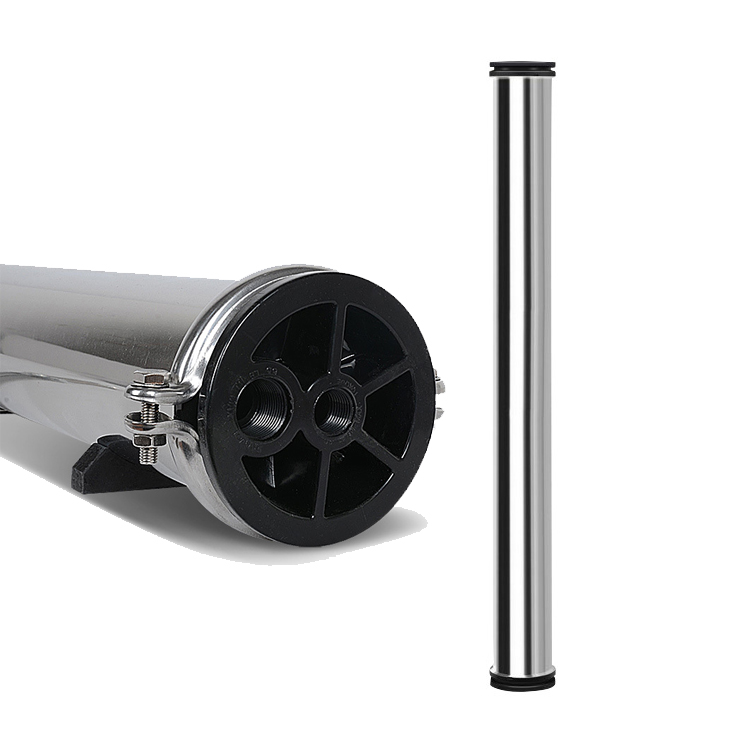

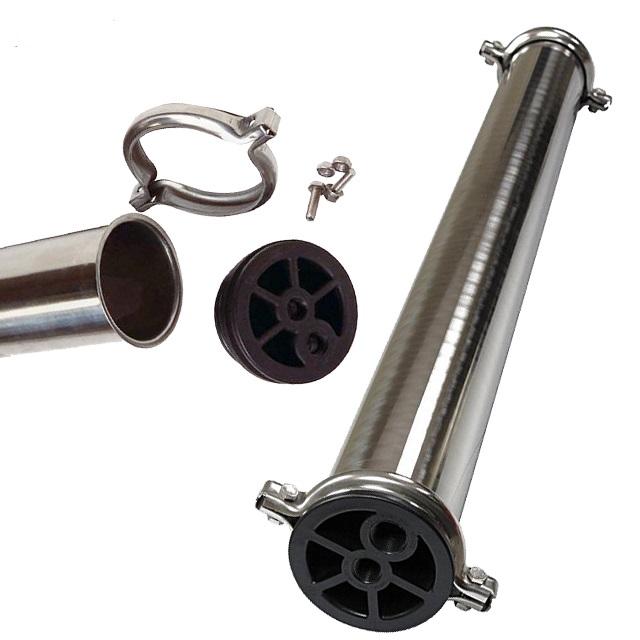

ABS end cap

Work pressure: 300PSI

Maximum working temperature: 90 ℃

Shell material: Stainless steel 304/316L

End cap material: ABS

O-ring material: EPDM, NSF grade

Surface treatment: mechanical polishing (320 mesh, Ra<0.6)

Model: Equipped with 4021/4040 standard membrane element, can hold 1-4 pieces

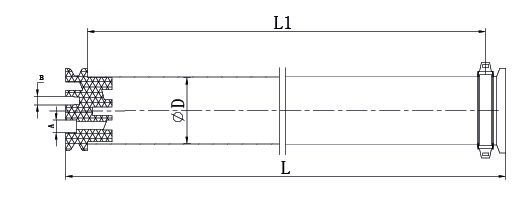

Model

L

(mm)

 L1
(mm)		 D
(mm)

A

In

 B
Out
KY-MKA-4021 605 545 102 1/2”3/4" 1/2"
KY-MKA-4040 1087 1027 102 1/2”3/4" 1/2"
KY-MKA-4080 2103 2043 102 3/4" 1/2"
KY-MKA-40120 3119 3059 102 3/4" 1/2"
KY-MKA-40160 4135 4075 102 3/4" 1/2"
