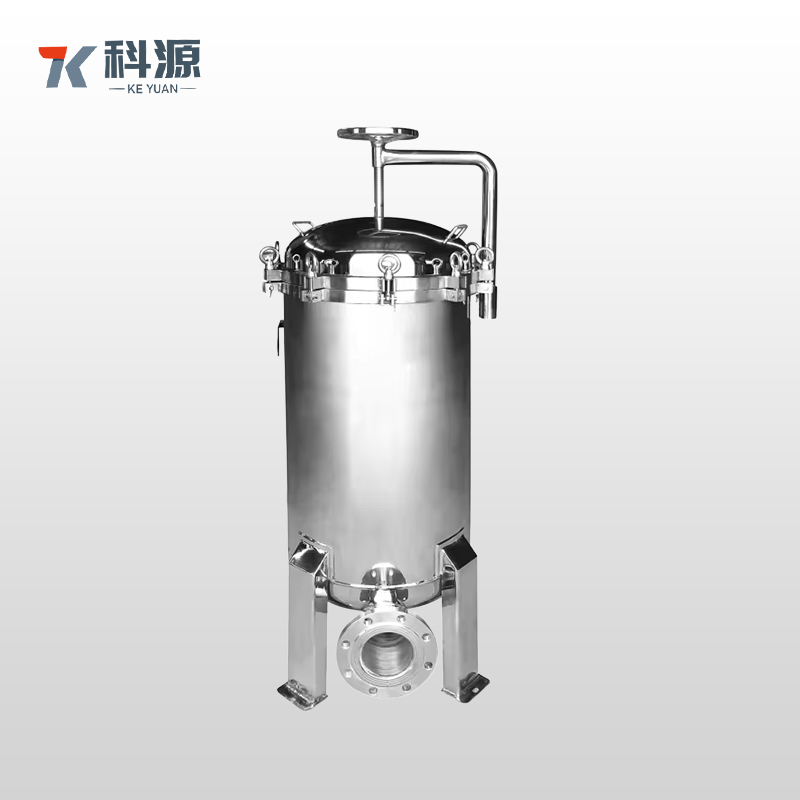

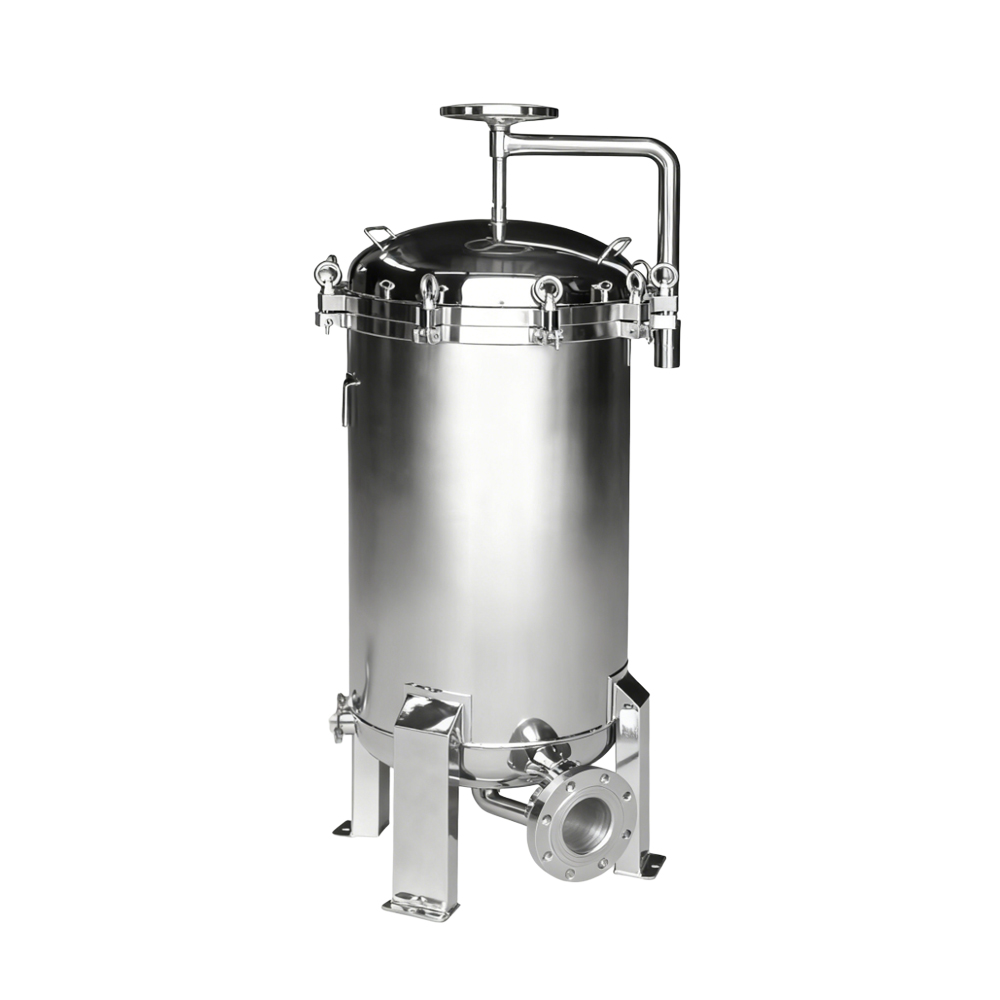

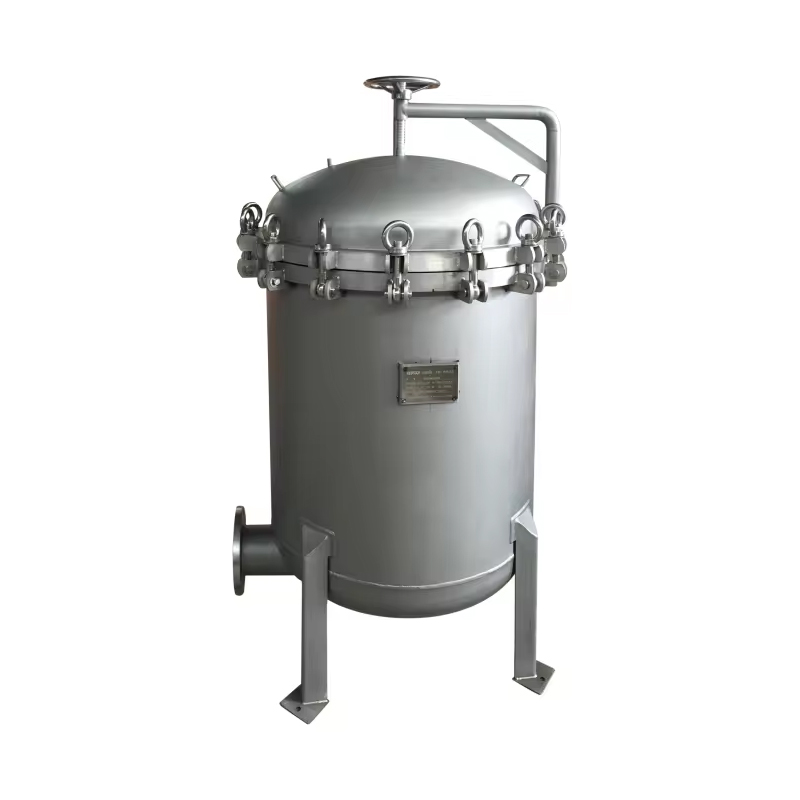

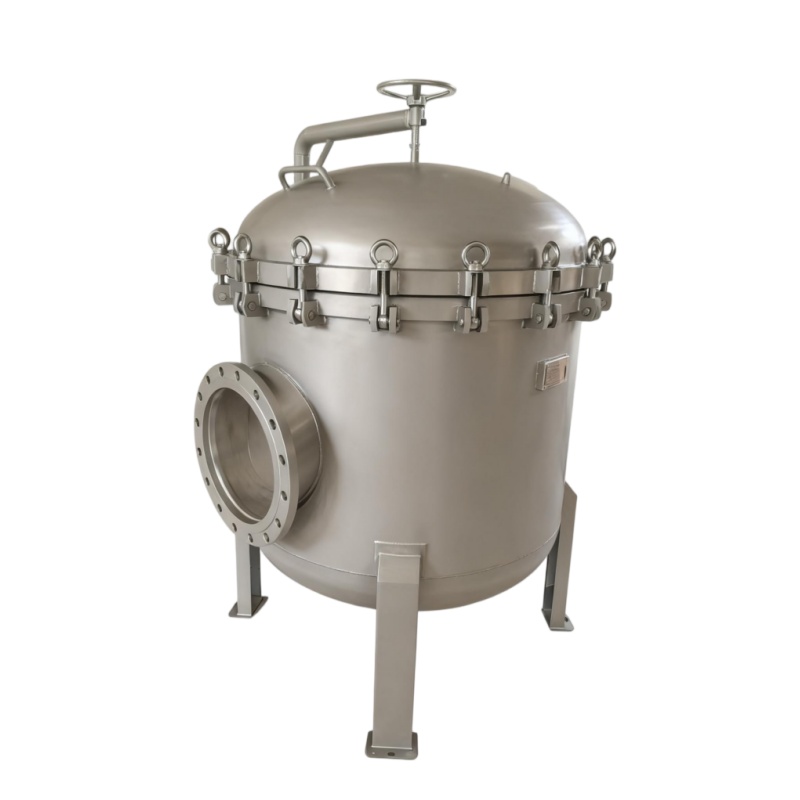

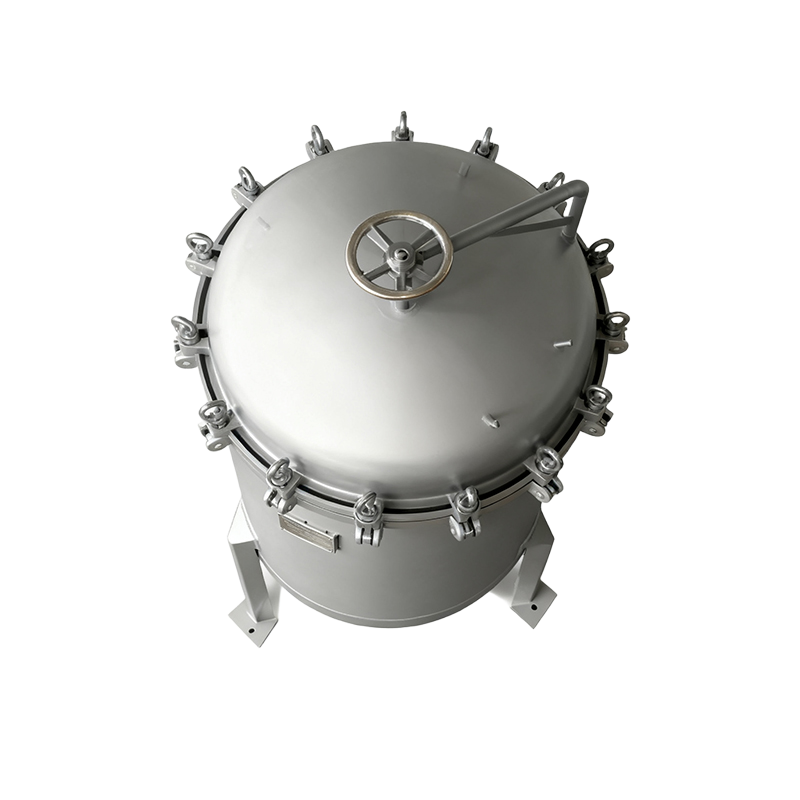

Multi Bag Filter-quick Open Rocker

  • KY-KZ-DS2-2#

Availability:
Quantity:


Technical Specifications


Design pressure: 0.6Mpa (if greater than this pressure, please specify)

Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)

Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber

Interface method: Threaded, standard flange

Water inlet method: side inlet and side outlet, side inlet and bottom outlet/upper inlet and side outlet, up inlet and down outlet

Filtering accuracy: 1-800um

Design flow rate: 60-540m ³/h (multiple bags)

Surface treatment: Polishing/matte sandblasting

Leg support methods: Fixed and adjustable

Number of filter bags: 1 #/2 #/3 #/4 # Multiple bags, with a maximum capacity of 40 bags per machine

Tank material: SUS304, SUS316L

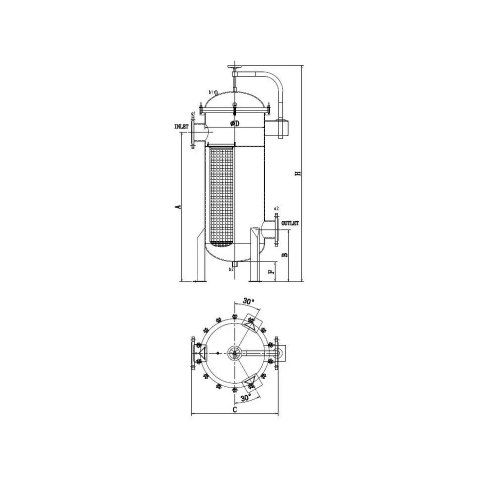

ModelA
(mm)
B
(mm)
H
(mm)
D
(mm)
F
(mm)
C
(mm)
Inlet/Outlet
a1/a2
Pressure housing
b1

Discharge

/emptying

b2
Theoretic Flow
m3/h
No.of filter bags
KY-KZ-DS2-2#10803201400∅400120560DN65G1/4"G1"602
KY-KZ-DS3-2#11003501430∅450120610DN80G1/4"G1"903
KY-KZ-DS4-2#11904001540∅500150660DN100G1/4"G1"1204
KY-KZ-DS5-2#12004001560∅550150710DN125G1/4"G1"1505
KY-KZ-DS6-2#12504501630∅600150760DN125G1/4"G1"1505
KY-KZ-DS7-2#13504501740∅650150850DN150G1/4"G2"1806
KY-KZ-DS8-2#13805001780∅700150900DN150G1/4"G2"2408
KY-KZ-DS9-2#14605001920∅750150950DN200G1/4"G2"2709
KY-KZ-DS10-2#14705501950∅8001501000DN200G1/4"G2"30010
KY-KZ-DS12-2#15506002050∅9001501140DN250G1/4"G2"36012
KY-KZ-DS16-2#15706002100∅10001501240DN300G1/4"G2"48016
KY-KZ-DS18-2#16006502150∅11001501340DN300G1/4"G2"54018
