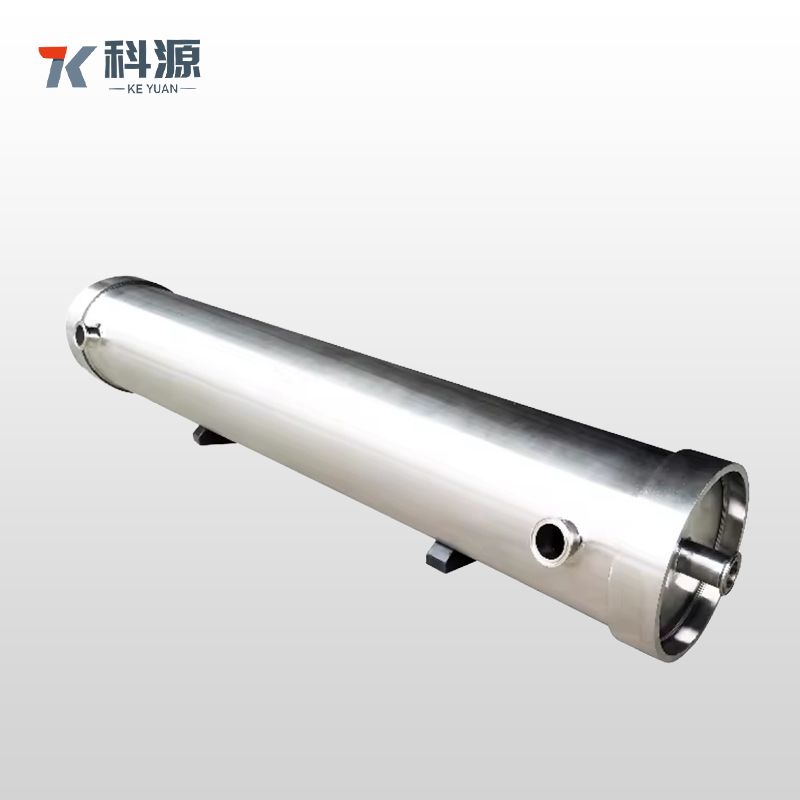

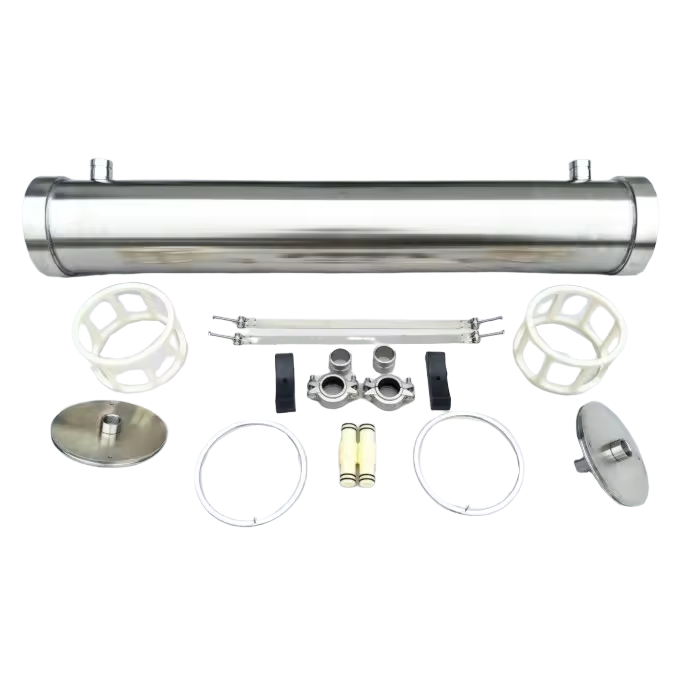

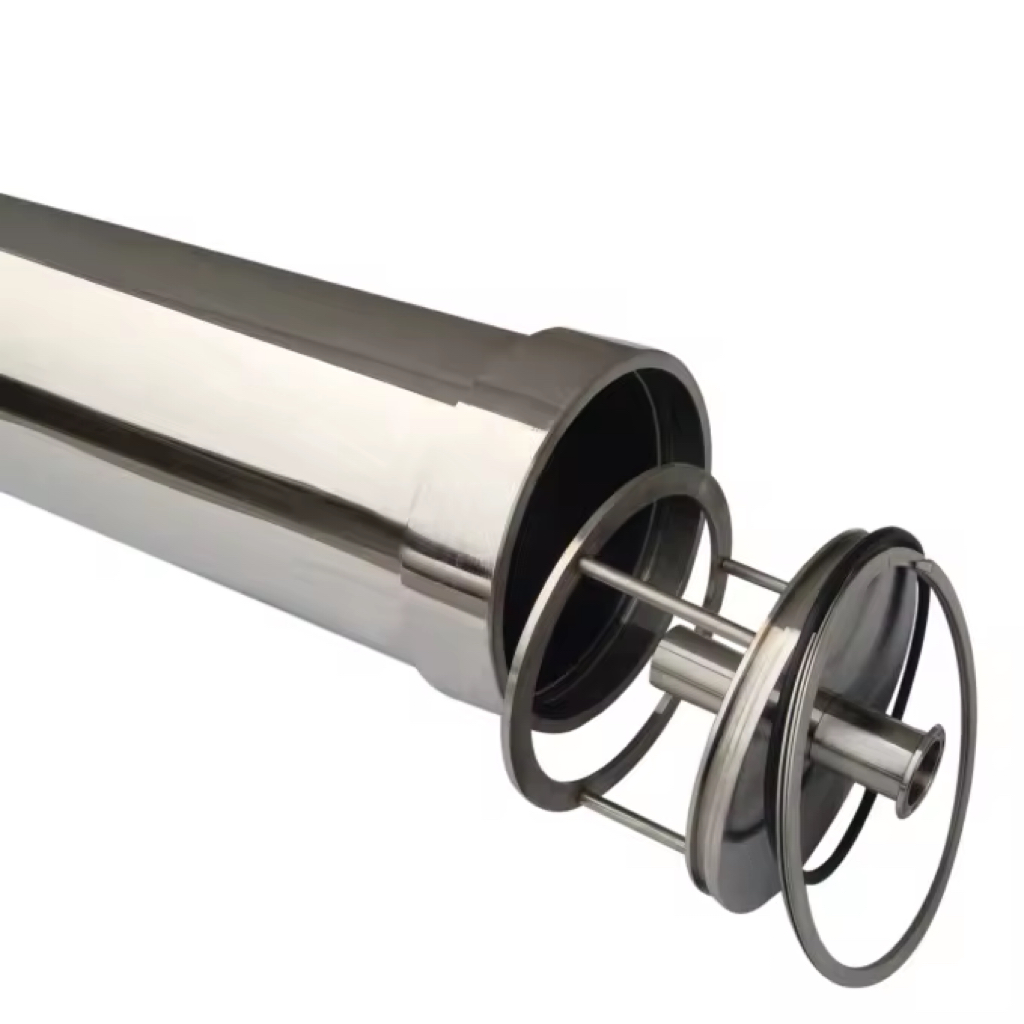

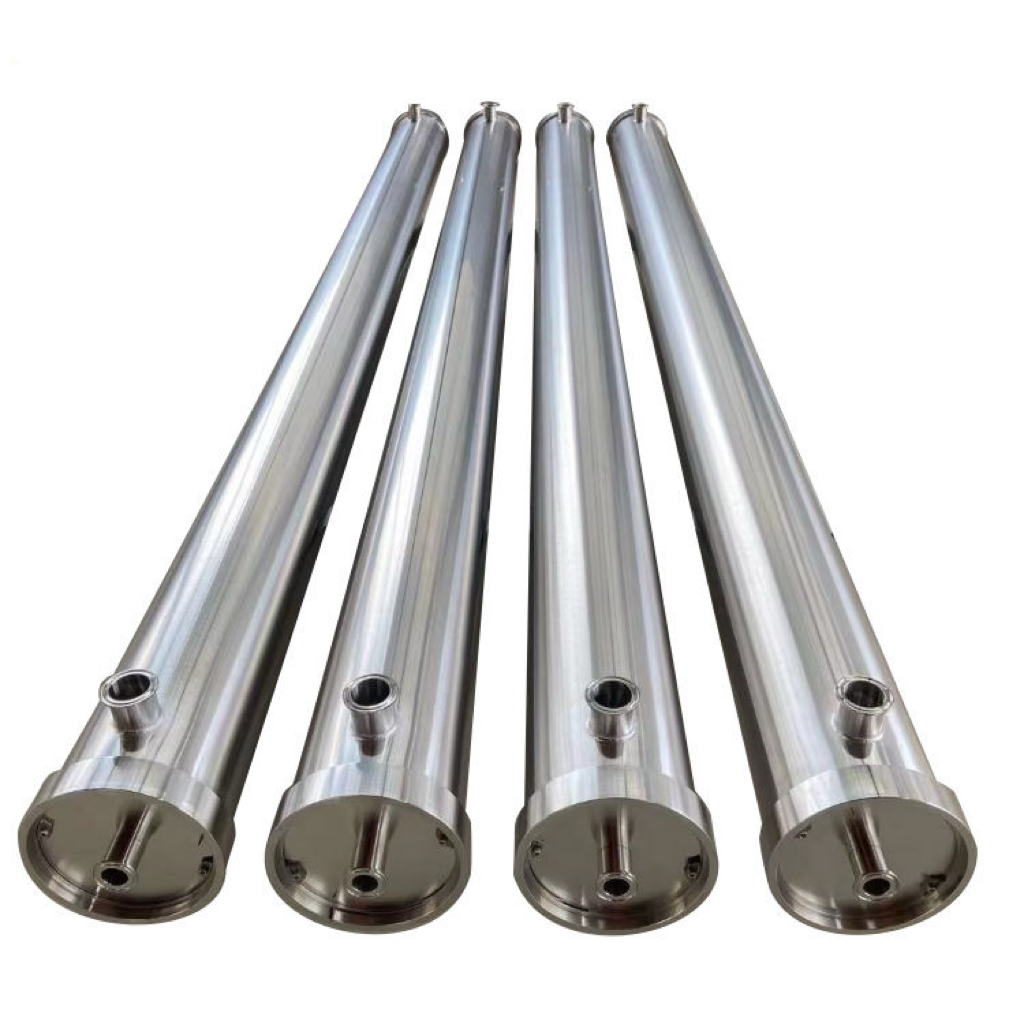

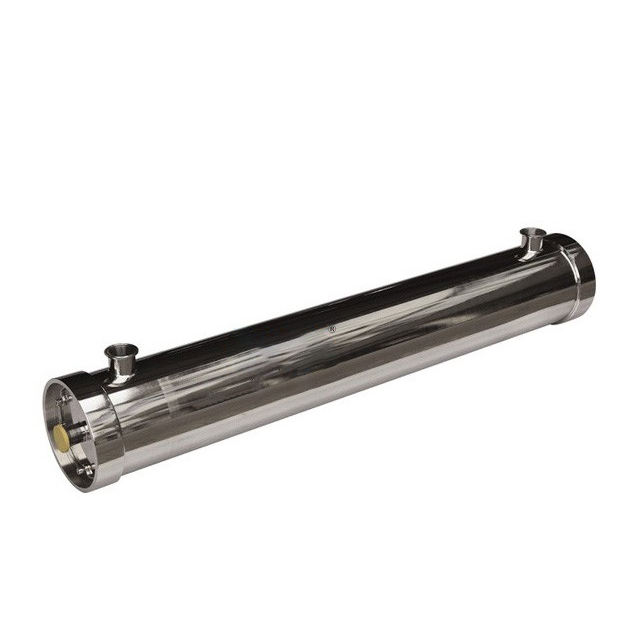

8'' Membrane Housing- Built in Type

  • Equipped with 8040 standard membrane housing, can hold 1-6 pieces

Availability:
Quantity:


Parameter Overview:


3

Side inlet, 8-inch membrane housing built-in type

Work pressure: 300PSI/600PSI

Maximum working temperature: 90 ℃

Shell material: Stainless steel 304/316L

End cap material: stainless steel 304/316L

O-ring material: EPDM, NSF grade

Surface treatment: mechanical polishing (320 mesh, Ra<0.6)

Model: Equipped with 8040 standard membrane housing, can hold 1-6 pieces

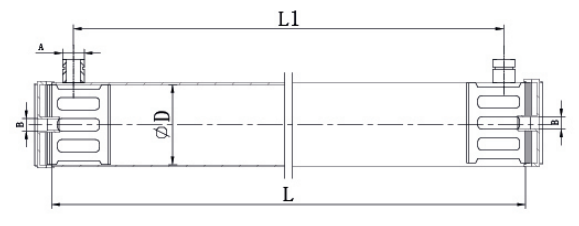

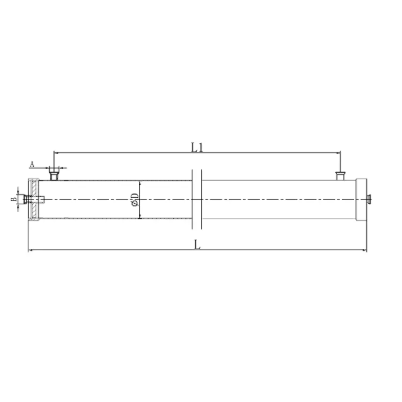

Model L
(mm)
L1
(mm)
D
(mm)
A
In
B
Out
KY-MKN-8040 1359 1119 ∅203 11/2"-3" 1"
KY-MKN-8080 2375 2135 ∅203 11/2"-3" 1"
KY-MKN-80120 3391 3151 ∅203 11/2"-3" 1"
KY-MKN-80160 4407 4167 ∅203 11/2"-3" 1"
KY-MKN-80200 5423 5183 ∅203 11/2"-3" 1"
KY-MKN-80240 6439 6199 ∅203 11/2"-3" 1"
