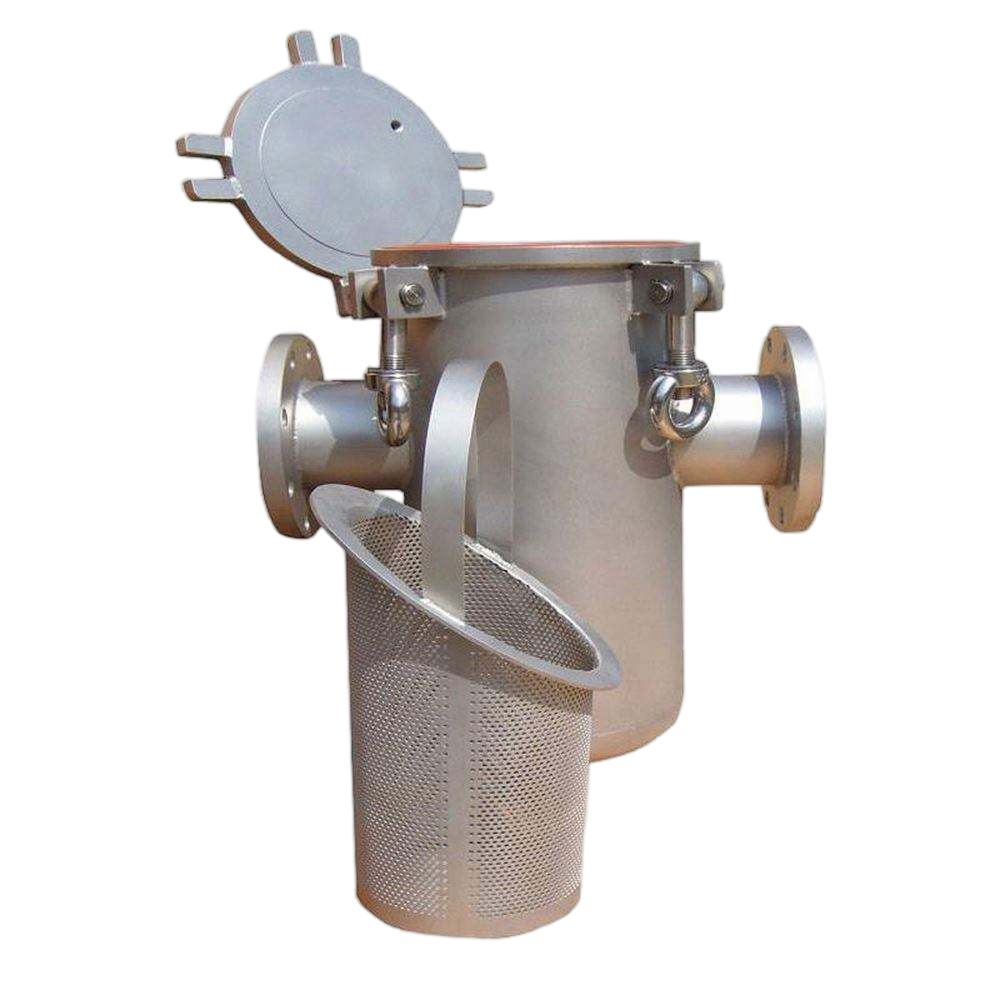

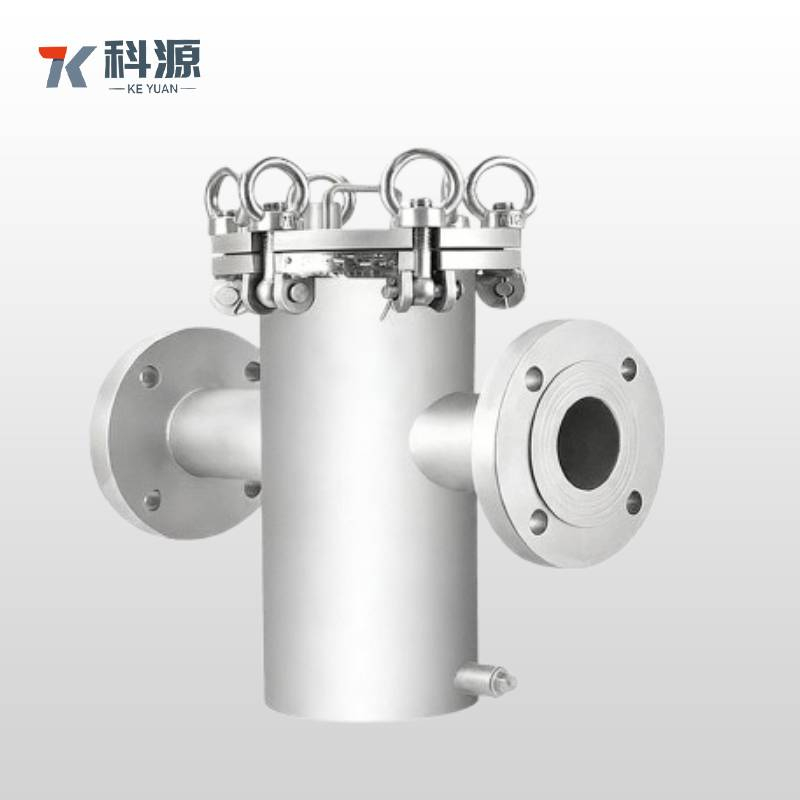

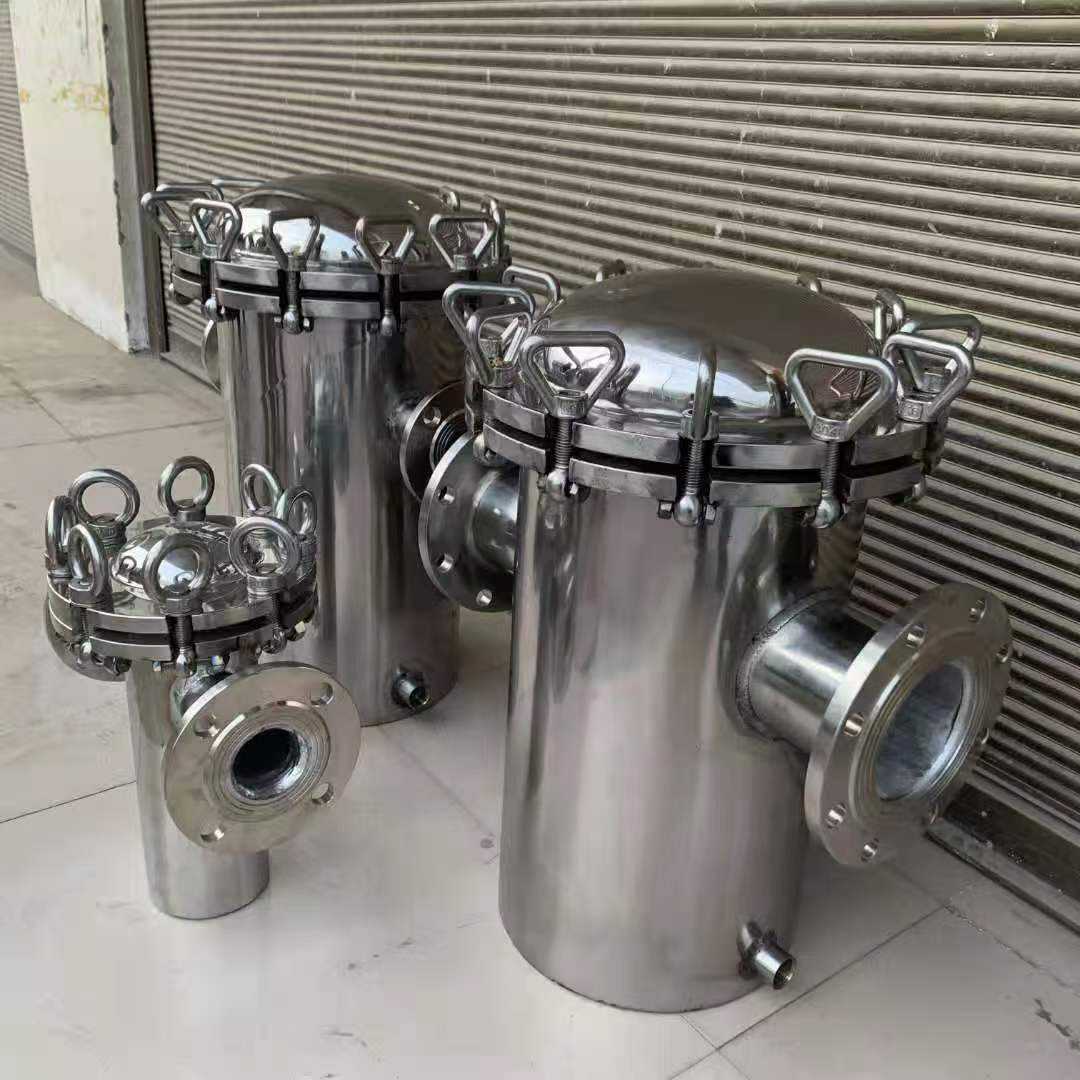

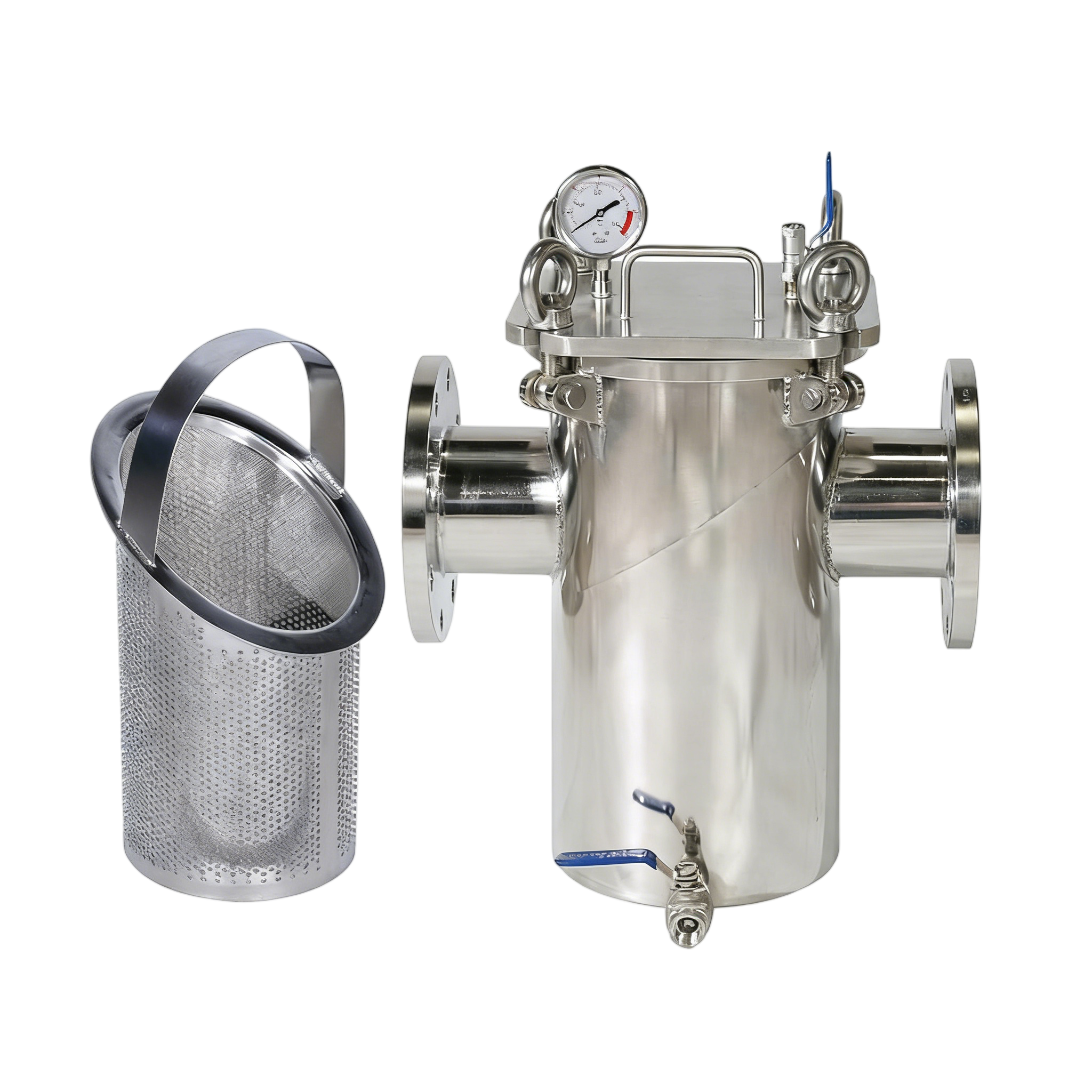

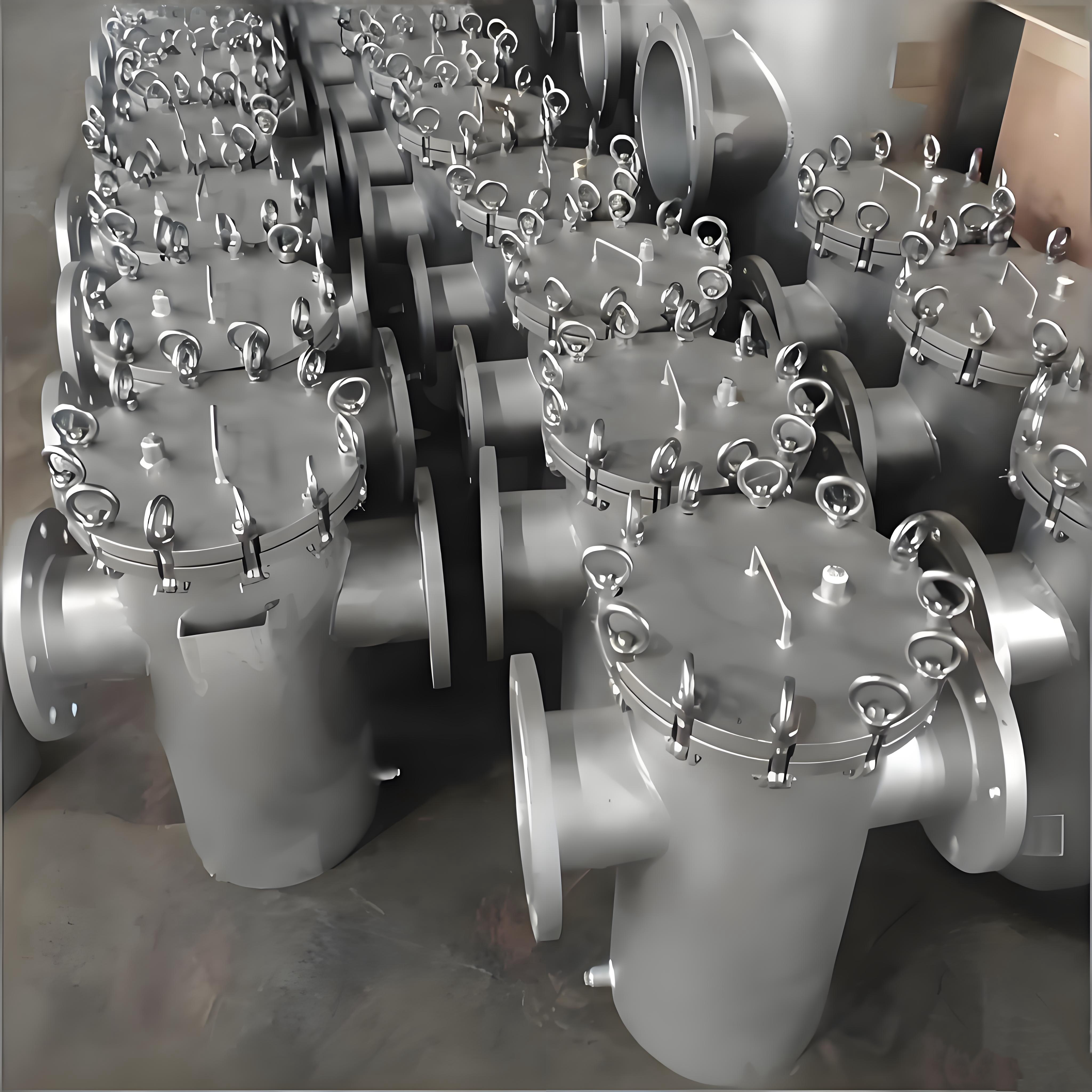

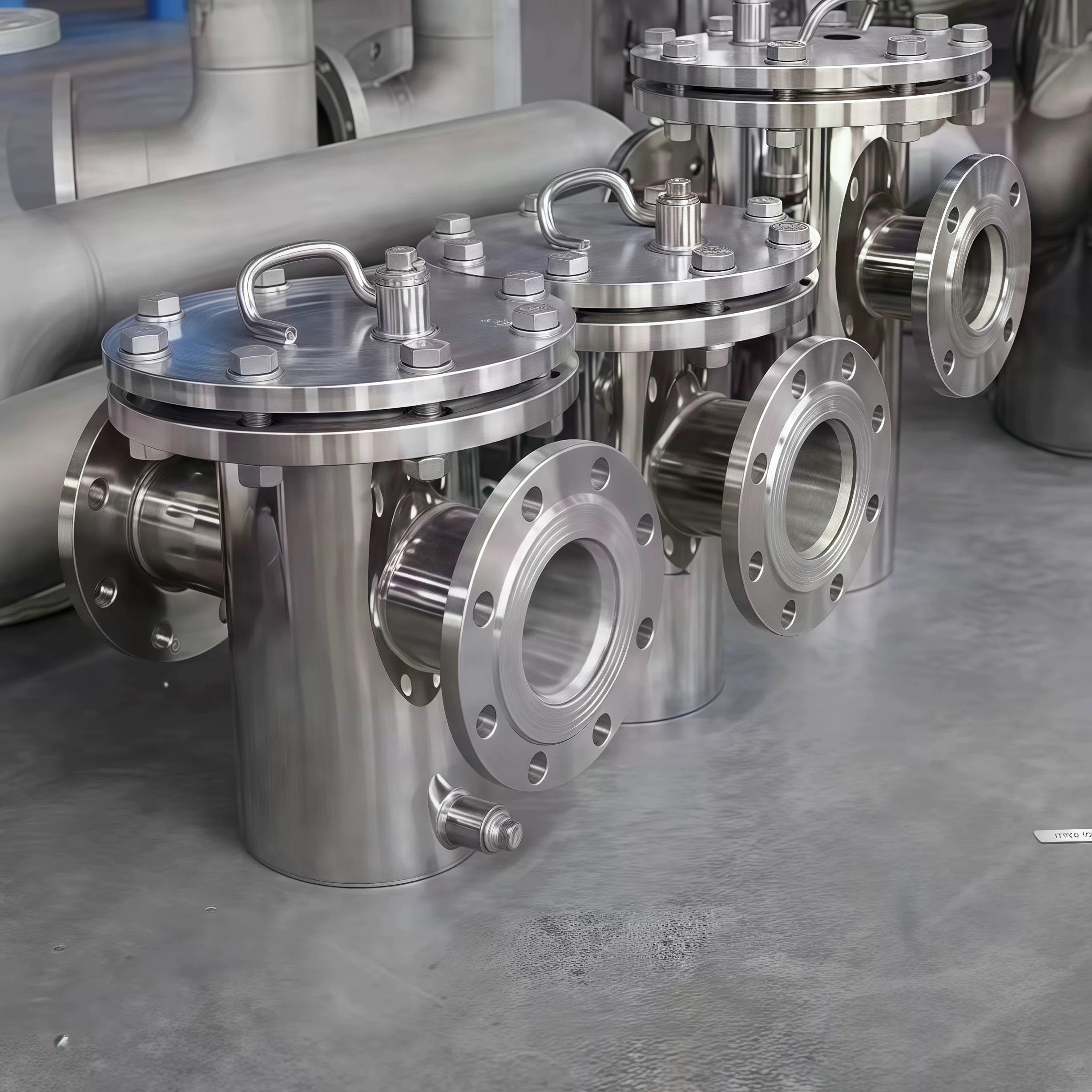

The basket filter is mainly composed of connecting pipes, a main pipe, a fiter basket, flanges, flange covers, and fasteners. When the liquid enters the filter basket through the main pipe, solid impurity particles are blocked inside the filter basket, while clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is needed, unscrew the bottom plug of the main pipe, drain the liquid, remove the flange cover, clean it,and reinstall it. Therefore,it is extremely convenient to use and maintain.
| Model | Inlet/Outleta1/a2 | L(mm) | H(mm) | E(mm) | D(mm) | Drain c1 | Pressure gauge b1 |
| KY-LSP25 | 25 | 220 | 260 | 160 | Φ130 | G1/2” | G1/4” |
| KY-LSP32 | 32 | 230 | 270 | 160 | Φ130 | G1/2” | G1/4” |
| KY-LSP40 | 40 | 280 | 300 | 170 | Φ150 | G1/2” | G1/4” |
| KY-LSP50 | 50 | 280 | 300 | 170 | Φ150 | G3/4” | G1/4” |
| KY-LSP65 | 65 | 300 | 360 | 210 | Φ150 | G3/4” | G1/4” |
| KY-LSP80 | 80 | 350 | 400 | 250 | Φ200 | G3/4” | G1/4” |
| KY-LSP100 | 100 | 400 | 470 | 300 | Φ200 | G3/4” | G1/4” |
| KY-LSP125 | 125 | 480 | 550 | 360 | Φ250 | G1” | G1/4” |
| KY-LSP150 | 150 | 500 | 630 | 420 | Φ250 | G1” | G1/4” |
| KY-LSP200 | 200 | 560 | 780 | 530 | Φ300 | G1” | G1/4” |
| KY-LSP250 | 250 | 660 | 930 | 640 | Φ400 | G1” | G1/4” |
| KY-LSP300 | 300 | 750 | 1200 | 840 | Φ450 | G1” | G1/4” |
| KY-LSP400 | 400 | 800 | 1500 | 950 | Φ500 | G1” | G1/4” |
Key Features & Advantages
1. Superior Protection & Efficiency
Equipment Protection: Effectively prevents damage to pumps, valves, spray nozzles, and meters from debris and particulate matter
High Flow Capacity: Large basket surface area and optimized housing design support high flow rates with minimal pressure drop (typically <2 PSI clean)
Visual Inspection: Transparent sight glass option (on applicable models) allows visual monitoring of basket condition without disassembly
2. Easy Maintenance & Operation
Quick Access Design: Top-opening configuration allows basket inspection and cleaning in minutes
Tool-Free Basket Removal: Integrated handle allows easy lifting of basket without special tools
Complete Drainage: Bottom drain valve facilitates easy flushing and sediment removal
3. Versatile Application Design
Multiple Installation Options: Suitable for horizontal or vertical piping (inlet position varies)
Flexible Connection Styles: Available with threaded, flanged, or sanitary connections
Custom Configurations: Special sizes, materials, and pressure ratings available
Industry Applications
Water Treatment
Cooling Water: Protection of cooling tower nozzles and heat exchangers
Process Water: Intake filtration for manufacturing water systems
Irrigation Systems: Protection of sprinkler heads and drip emitters
Oil & Gas
Fuel Oil Filtration: Protection of burner nozzles and fuel systems
Produced Water: Solids removal in oilfield water treatment
Pipeline Protection: Station inlet filtration for pipeline systems
Food & Beverage
Process Water: Protection of heat exchangers and processing equipment
CIP Systems: Return line filtration for cleaning systems
Ingredient Transfer: Protection of transfer pumps and meters
Manufacturing
Coolant Systems: Protection of machining center pumps and nozzles
Paint Systems: Filtration of paint and coating materials
HVAC Systems: Chilled and hot water system protection
Installation & Maintenance
Easy Installation
Flexible Orientation: Can be installed horizontally or vertically
Clear Flow Direction: Clearly marked inlet and outlet ports
Minimal Support: Requires only standard piping support
Simple Maintenance
Quick Inspection: Top cover removal provides full access to basket
Easy Cleaning: Basket can be removed, cleaned, and reinserted quickly
Seal Replacement: Standard O-rings or gaskets are easily replaced
Safety Features
Pressure Relief: Optional safety relief devices available
Lockout Capability: Accommodates lockout/tagout devices
Warning Tags: Clear operating instructions and warnings
Proven Reliability: Simple, time-tested design with decades of successful operation
High Value: Low initial cost with minimal maintenance requirements
Flexible Application: Suitable for a wide range of industries and fluids
Easy Maintenance: Designed for quick inspection and cleaning
Durable Construction: Built to withstand demanding industrial environments
