Customized
Keyuan
| Quantity: | |
|---|---|
Technical Specifications
Design pressure: 0.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)
Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber
Interface method: Threaded, standard flange
Water inlet method: side inlet and side outlet, side inlet and bottom outlet/upper inlet and side outlet, up inlet and down outlet
Filtering accuracy: 1-800um
Design flow rate: 60-540m ³/h (multiple bags)
Surface treatment: Polishing/matte sandblasting
Leg support methods: Fixed and adjustable
Number of filter bags: 1 #/2 #/3 #/4 # Multiple bags, with a maximum capacity of 40 bags per machine
Tank material: SUS304, SUS316L
Filter Bag Material:Polyester, Polypropylene, Nylon, or PTFE felt
Key Features & Benefits
Premium Construction: Fabricated from high-grade 304 or 316L stainless steel, the filter housing offers exceptional corrosion resistance, mechanical strength, and longevity. It is suitable for use with water, chemicals, oils, solvents, and food-grade fluids.
High-Efficiency Filtration: Utilizes reusable or disposable filter bags (typically from 1 to 800 microns) to achieve reliable particle removal. Ensures consistent flow quality and protects sensitive process components.
Easy Operation & Maintenance: Features a user-friendly, quick-opening clamp or bolted lid design for fast and safe bag replacement. The simplified internal design allows for easy cleaning with minimal downtime, reducing labor costs.
Seal Reliability: Equipped with a high-quality, chemical-resistant gasket (e.g., EPDM, Silicone, Viton) to prevent bypass and ensure leak-proof operation under varying pressures.
Cost-Effective Filtration: Bag filters provide a larger dirt-holding capacity compared to some cartridge filters, leading to longer service cycles and lower consumable costs. Filter bags are often cleanable for reuse.
Versatile Configuration: Available in various port sizes (e.g., 1", 1.5", 2"), flow rates, and pressure ratings to fit specific pipeline requirements. Options include pressure gauges, vent valves, and drip trays.
Wide Application Range: Ideal for industries including chemical processing, plastics, paints & coatings, food & beverage, pharmaceuticals, metalworking coolants, and water treatment.

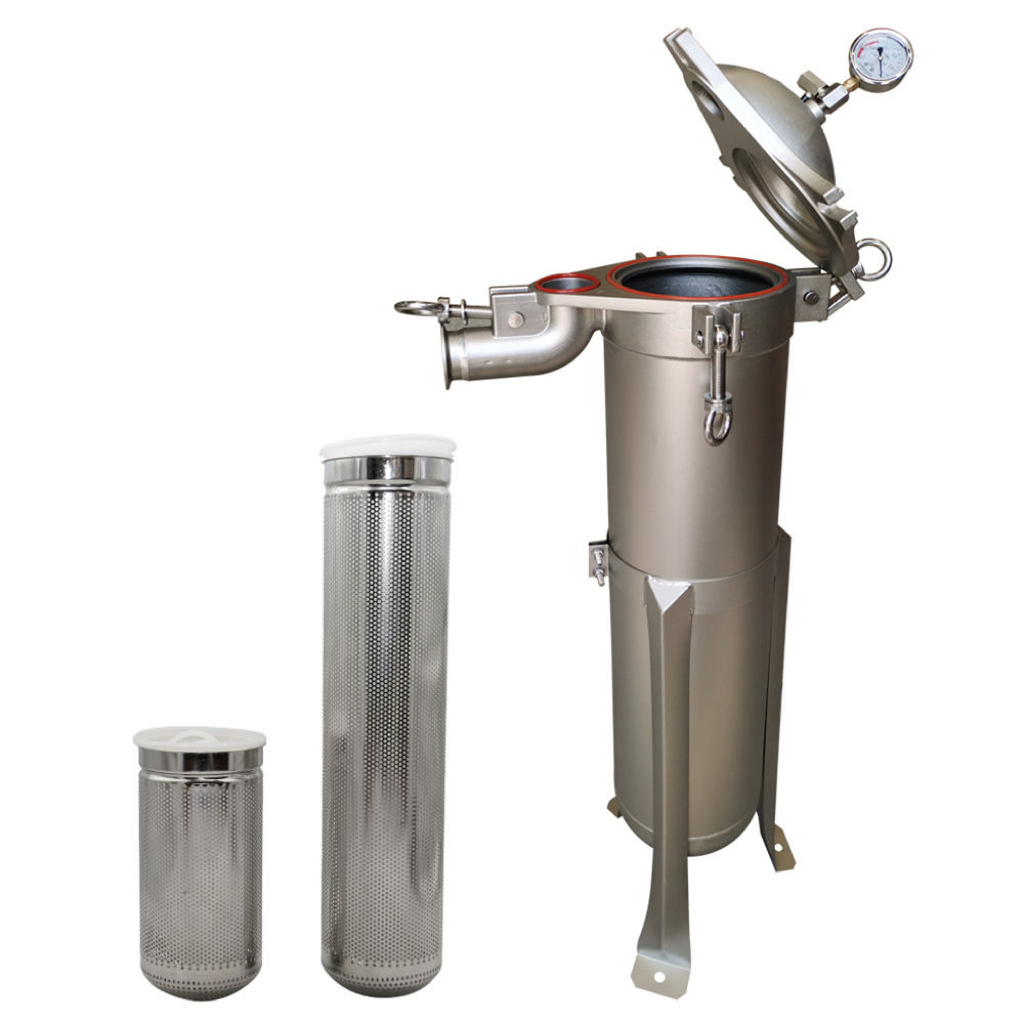

Why Choose Our Single Bag Filter?
Our filter combines industrial-grade durability with operational simplicity. It is designed for reliability in demanding environments, ensuring you achieve the desired filtration efficiency while controlling long-term operating expenses. It is the go-to choice for batch processes, pilot plants, and as a pre-filter for critical applications.
For specific technical details, sizing, or custom configurations, please contact our engineering team.
Technical Specifications
Design pressure: 0.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)
Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber
Interface method: Threaded, standard flange
Water inlet method: side inlet and side outlet, side inlet and bottom outlet/upper inlet and side outlet, up inlet and down outlet
Filtering accuracy: 1-800um
Design flow rate: 60-540m ³/h (multiple bags)
Surface treatment: Polishing/matte sandblasting
Leg support methods: Fixed and adjustable
Number of filter bags: 1 #/2 #/3 #/4 # Multiple bags, with a maximum capacity of 40 bags per machine
Tank material: SUS304, SUS316L
Filter Bag Material:Polyester, Polypropylene, Nylon, or PTFE felt
Key Features & Benefits
Premium Construction: Fabricated from high-grade 304 or 316L stainless steel, the filter housing offers exceptional corrosion resistance, mechanical strength, and longevity. It is suitable for use with water, chemicals, oils, solvents, and food-grade fluids.
High-Efficiency Filtration: Utilizes reusable or disposable filter bags (typically from 1 to 800 microns) to achieve reliable particle removal. Ensures consistent flow quality and protects sensitive process components.
Easy Operation & Maintenance: Features a user-friendly, quick-opening clamp or bolted lid design for fast and safe bag replacement. The simplified internal design allows for easy cleaning with minimal downtime, reducing labor costs.
Seal Reliability: Equipped with a high-quality, chemical-resistant gasket (e.g., EPDM, Silicone, Viton) to prevent bypass and ensure leak-proof operation under varying pressures.
Cost-Effective Filtration: Bag filters provide a larger dirt-holding capacity compared to some cartridge filters, leading to longer service cycles and lower consumable costs. Filter bags are often cleanable for reuse.
Versatile Configuration: Available in various port sizes (e.g., 1", 1.5", 2"), flow rates, and pressure ratings to fit specific pipeline requirements. Options include pressure gauges, vent valves, and drip trays.
Wide Application Range: Ideal for industries including chemical processing, plastics, paints & coatings, food & beverage, pharmaceuticals, metalworking coolants, and water treatment.
Why Choose Our Single Bag Filter?
Our filter combines industrial-grade durability with operational simplicity. It is designed for reliability in demanding environments, ensuring you achieve the desired filtration efficiency while controlling long-term operating expenses. It is the go-to choice for batch processes, pilot plants, and as a pre-filter for critical applications.
For specific technical details, sizing, or custom configurations, please contact our engineering team.
