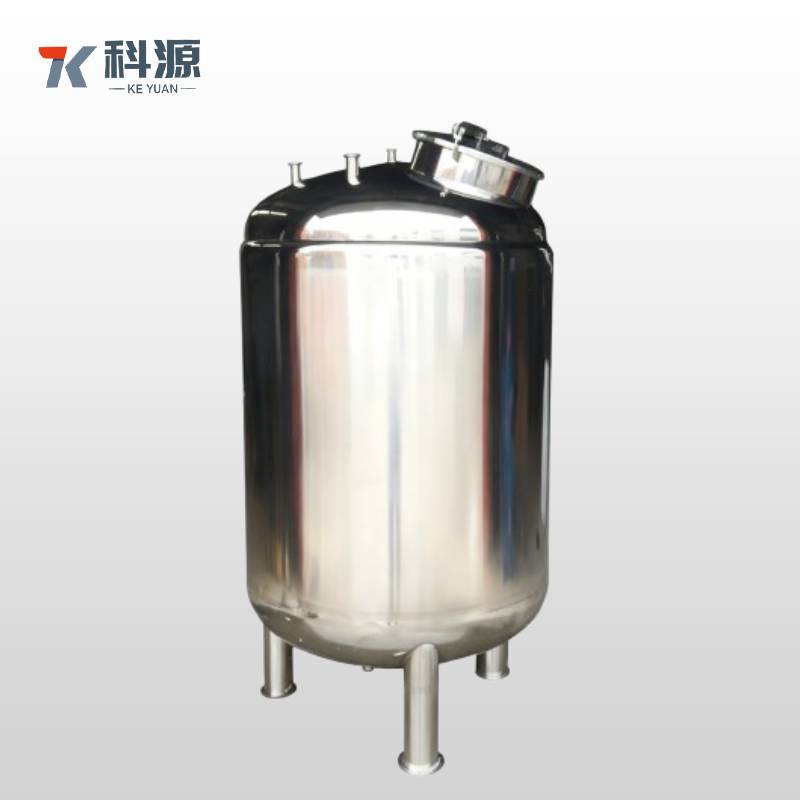

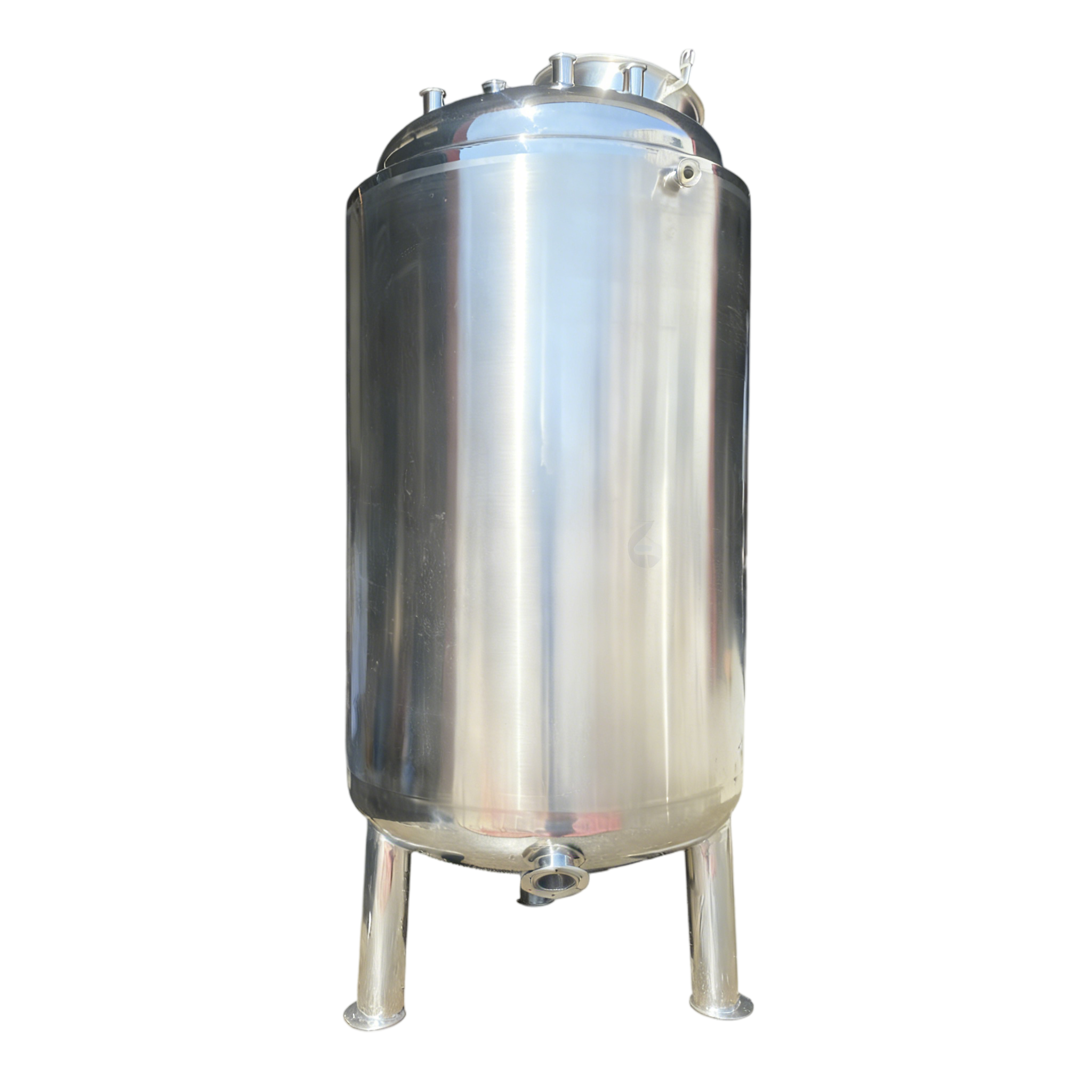

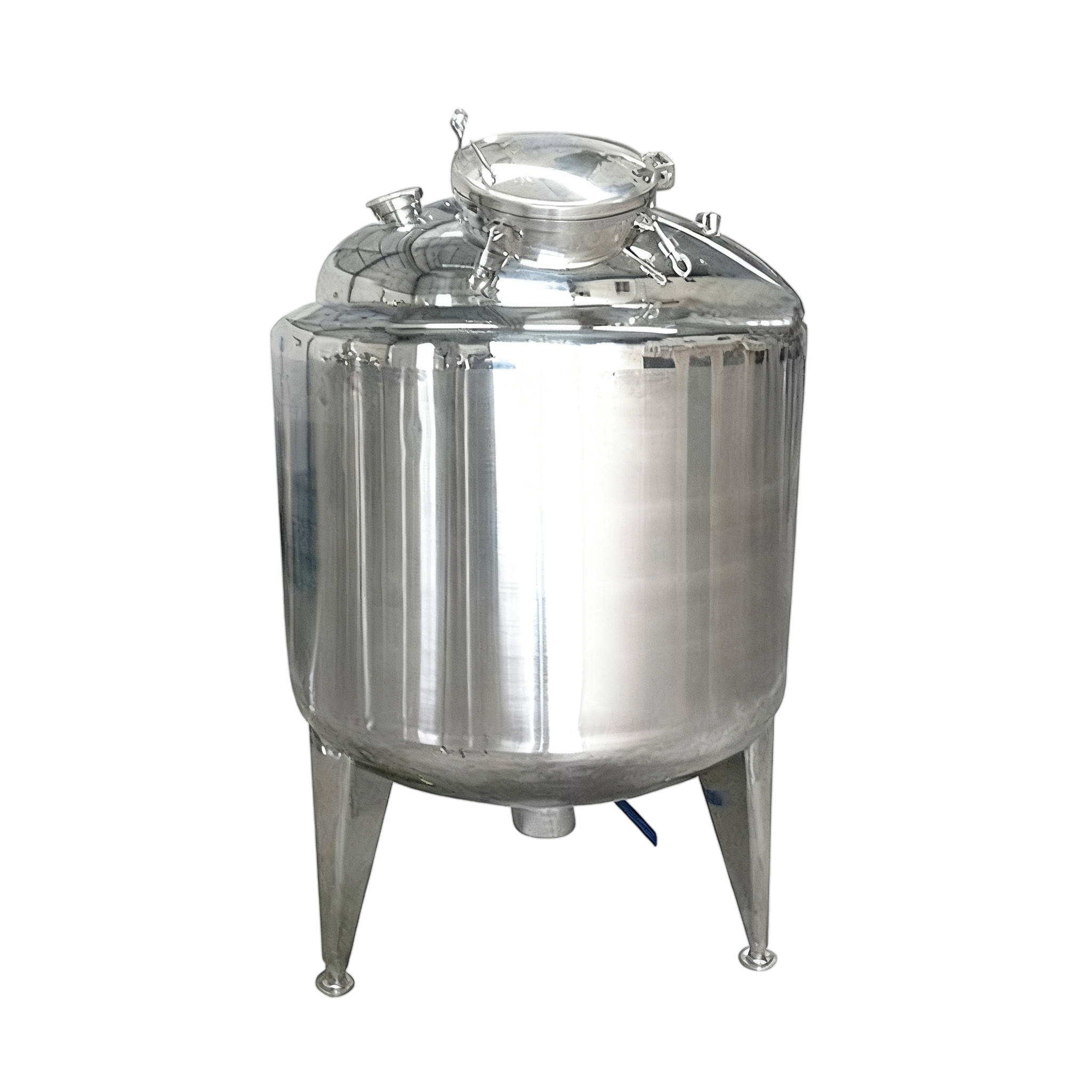

Factory Price Sanitary Food Grade Liquid Water Storing Vessel Customized Drum Jacketed Insulated Stainless Steel Water Storage Tank

Our Stainless Steel Insulated Water Storage Tank represents the pinnacle of thermal efficiency and hygienic water storage technology. Engineered for applications requiring precise temperature maintenance, this advanced tank system combines the corrosion resistance and sanitary properties of food-grade stainless steel with high-performance insulation technology to minimize energy consumption while ensuring consistent water quality.

Constructed from premium 304 or 316L stainless steel with a mirror-polished interior finish, these tanks feature a multi-layer insulation system that maintains water temperature within ±1°C of target for extended periods. The integrated design provides exceptional thermal efficiency for both heated and chilled water applications, making it ideal for industrial processes, commercial facilities, and specialized installations where temperature stability is critical.
  • Customized

  • Keyuan

Availability:
Quantity:


Parameter Overview:

1111


Design pressure: 0.6-1.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 C-40 °C (explanation required for temperatures exceeding 80 ℃)
Sealing materials: Silicone,nitrile rubber, EPDM rubber, fluororubber
Interface method: Threaded, standard flange
Recommended replacement pressure difference: 2.0 bar
Maximum replacement pressure difference: 2.4 bar
Surface treatment: Polishing/matte sandblasting
Tank material: SUS304, SUS316L


Model

B

(mm)

D

(mm)

H

(mm)

F

(mm)

Inlet/ Outlet

a1/a2

Capacity

(L)

KY-SX-1/0.25m³ 1220 500 1800 250 1/2”-3/4” 280
KY-SX-1/0.30m³ 1220 550 1830 250 1/2”-3/4” 345
KY-SX-1/0.5m³ 1220 700 2020 250 1/2”-3/4” 578
KY-SX-1/0.7m³ 1220 800 2100 250 3/4" -1" 772
KY-SX-1/1m³ 1220 1000 2220 300 3/4" -1" 1257
KY-SX-1/1.5m³ 1220 1200 2320 300 3/4" -1" 1888
KY-SX-1/2m³ 1220 1400 2370 300 1-1/2" 2672
KY-SX-1/3m³ 1500 1500 2700 300 1-1/2" 3621
KY-SX-1/4m³ 1800 1600 3050 300 1-1/2" 4790
KY-SX-1/5m³ 1800 1800 3150 300 1-1/2" 6232
KY-SX-1/6m³ 1800 2000 3300 350   2” 7907
KY-SX-1/8m³ 1800 2200 3400 350 2" 9930
KY-SX-1/10m³ 1800 2400 3500 350 2" 12118
KY-SX-1/15m³ 1800 2800 3700 350 2" 17317
