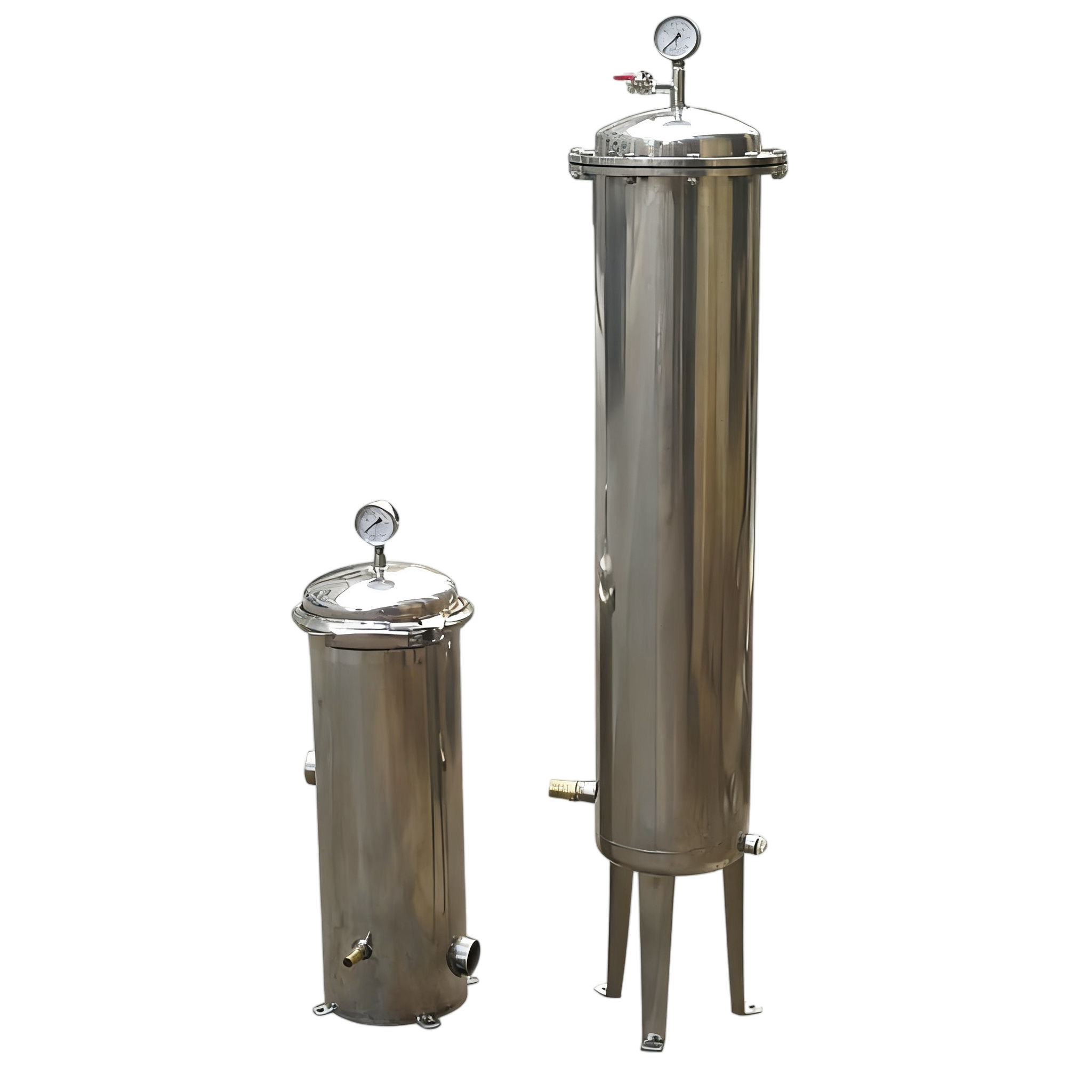

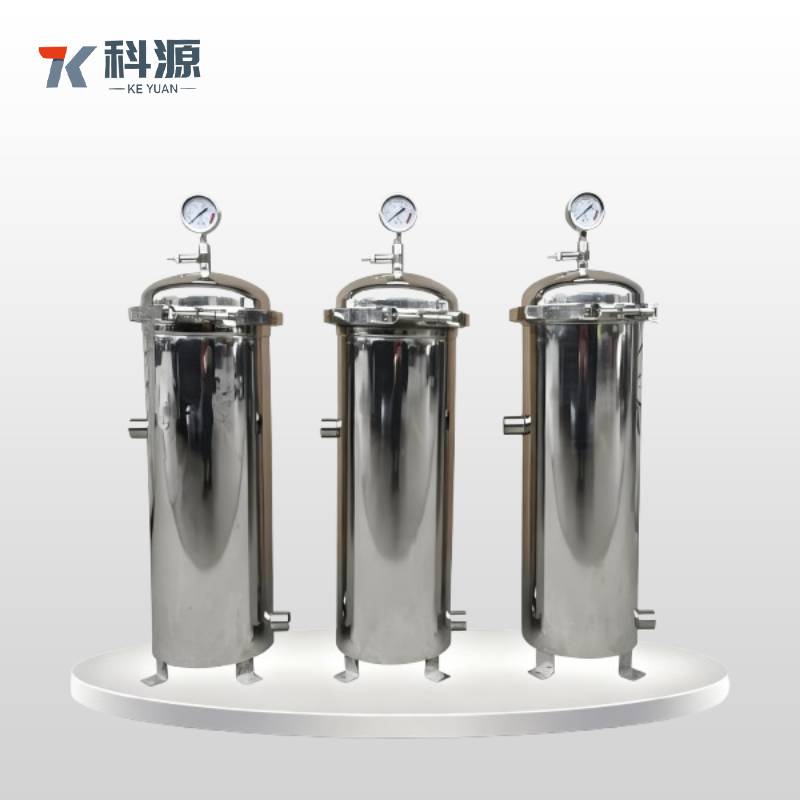

ASME BPE Compliant Tri-Clamp Precision Filter with Double O-Ring Seal and Drain Port for Complete Product Recovery

Tank material: SUS304, SUS316L

Design pressure: 0.6Mpa (if greater than this pressure, please specify)

Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)

Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber

Interface method: Threaded,standard flange,quick release chuck                            Opening method: Clamp type

Filtering accuracy: 0.1um-100um

Surface treatment: Polishing/matte sandblasting

Does it has legs: Customised

Filter cartridge form: Flat holding, 222/226 socket filter cartridge

Key Features & Benefits

Exceptional Filtration Accuracy: Utilizes high-grade stainless steel filter elements (available in a wide range of micron ratings) to ensure consistent particle retention, high dirt-holding capacity, and optimal product clarity.

Sanitary & Hygienic Design: Constructed from 316L (or 304) stainless steel with polished internal surfaces (Ra ≤ 0.8 µm). The Tri-Clamp (Tri-Clover) connections allow for quick, tool-free disassembly, ensuring easy cleaning, inspection, and maintenance to meet strict sanitary standards (3-A, FDA, cGMP compliant).

Robust & Durable Construction: Built to withstand high pressures, temperatures, and rigorous CIP/SIP procedures. All-welded construction ensures integrity and prevents bypass leakage.

Operational Efficiency: The compact, streamlined design minimizes pressure drop and product hold-up volume. The easy-to-clean design reduces downtime, increases productivity, and lowers total cost of ownership.

Versatile Configuration: Available in single or multi-element housings to accommodate various flow rates. Options include pressure gauges, vent and drain valves, and different element types to suit specific application needs.

Operational Advantages

Reduced Downtime: Average filter change time reduced by 70% compared to bolted designs

Enhanced Safety: No loose bolts or tools required, minimizing workplace hazards

Ideal Applications

Pharmaceutical: Process intermediates, solvent filtration, purified water systems

Food & Beverage: Syrups, edible oils, dairy products, brewing applications

Chemical Processing: Catalysts recovery, polymer filtration, chemical purification

Electronics: Photoresists, etchants, ultrapure water pre-filtration

Cosmetics: Creams, lotions, fragrances, active ingredients

Consistent Performance: Uniform clamping force ensures reliable sealing cycle after cycle

Versatile Applications: Suitable for batch and continuous processes across multiple industries

Why Choose Our Clamp-Type Filter?

Time-Saving Innovation: Dramatically reduces maintenance time and labor costs

Reliable Performance: Proven sealing technology with thousands of installations worldwide

Hygiene-Focused: Designed for easy cleaning and compliance with sanitary standards

Cost-Effective Operation: Lower total cost of ownership through reduced maintenance and downtime
