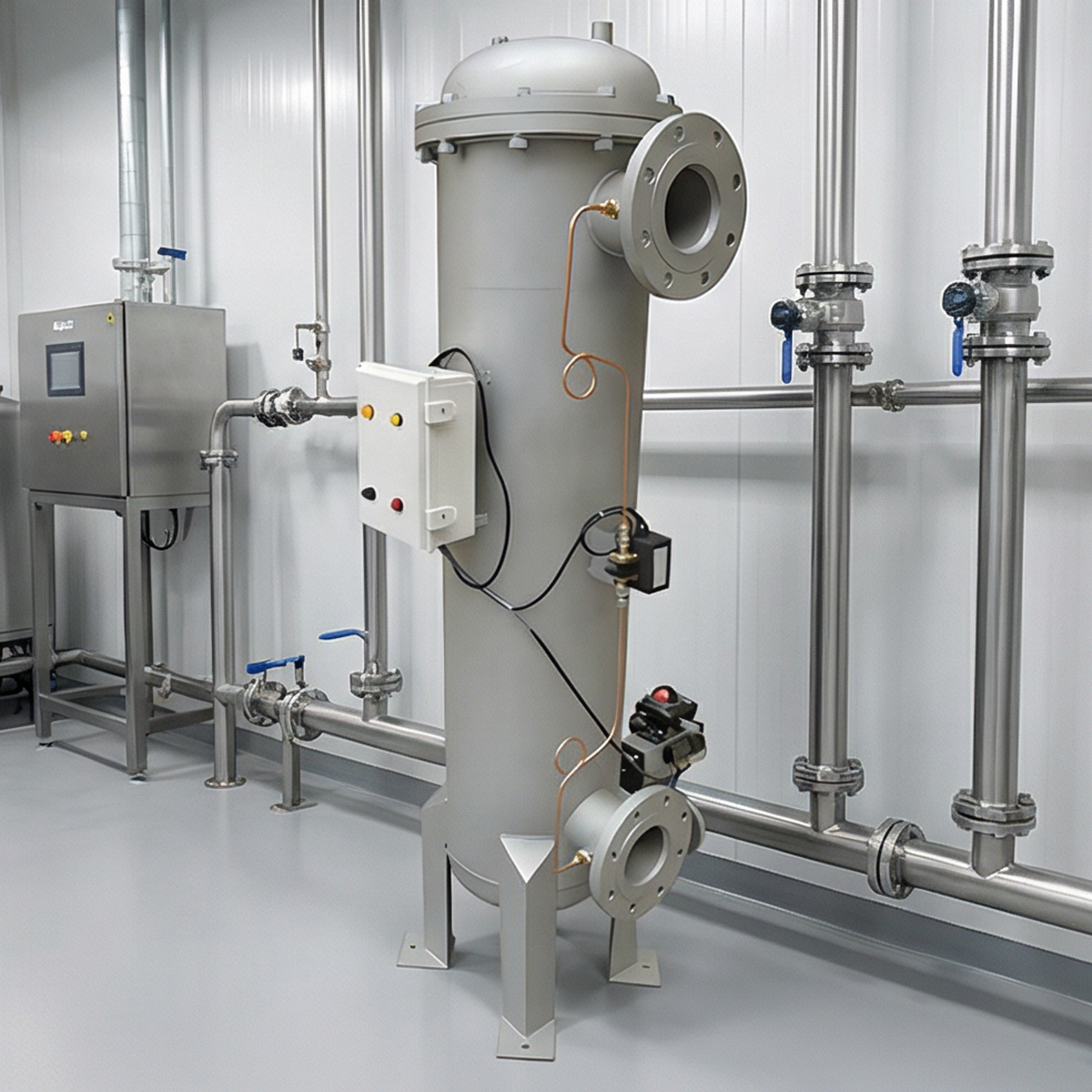

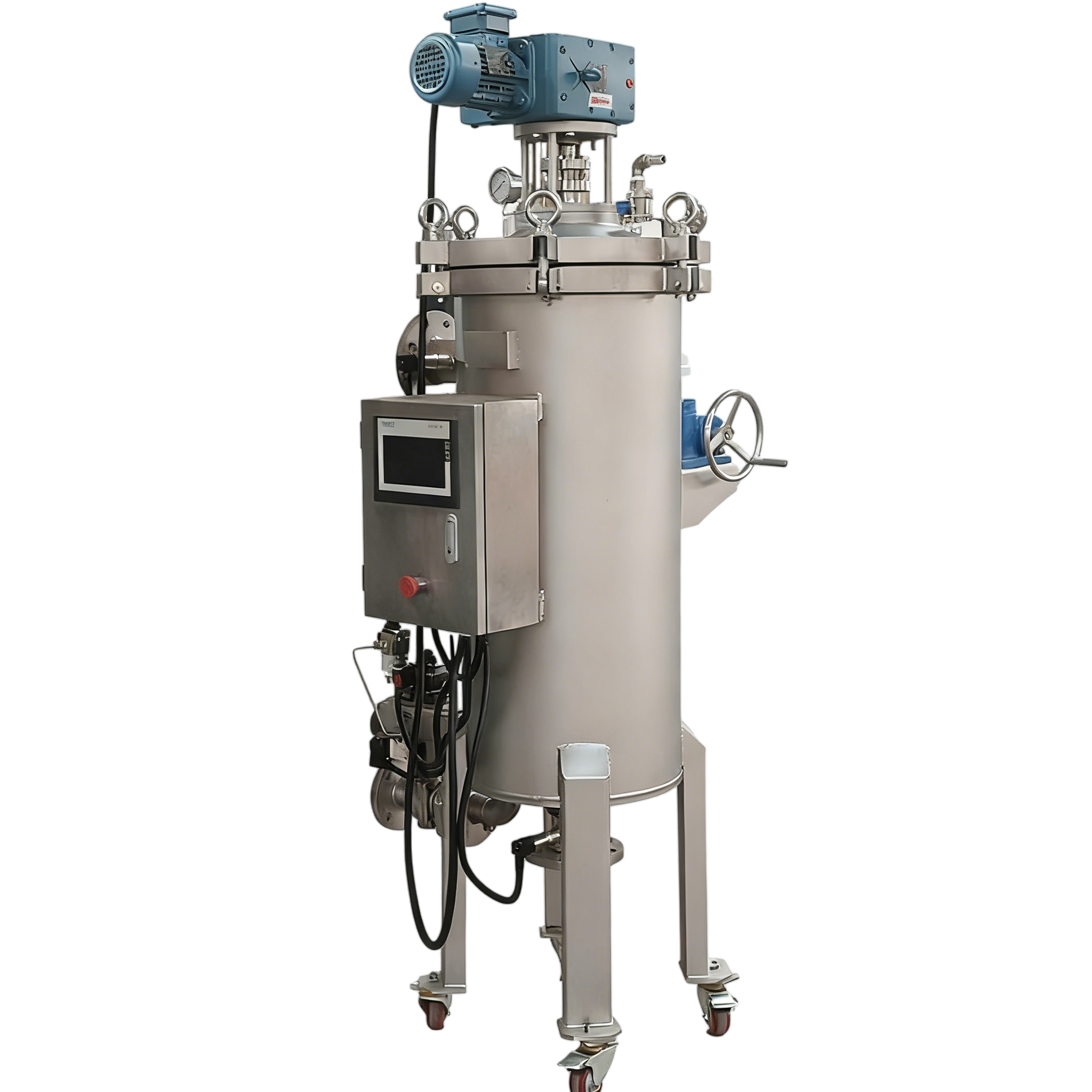

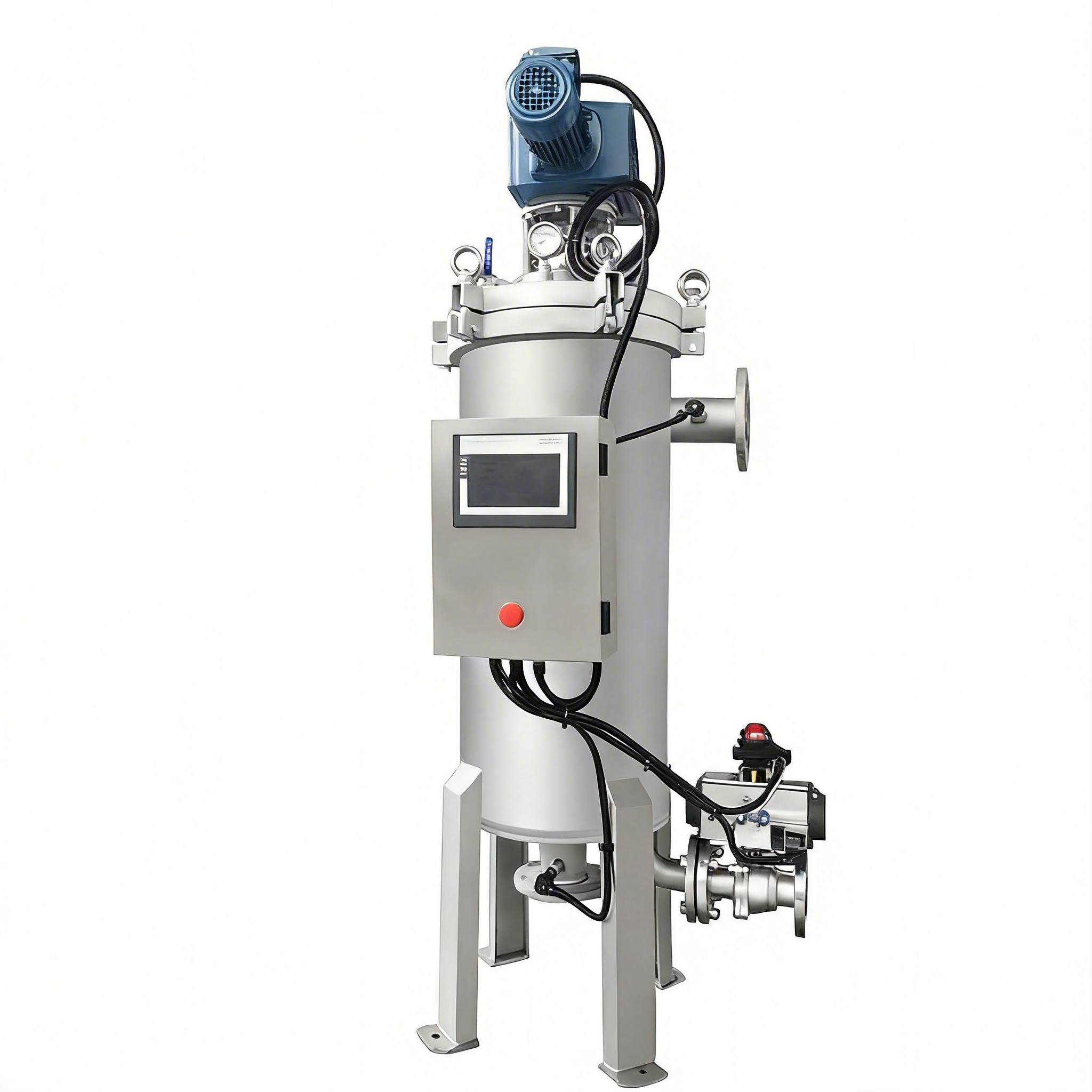

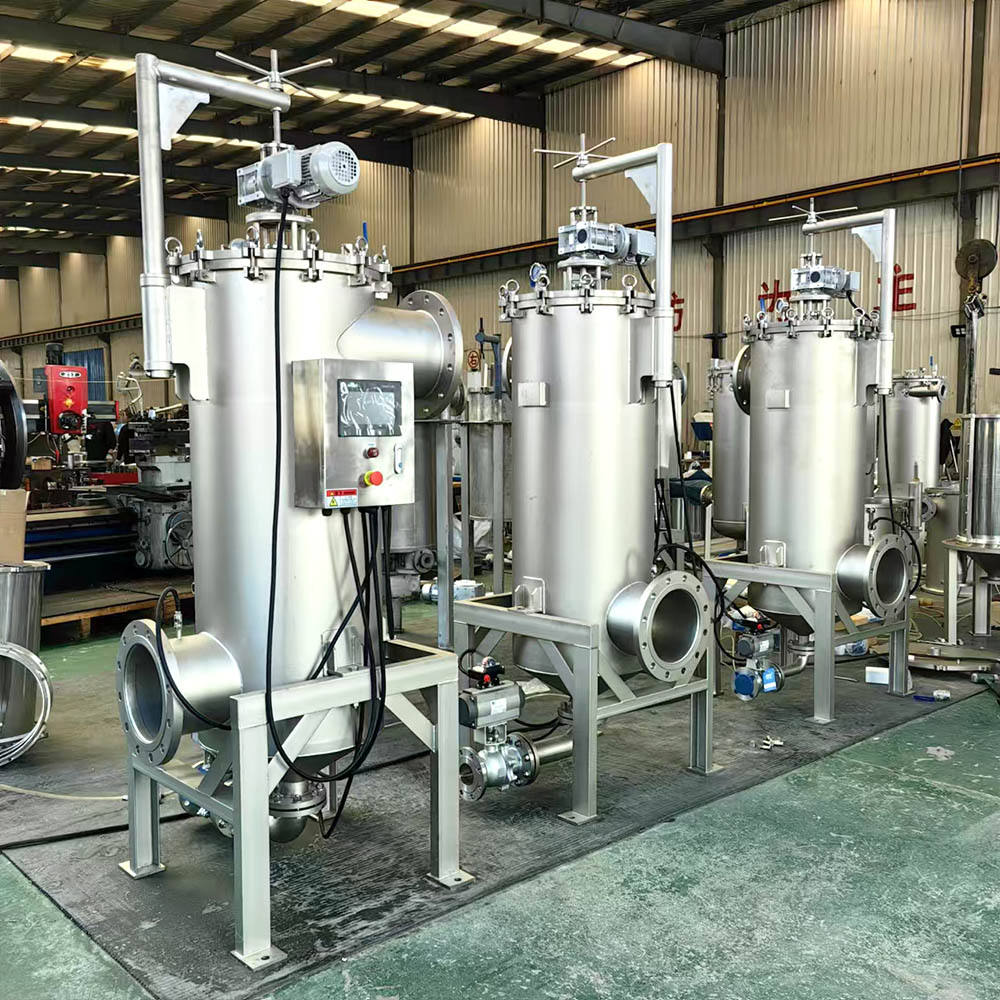

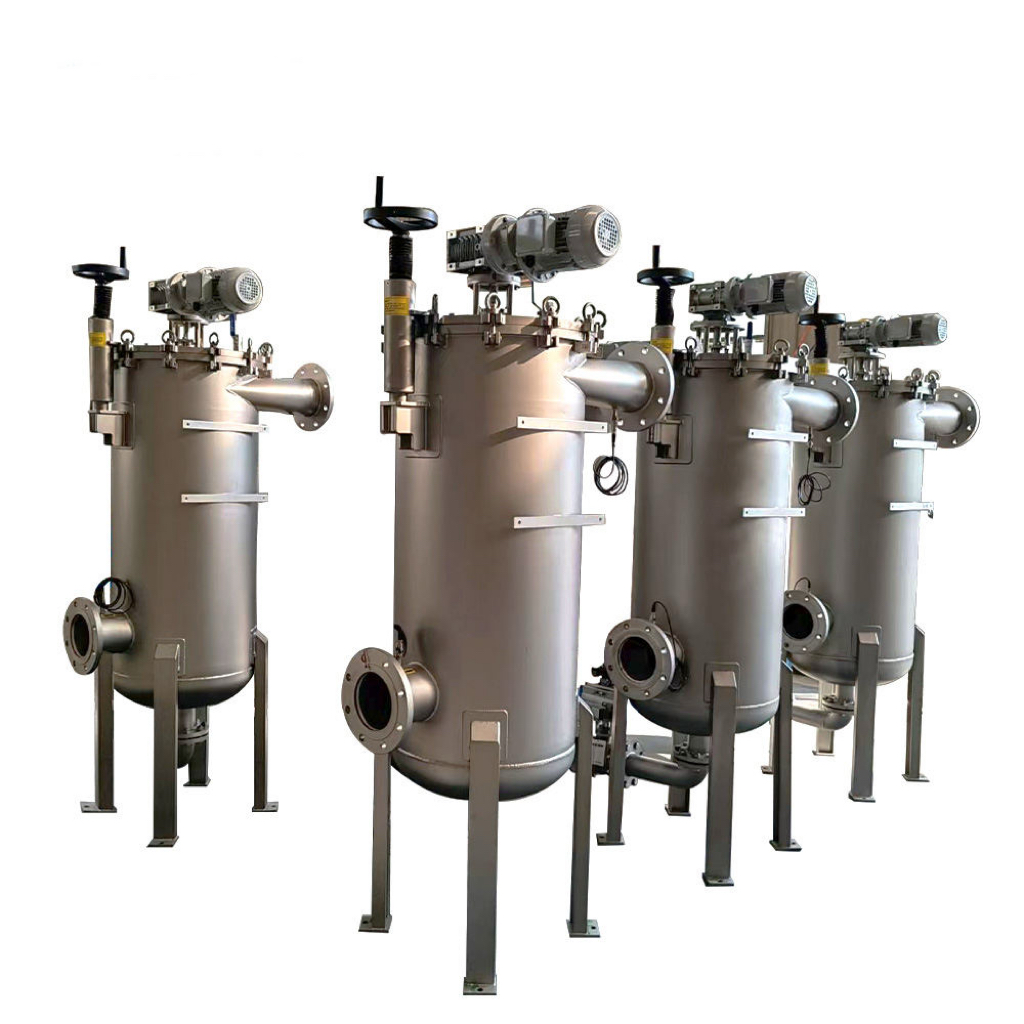

Energy Efficient Stainless Steel Automatic Filter with Low Pressure Drop and Minimal Power Consumption for Sustainable Operations

Multi-parameter Monitoring: Continuous tracking of differential pressure, flow rate, turbidity, and cleaning efficiency

Core Operational Advantages

1. Uninterrupted Continuous Operation

Simultaneous Filtration & Cleaning: Patented multi-chamber design allows cleaning of individual sectors while others continue filtering

No Process Interruption: Continuous outlet flow maintained during all cleaning cycles

High System Availability: 99.9% uptime achievable with proper maintenance schedule

2. Exceptional Cleaning Efficiency

High-Pressure Backwash: 60-100 PSI backwash pressure ensures complete contaminant removal from filter surfaces

Rotary Scanning System: Motor-driven scanning mechanism ensures 100% screen coverage during cleaning

Adjustable Cleaning Parameters: Backwash duration, frequency, and pressure fully programmable for specific applications

3. Smart Energy & Resource Management

Low Water Consumption: Advanced backwash technology uses 30-50% less water than conventional self-cleaning filters

Energy Efficient Design: Optimized hydraulic design minimizes pressure drop (typically <3 PSI clean)

Automated Optimization: System automatically adjusts cleaning frequency based on contaminant loading

System Configurations & Options

Standard Models

Model SCF-H (Horizontal): For general industrial applications with floor space constraints

Model SCF-V (Vertical): For installations with limited footprint but vertical space available

Model SCF-M (Multi-unit): Parallel systems for extremely high flow requirements

Filtration Media Options

Wedge Wire Screens: 304/316L stainless steel, slot sizes from 10-3000μm

Perforated Screens: Laser-cut or drilled plates, hole sizes from 0.5-10mm

Mesh Screens: Multi-layer sintered mesh for finer filtration

Industry Applications & Benefits

Water Treatment & Distribution

Municipal Water Plants: Raw water intake filtration and process water treatment

Cooling Water Systems: Side-stream filtration for cooling towers and heat exchangers

Irrigation Systems: Protection of drip emitters and sprinkler systems from clogging

Industrial Process Filtration

Chemical Processing: Continuous filtration of process streams and catalyst recovery

Oil & Gas: Produced water treatment, injection water filtration, and pipeline protection

Power Generation: Cooling water, condensate polishing, and fuel oil filtration

Food & Beverage Production

Process Water: Continuous filtration for production lines without shutdown

Ingredient Filtration: Removal of particulates from liquids and semi-viscous products

CIP Systems: Return line filtration with automatic cleaning

Special Applications

Marine & Offshore: Seawater filtration for ballast systems and cooling

Mining & Mineral Processing: Process water recovery and tailings treatment

Pulp & Paper: White water filtration and process stream clarification

Installation & Operational Benefits

Easy Installation

Pre-assembled Units: Factory-tested and pre-assembled for quick installation

Flexible Orientation: Can be installed in multiple orientations to fit space constraints

Minimal Foundation: Lightweight design requires minimal structural support

Low Maintenance

No Regular Cartridge Replacement: Permanent filter media eliminates consumable costs

Automatic Cleaning: Eliminates manual cleaning labor

Easy Access Design: Quick-release covers and modular components for easy service

Cost Savings

Reduced Labor Costs: Elimination of manual cleaning saves 20-40 hours per month

Lower Water Usage: Efficient backwash reduces water consumption by 30-50%

Energy Efficiency: Low pressure drop design reduces pumping costs

Minimal Downtime: Continuous operation maximizes production uptime

Why Choose Our Self-Cleaning Filter?

Maximum Uptime: Continuous operation with zero downtime for cleaning

Proven Technology: Thousands of successful installations worldwide across diverse industries

Custom Engineering: Configurable to meet specific application requirements

Lifecycle Value: Lower total cost of ownership through reduced labor, water, and energy costs

Intelligent Operation: Smart controls optimize performance and enable predictive maintenance
