Customized
Keyuan
| Quantity: | |
|---|---|
| Model | D (mm) | H (mm) | E (mm) |
| KY-RHG-1/1052 | ∅250 | 1320 | 2.5" |
| KY-RHG-1/1252 | ∅300 | 1320 | 2.5" |
| KY-RHG-1/1465 | ∅350 | 1650 | 2.5" |
| KY-RHG-1/1665 | ∅400 | 1650 | 2.5" |
| KY-RHG-1/2065 | ∅500 | 1650 | 2.5" |

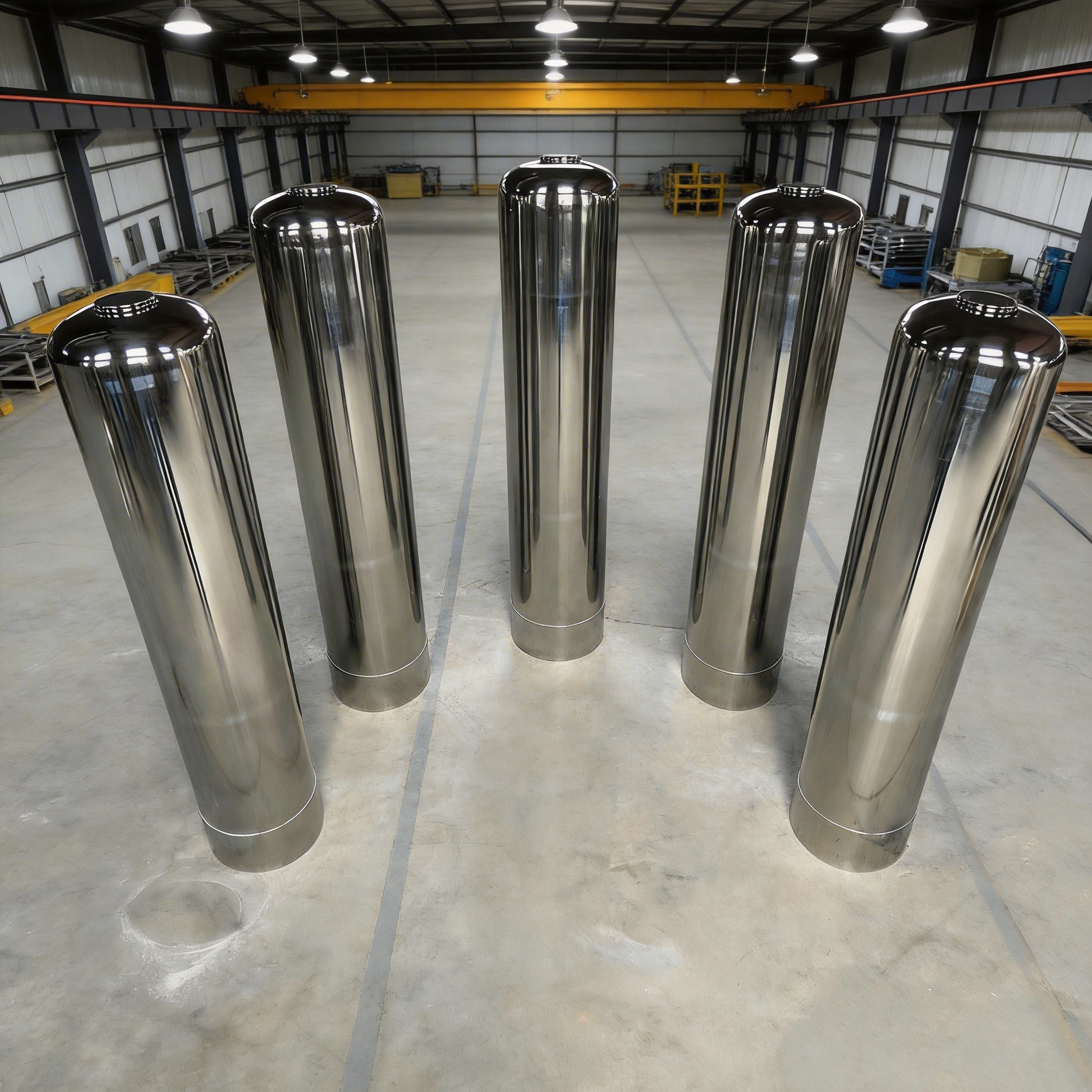

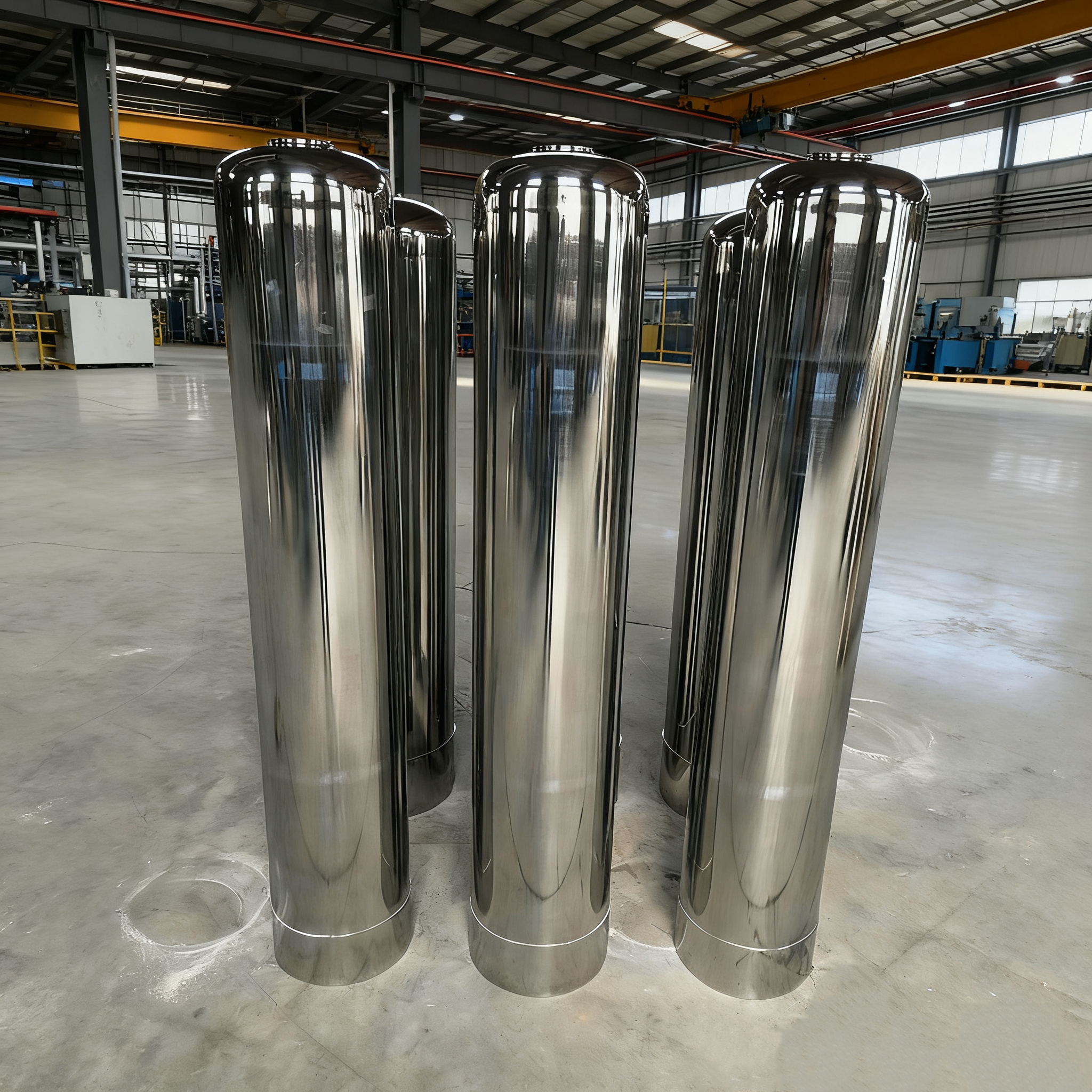

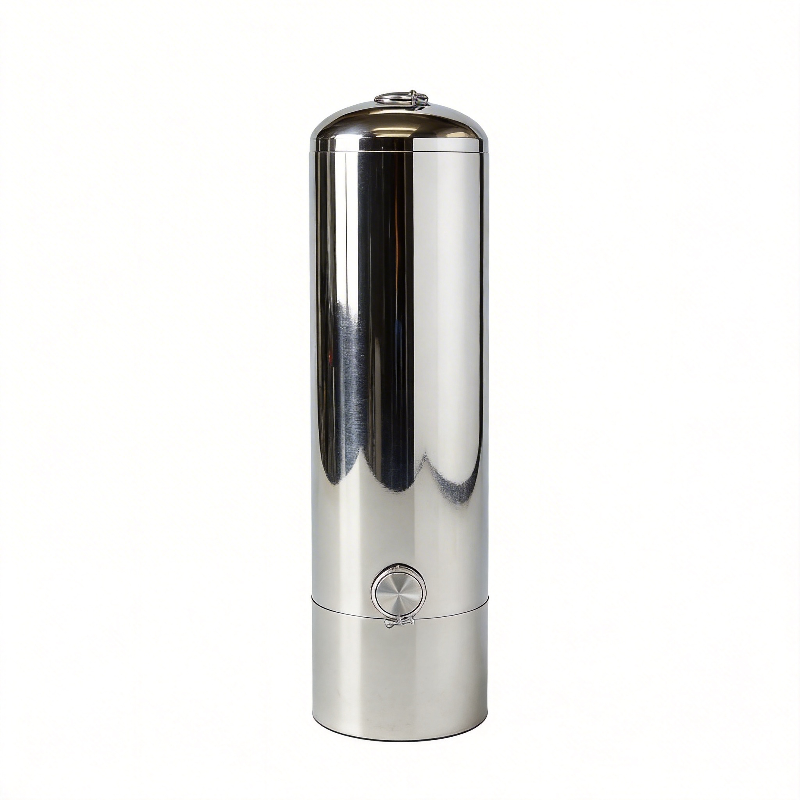

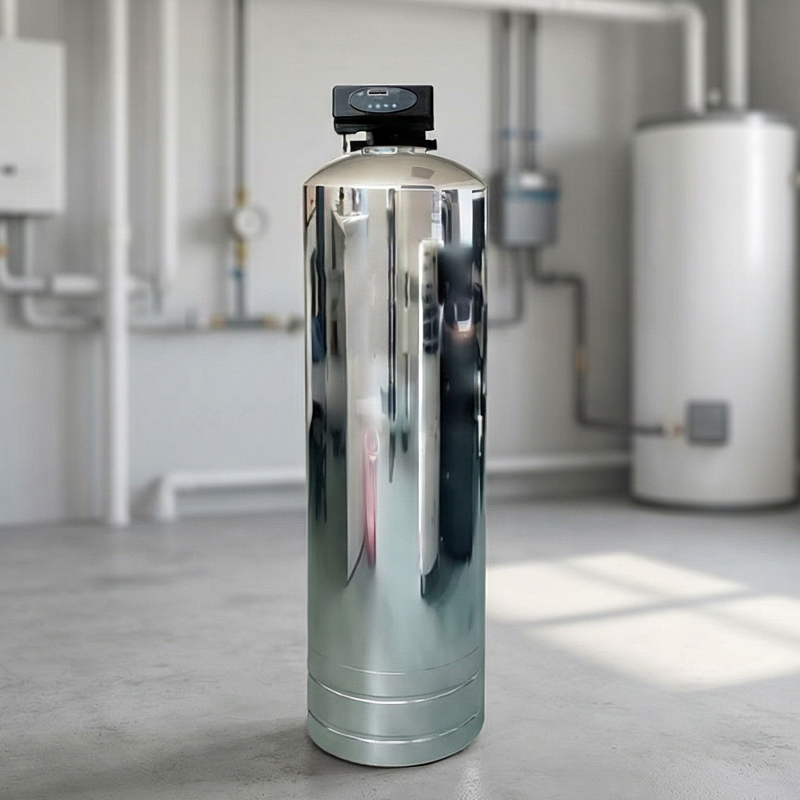

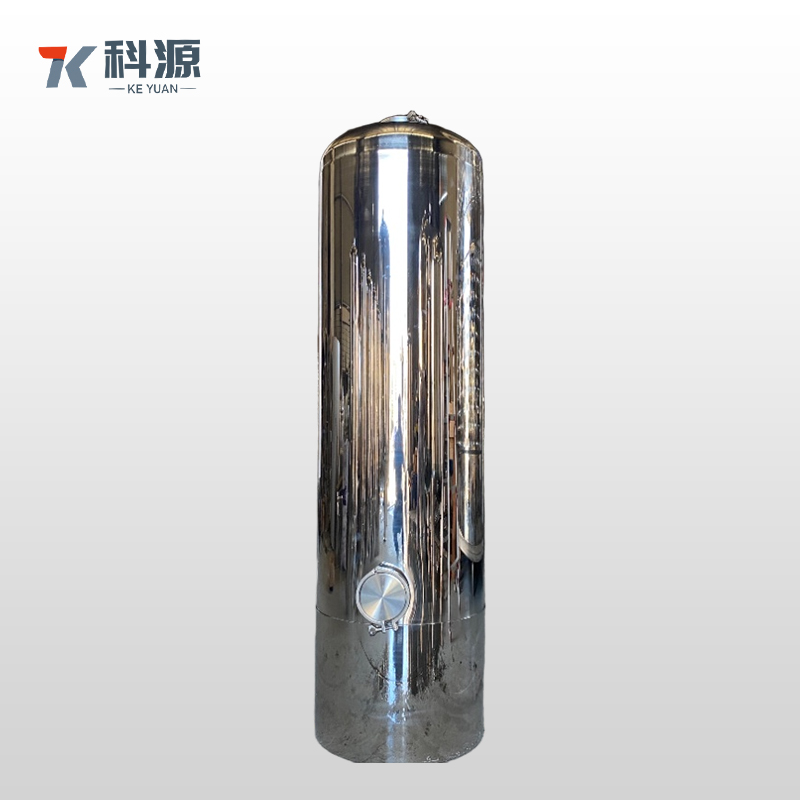

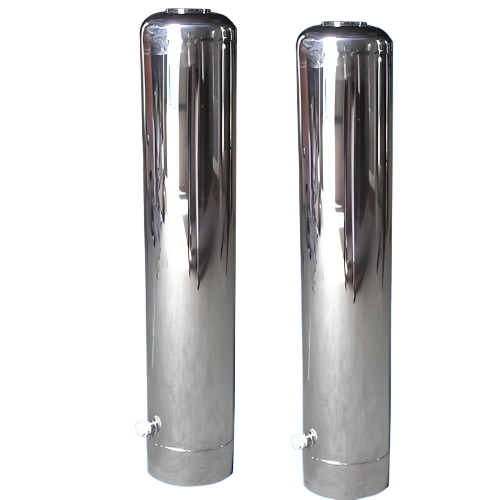

Constructed from premium 304 or 316L stainless steel, this tank is specifically designed to handle the challenging environment of ion exchange softening:
Corrosion-Resistant Construction: The high-grade stainless steel offers superior resistance to chloride-induced stress corrosion cracking and attack from brine (sodium chloride or potassium chloride), ensuring a decades-long service life even with continuous salt exposure
Pressure-Rated Design: Built as a true pressure vessel to withstand typical operating pressures (e.g., 5-8 bar) and the hydraulic stresses of backwash, brine draw, and fast rinse cycles without fatigue.
Sanitary & Cleanable Interior: A smooth, passivated internal surface prevents scaling and bacterial buildup, facilitating easier maintenance and inspection compared to porous liner-based tanks.
This tank is the ideal housing for resin beds, enabling efficient hardness removal:
Precise Internal Distribution: Engineered for use with high-efficiency top and bottom distributor/collector systems (basket strainers, lateral assemblies) that ensure even flow distribution, prevent resin loss, and maximize brine contact during regeneration.
Optimized Bed Support: Designed to accommodate standard gravel underbedding or modern fine-mesh resin traps, protecting the lower distributor and ensuring optimal flow dynamics.
Full Access for Service: Standard flanged top openings allow for easy installation, inspection, and replacement of internal components and resin media.
Commercial Water Softening: For hotels, hospitals, laundries, and car washes.
Industrial Process Water: Pretreatment for boilers, cooling towers, reverse osmosis systems, and manufacturing processes.
Food & Beverage Production: Ingredient water softening to prevent scaling and improve product quality.
Municipal & Institutional Facilities: Schools, government buildings, and apartment complexes.
Easy Installation
Pre-assembled Internals: Factory-installed underdrains and distributors reduce installation time
Clear Markings: All connections clearly marked for proper piping installation
Standard Foundations: Requires only standard concrete pad or steel support
Low Maintenance
No Liner Replacement: Eliminates the primary maintenance requirement of lined steel tanks
Corrosion Resistance: 316L construction minimizes external corrosion concerns
Long Service Life: 25+ year design life with minimal maintenance requirements
Safety Features
Pressure Relief: Optional pressure relief devices available
Overflow Protection: Properly sized overflow connections
Built to Last: The most durable vessel solution for water softening on the market.
Zero Maintenance on the Vessel: Unlike lined tanks, the stainless steel shell itself requires no periodic refurbishment.
System Reliability: Protects your investment in resin and control valves by providing a stable, non-degrading environment.
Expert Engineering: We design the tank to integrate seamlessly with your chosen softening controls and process requirements.
| Model | D (mm) | H (mm) | E (mm) |
| KY-RHG-1/1052 | ∅250 | 1320 | 2.5" |
| KY-RHG-1/1252 | ∅300 | 1320 | 2.5" |
| KY-RHG-1/1465 | ∅350 | 1650 | 2.5" |
| KY-RHG-1/1665 | ∅400 | 1650 | 2.5" |
| KY-RHG-1/2065 | ∅500 | 1650 | 2.5" |
Constructed from premium 304 or 316L stainless steel, this tank is specifically designed to handle the challenging environment of ion exchange softening:
Corrosion-Resistant Construction: The high-grade stainless steel offers superior resistance to chloride-induced stress corrosion cracking and attack from brine (sodium chloride or potassium chloride), ensuring a decades-long service life even with continuous salt exposure
Pressure-Rated Design: Built as a true pressure vessel to withstand typical operating pressures (e.g., 5-8 bar) and the hydraulic stresses of backwash, brine draw, and fast rinse cycles without fatigue.
Sanitary & Cleanable Interior: A smooth, passivated internal surface prevents scaling and bacterial buildup, facilitating easier maintenance and inspection compared to porous liner-based tanks.
This tank is the ideal housing for resin beds, enabling efficient hardness removal:
Precise Internal Distribution: Engineered for use with high-efficiency top and bottom distributor/collector systems (basket strainers, lateral assemblies) that ensure even flow distribution, prevent resin loss, and maximize brine contact during regeneration.
Optimized Bed Support: Designed to accommodate standard gravel underbedding or modern fine-mesh resin traps, protecting the lower distributor and ensuring optimal flow dynamics.
Full Access for Service: Standard flanged top openings allow for easy installation, inspection, and replacement of internal components and resin media.
Commercial Water Softening: For hotels, hospitals, laundries, and car washes.
Industrial Process Water: Pretreatment for boilers, cooling towers, reverse osmosis systems, and manufacturing processes.
Food & Beverage Production: Ingredient water softening to prevent scaling and improve product quality.
Municipal & Institutional Facilities: Schools, government buildings, and apartment complexes.
Easy Installation
Pre-assembled Internals: Factory-installed underdrains and distributors reduce installation time
Clear Markings: All connections clearly marked for proper piping installation
Standard Foundations: Requires only standard concrete pad or steel support
Low Maintenance
No Liner Replacement: Eliminates the primary maintenance requirement of lined steel tanks
Corrosion Resistance: 316L construction minimizes external corrosion concerns
Long Service Life: 25+ year design life with minimal maintenance requirements
Safety Features
Pressure Relief: Optional pressure relief devices available
Overflow Protection: Properly sized overflow connections
Built to Last: The most durable vessel solution for water softening on the market.
Zero Maintenance on the Vessel: Unlike lined tanks, the stainless steel shell itself requires no periodic refurbishment.
System Reliability: Protects your investment in resin and control valves by providing a stable, non-degrading environment.
Expert Engineering: We design the tank to integrate seamlessly with your chosen softening controls and process requirements.
