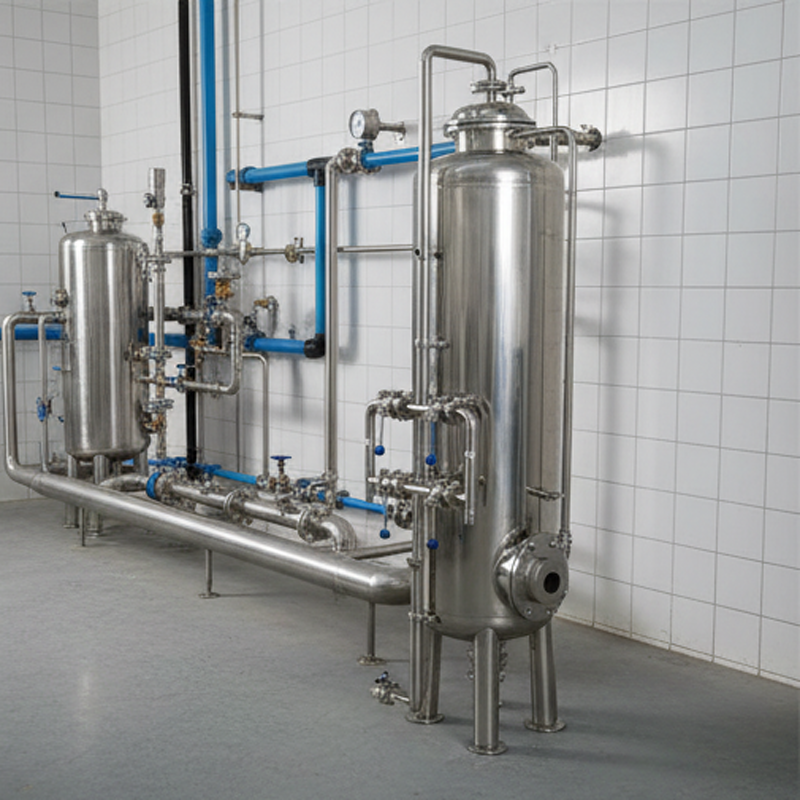

High Flow Stainless Steel Pressure Multi-Media Filter Vessel 24

Share to:

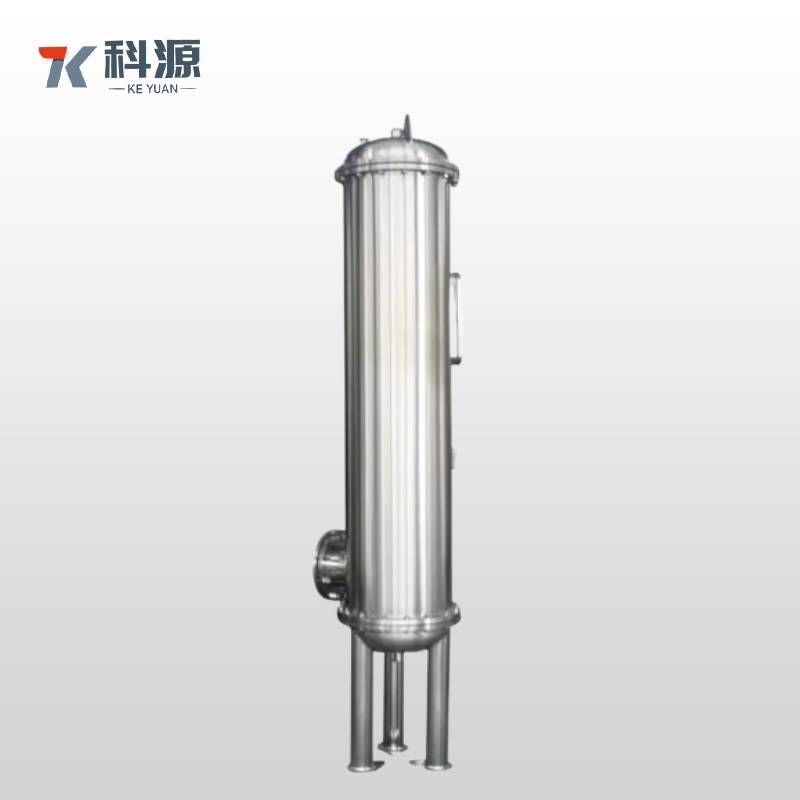

Automatic Backwash Stainless Steel Multi-Media Filter System with PLC Control, Flow Rate 20-500 m³/hr for Municipal Water Treatment

Our Stainless Steel Multi-Media Filter is engineered to deliver superior performance in removing suspended solids, turbidity, and organic contaminants through a precisely layered filtration media system. Designed for industrial, commercial, and municipal applications, this robust filtration solution provides high-efficiency particle removal with exceptional durability and minimal maintenance requirements.

Model:
Customized
Brand:
Keyuan

Material:	Stainless Steel 304/316L
Internal Treatment:	Epoxy/Rubber Lining
Surface Treatment:	Mirror Polish/Sand Blasting
Transport Package:	Container/Seaworthy Wooden Box
Availability:

Quantity:



Inquire Add to Basket

Product Description

Overview

Multi media filter, also known as multi-media filter, is an important component of the pre-treatment and water purification system of pure water equipment. The current material is stainless steel 304 or 316L, which can be divided into natural quartz sand filter, activated carbon filter, multi-media filter, manganese sand filter, etc. according to the different filter media. It can be divided into single flow filter and double flow filter according to the water inlet method, and can be used in combination or separately according to the actual situation.

Model	B (mm)	H (mm)	D (mm)	F (mm)	Inlet/Outlet a1/a2	Exhaust vent
KY-JX-300*1200	1200	1800	∅300	300	DN32	DN20
KY-JX-400*1500	1500	2150	∅400	300	DN40	DN20
KY-JX-500*1500	1500	2230	∅500	300	DN40	DN25
KY-JX-600*1500	1500	2290	∅600	300	DN50	DN25
KY-JX-700*1500	1500	2340	∅700	300	DN50	DN25
KY-JX-800*1500	1500	2390	∅800	300	DN50	DN25
KY-JX-900*1500	1500	2600	∅900	300	DN65	DN25
KY-JX-1000*1500	1500	2750	∅1000	400	DN65	DN25
KY-JX-1100*1500	1500	2800	∅1100	400	DN65	DN25
KY-JX-1200*1500	1500	2850	∅1200	400	DN65	DN25
KY-JX-1400*1500	1500	2950	∅1400	400	DN80	DN25
KY-JX-1500*1800	1800	3360	∅1500	400	DN80	DN25
KY-JX-1600*1800	1800	3500	∅1000	400	DN80	DN25
KY-JX-1800*1800	1800	3610	∅1100	400	DN80	DN25
KY-JX-2000*1800	1800	3710	∅1200	400	DN100	DN32
KY-JX-2200*1800	1800	3810	∅1400	400	DN100	DN32
KY-JX-2500*2000	2000	3860	∅1500	400	DN100	DN32

Application-Specific Designs
Industrial Process Water
Cooling tower makeup water pretreatment
Process water clarification
Wastewater tertiary treatment
Reverse osmosis pretreatment
Municipal Water Treatment
Surface water treatment plants
Groundwater turbidity removal
Filter retrofits and upgrades
Commercial Applications
Hotel and resort water systems
Hospital water pretreatment
Food and beverage processing water
Special Applications
Swimming pool filtration
Aquaculture water treatment
Irrigation water filtration

Why Choose Our Multi-Media Filter?
Proven Technology: Decades of successful installations across multiple industries
Custom Engineering: Tailored solutions for specific water quality challenges
Superior Hydraulics: Optimized distribution systems for maximum performance
Comprehensive Support: Process design, installation supervision, and operator training
