Customized
Keyuan
| Quantity: | |
|---|---|
Parameter Overview:

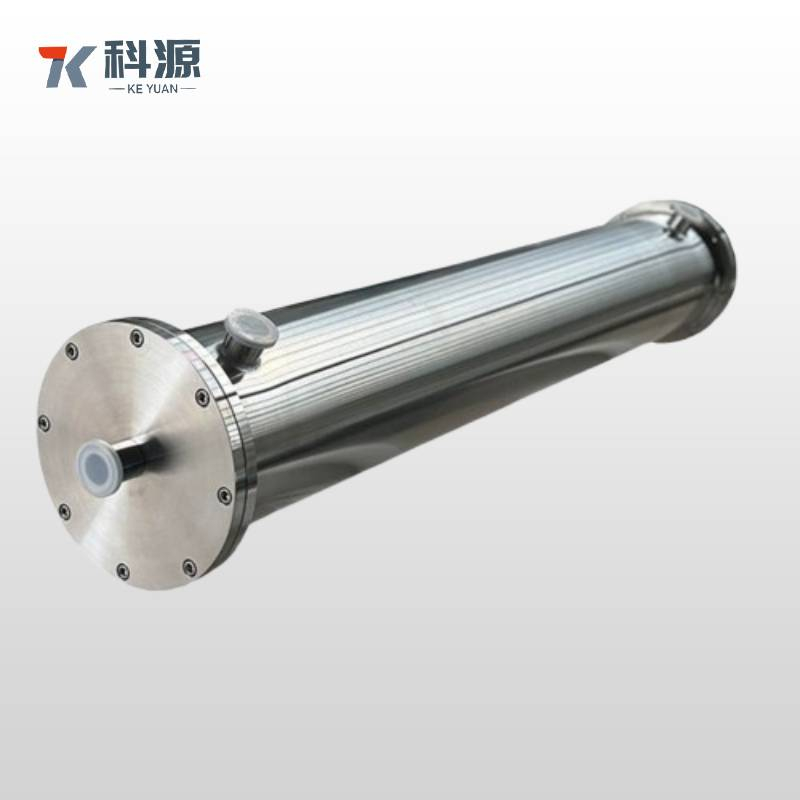

Side inlet, 8-inch membrane housing flange type
| Model | L (mm) | L1 (mm) | D (mm) | A In | B Out |
| KY-MKF-8040 | 1359 | 1119 | ∅203 | 11/2"-3" | 1" |
| KY-MKF-8080 | 2375 | 2135 | ∅203 | 11/2"-3" | 1" |
| KY-MKF-80120 | 3391 | 3151 | ∅203 | 11/2"-3" | 1" |
| KY-MKF-80160 | 4407 | 4167 | ∅203 | 11/2"-3" | 1" |
| KY-MKF-80200 | 5423 | 5183 | ∅203 | 11/2"-3" | 1" |
| KY-MKF-80240 | 6439 | 6199 | ∅203 | 11/2"-3" | 1" |
Robust Flanged Connection Design
Flanged Connections: Standard ANSI Class 150, 300, or 600 flanges ensure reliable, high-pressure sealing and easy integration with industrial piping systems
Bolted Closure System: Heavy-duty stud bolts and forged steel nuts provide uniform clamping force, preventing leaks even under pressure cycling and thermal expansion
Enhanced Seal Design: Dual O-rings or flat gasket systems with pressure-assist features ensure zero bypass and long-term sealing reliability
Industry Applications
Industrial Water Treatment
Power plant boiler feed water
Pharmaceutical water purification
Microelectronics ultra-pure water
Chemical process water
Municipal & Commercial
Municipal drinking water plants
Large commercial RO systems
Hospital water treatment
Hotel and resort water systems
Special Applications
Seawater desalination
Wastewater reuse and recycling
Oil and gas produced water treatment
Food and beverage processing water
Why Choose Our Flange-Type Membrane Housing?
Proven Reliability: Decades of successful operation in demanding applications worldwide
Superior Sealing: Flanged connections provide the most reliable high-pressure sealing available
Easy Maintenance: Quick access for membrane changes and internal inspection
Flexible Design: Multiple flange ratings and configurations to match your specific needs
Full Compliance: Meets all major international pressure vessel standards
