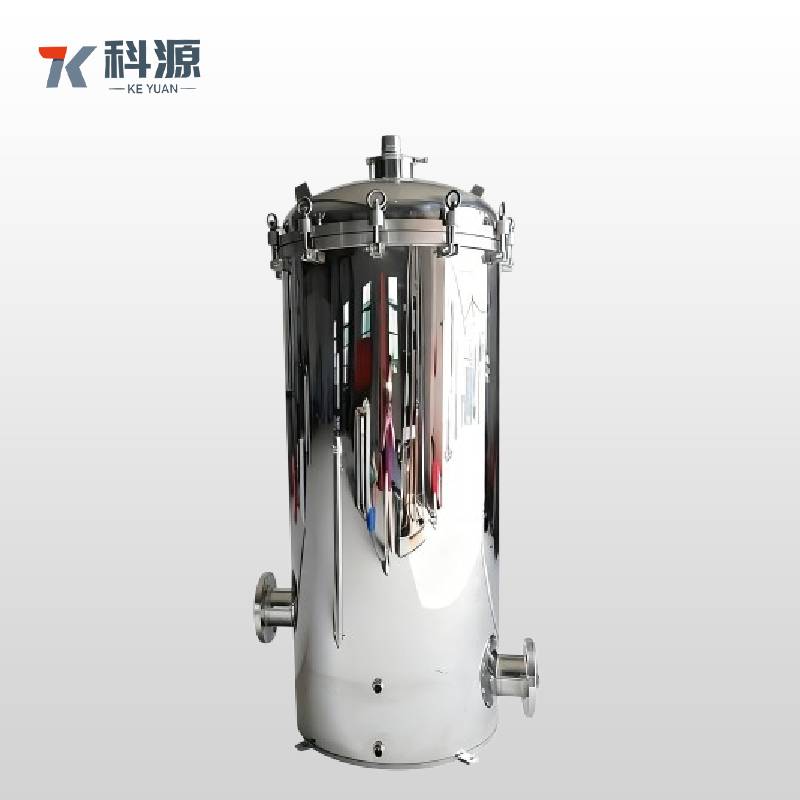

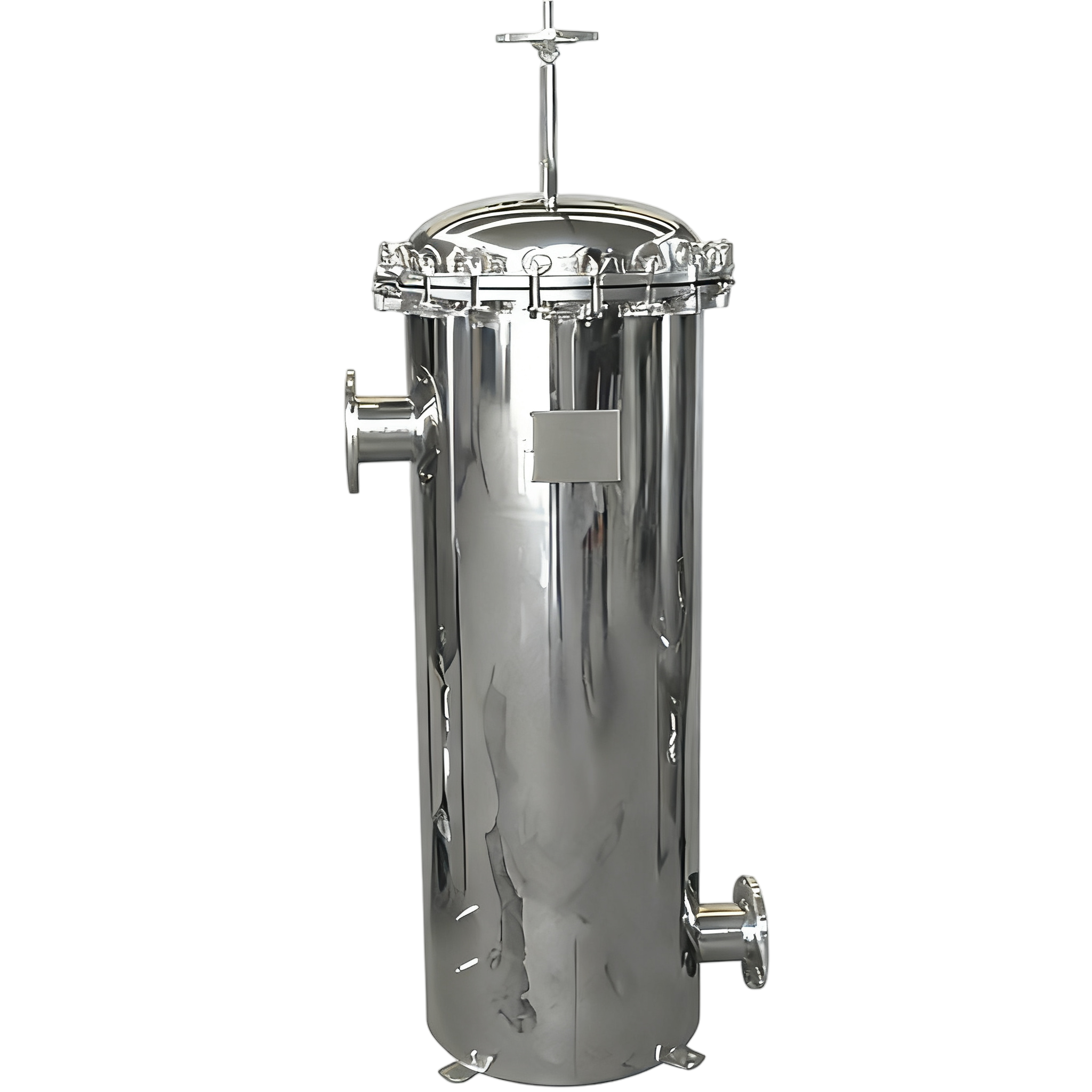

Tank material: SUS304, SUS316L
Design pressure: 0.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)
Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber
Interface method: Standard flange
Opening method: Quick opening
Filtering accuracy: 0.1um-100um
Surface treatment: Polishing/matte sandblasting
Does it has legs: No
Filter cartridge form: Flat holding, 222/226 socket filter cartridge

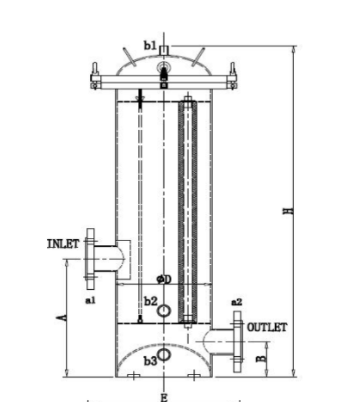

| Model |
No.of filter cartridges (pcs) |
Length of filter cartridges | A
(mm) | B
(mm) | H
(mm) | D
(mm) | E
(mm) |
Inlet/Outlet
a1/a2 | Discharge
b2/b3 |
| KY-KZ-JM5-30'' | 5 | 30'' | 180 | 80 | 1090 | ∅200 | 360 | DN40 | 1/2" |
| KY-KZ-JM5-40'' | 5 | 40'' | 180 | 80 | 1340 | ∅200 | 360 | DN40 | 1/2" |
| KY-KZ-JM7-30'' | 7 | 30'' | 600 | 120 | 1160 | ∅250 | 410 | DN40 | 1/2" |
| KY-KZ-JM7-40'' | 7 | 40'' | 800 | 120 | 1410 | ∅250 | 410 | DN50 | 1/2" |
| KY-KZ-JM10-30'' | 10 | 30'' | 600 | 150 | 1170 | ∅300 | 460 | DN50 | 1/2" |
| KY-KZ-JM10-40'' | 10 | 40'' | 800 | 150 | 1420 | ∅300 | 460 | DN50 | 1/2" |
| KY-KZ-JM15-30'' | 15 | 30'' | 600 | 150 | 1180 | ∅350 | 510 | DN65 | 3/4" |
| KY-KZ-JM15-40'' | 15 | 40'' | 800 | 150 | 1430 | ∅350 | 510 | DN65 | 3/4" |
| KY-KZ-JM20-30'' | 20 | 30'' | 600 | 150 | 1190 | ∅400 | 560 | DN65 | 3/4" |
| KY-KZ-JM20-40'' | 20 | 40'' | 800 | 150 | 1440 | ∅400 | 560 | DN65 | 3/4" |
| KY-KZ-JM25-30'' | 25 | 30'' | 600 | 150 | 1200 | ∅450 | 610 | DN80 | 3/4" |
| KY-KZ-JM25-40'' | 25 | 40'' | 800 | 150 | 1450 | ∅450 | 610 | DN80 | 3/4" |

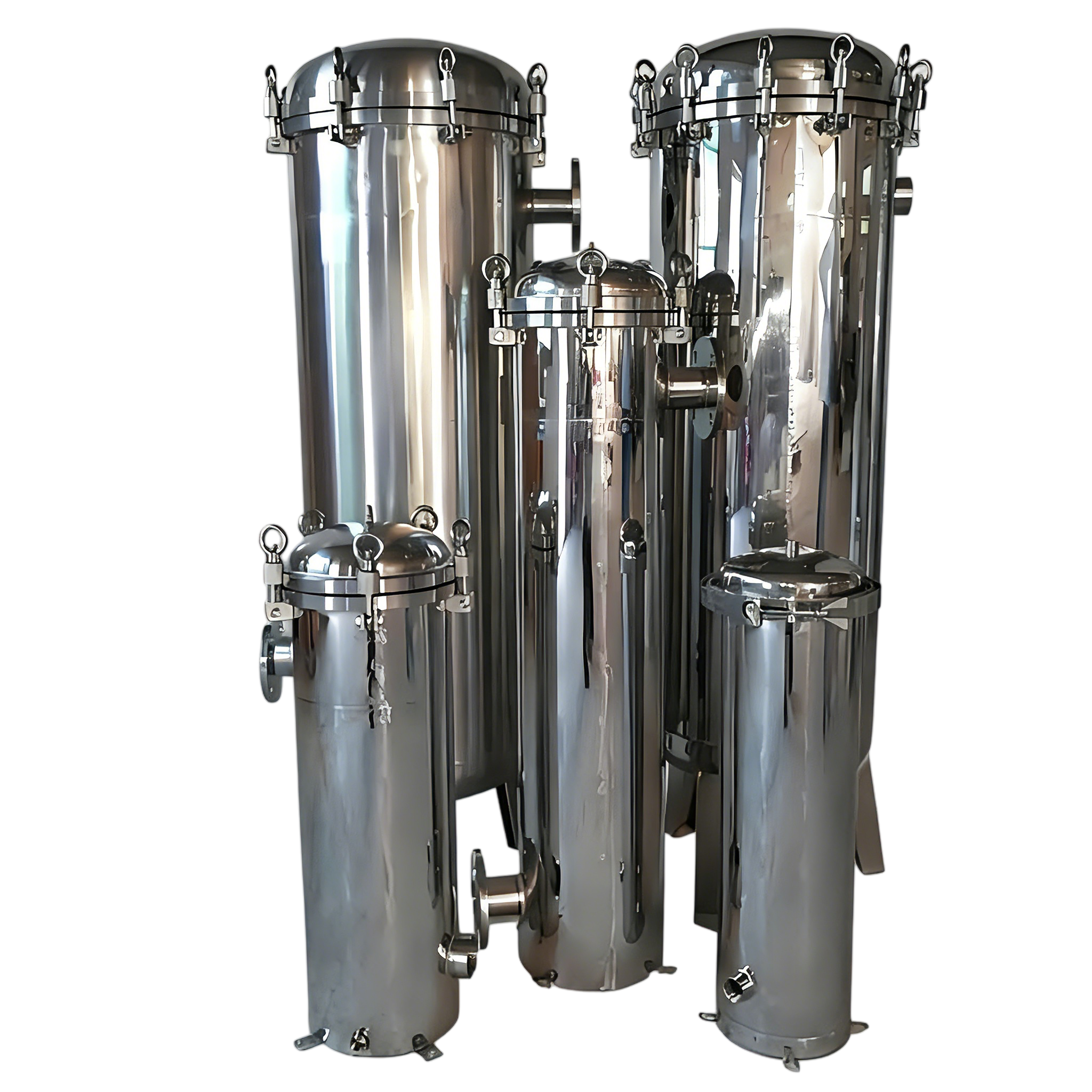

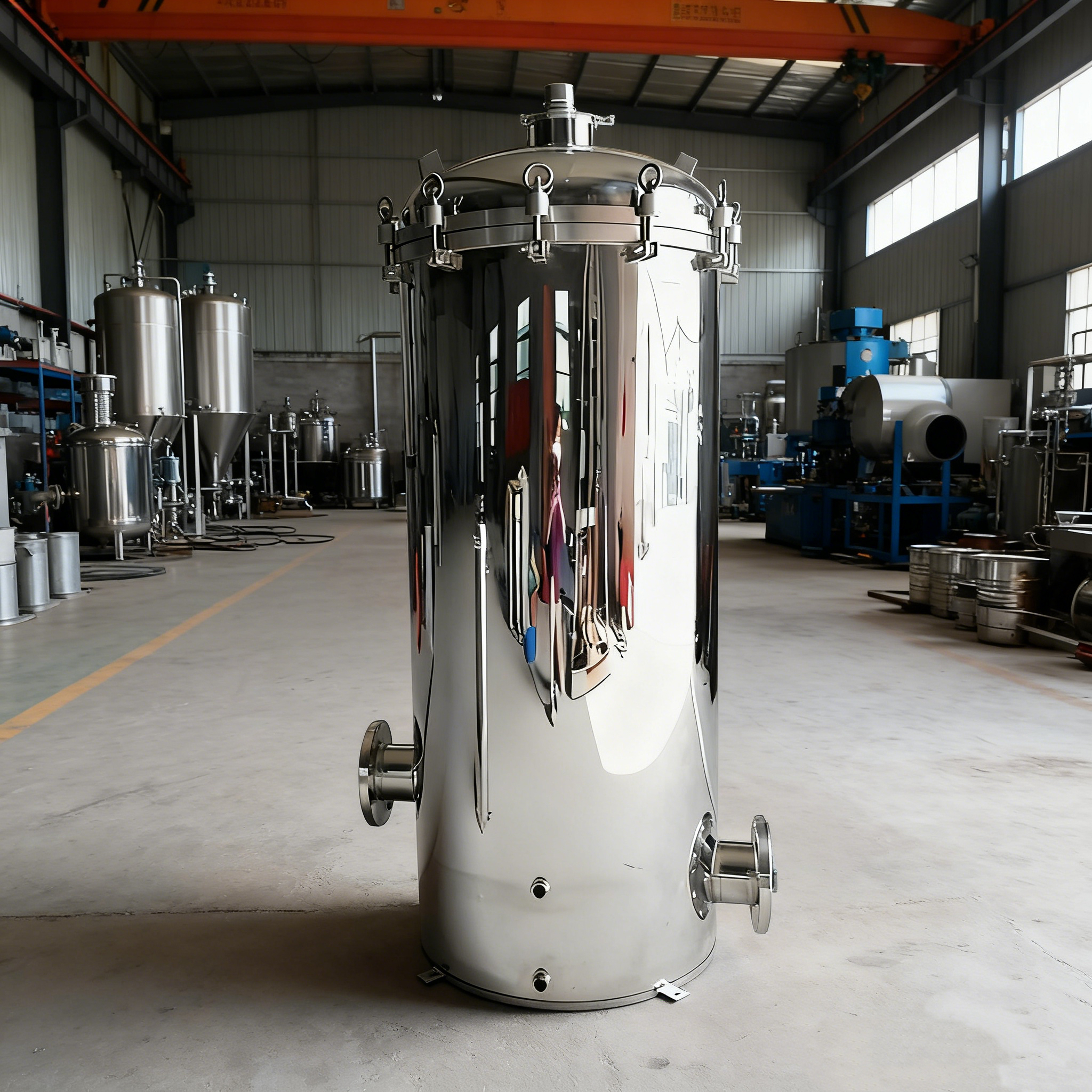

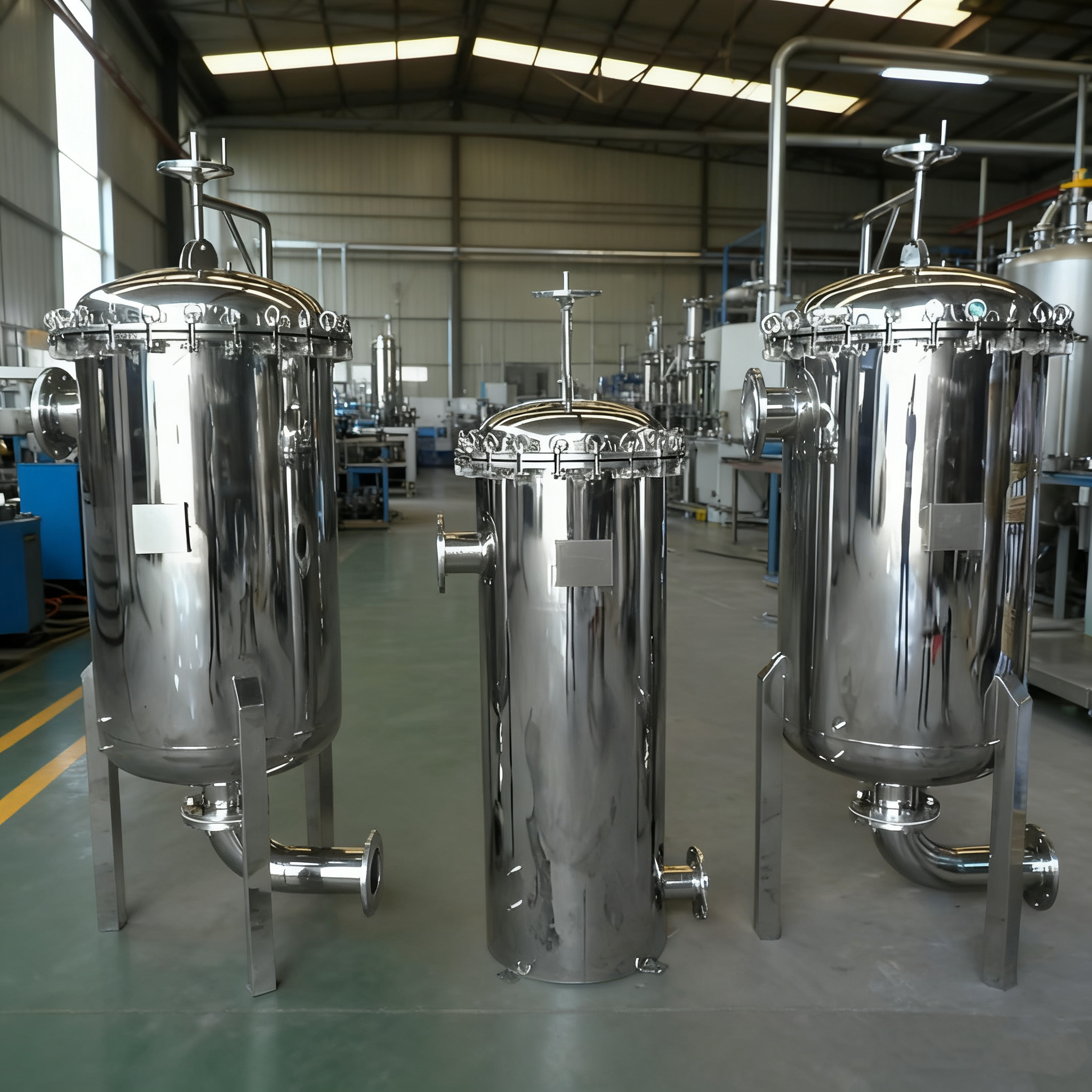

Revolutionary Legless Design Philosophy
Space-Optimized Architecture
Zero-Footprint Mounting: Direct pipeline or skid mounting eliminates traditional leg structures, reducing overall footprint by 40-60%
Low-Profile Integration: Overall height reduced by 25-35% compared to leg-type designs, enabling installation in height-constrained spaces
Flexible Orientation: Can be mounted horizontally, vertically, or at any angle to maximize space utilization in complex piping arrangements

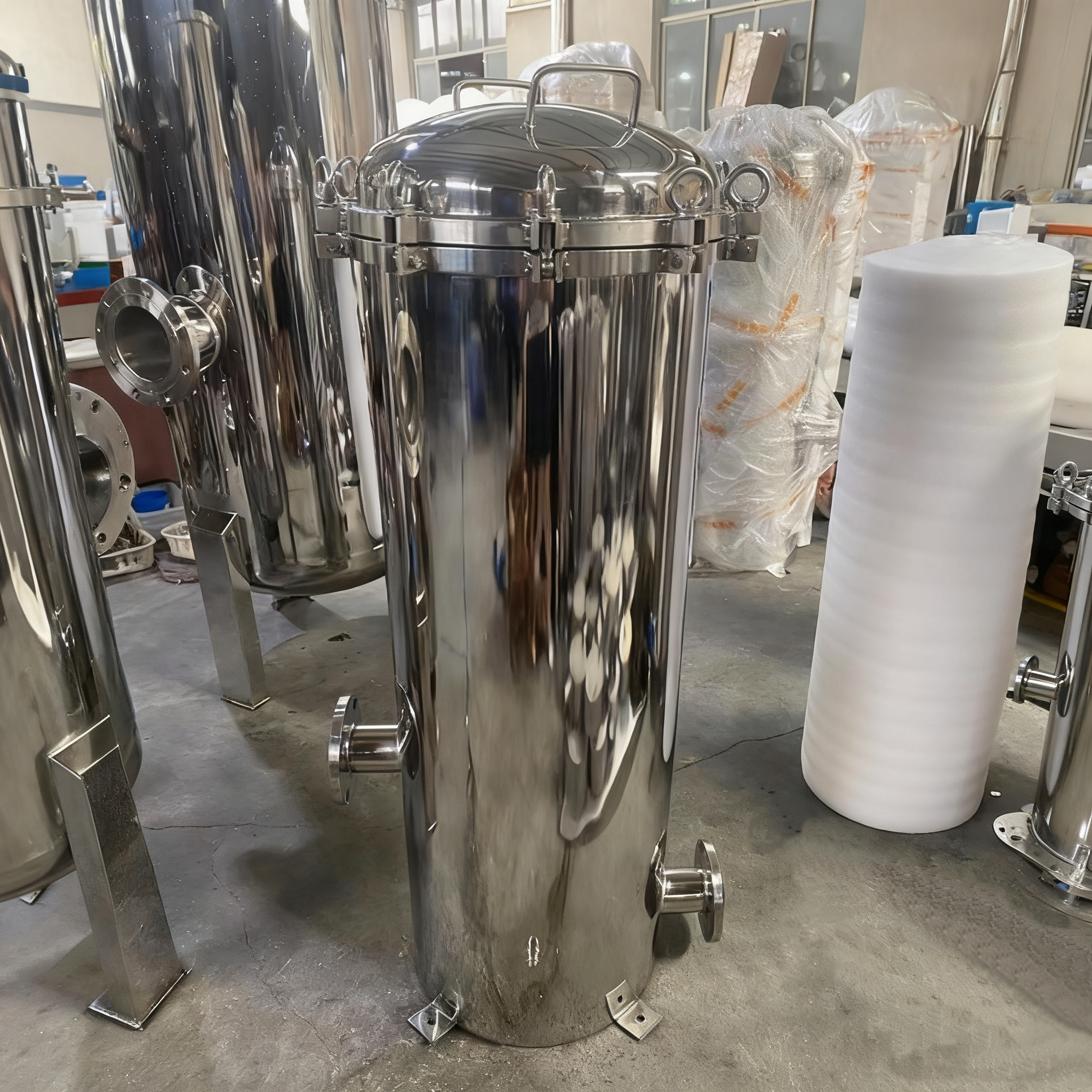

Advanced Quick-Open Mechanism
Patented Swing-Arm System: Heavy-duty stainless steel swing-arm with quick-release latch enables single-handed, tool-free access in under 10 seconds
Integrated Hinge Design: Precision-engineered hinge integrated directly into housing body, eliminating external hinge assemblies and protrusions
Self-Aligning Seal System: Automatic alignment ensures perfect seal engagement every time, even in hard-to-reach installations
Key Features & Operational Advantages
1. Unmatched Space Efficiency
Direct Pipe Mounting: Mounts directly on pipeline supports or structural members, eliminating dedicated floor space
Modular Stackability: Multiple units can be stacked vertically or arranged in compact arrays
OEM-Friendly Design: Perfect for integration into equipment manufacturers' products and packaged systems
2. Enhanced Accessibility
360° Access: No legs obstruct maintenance access from any direction
Ergonomic Operation: Lower center of gravity and improved balance make operation smoother and safer
Quick Disconnect: Entire housing can be quickly disconnected for off-line service if required
3. Superior Performance
Precision Filtration: Maintains exact filtration ratings from 0.1 to 100 microns with zero bypass
Optimized Flow Paths: Computational Fluid Dynamics (CFD)-optimized internal geometry minimizes pressure drop
Full CIP/SIP Capability: Self-draining design with no pockets or dead legs for complete cleanability
Industry Applications
Pharmaceutical & Biotech
Skid-Mounted Systems: Compact filtration for purification skids and process equipment
Mobile Carts: Portable filtration for buffer preparation and cleanroom applications
Point-of-Use Installations: Direct mounting on process equipment without floor space
Food & Beverage
Processing Lines: Direct integration into filling lines and processing equipment
Compact Plants: Space-constrained production facilities and microbreweries
Mobile Processing: Temporary or seasonal processing installations
Chemical Processing
Pilot Plants: Compact filtration for development and scale-up systems
Analytical Systems: Integration into laboratory and quality control equipment
Batch Processing: Flexible mounting for multi-product facilities
Water Treatment
Packaged Systems: Compact reverse osmosis and DI system integration
Mobile Units: Emergency response and temporary water treatment
Building Systems: Mechanical room installations with space constraints
Installation & Integration Benefits
Simplified Installation
Reduced Labor: No leg alignment or leveling required
Flexible Placement: Can be installed in locations where leg-type filters won't fit
Quick Integration: Standard mounting patterns for fast OEM integration
Maintenance Advantages
Unobstructed Access: No legs to work around during maintenance
Easy Handling: Lighter weight and better balance for safer handling
Quick Removal: Entire unit can be easily removed if necessary
Cost Savings
Reduced Floor Space: Lower facility costs through better space utilization
Lower Installation Costs: Simpler mounting reduces installation time and complexity
Reduced Structural Requirements: Lighter weight requires less support structure
Why Choose Our Legless Quick-Open Filter?
Maximum Space Utilization: Achieve higher filtration capacity in less space than ever before
Seamless Integration: Designed from the ground up for modern system integration
Maintenance Excellence: Unobstructed access and ergonomic design reduce maintenance time and effort
Future-Proof Design: Modular and flexible for changing process requirements
Proven Performance: Combines space efficiency with uncompromised filtration performance
