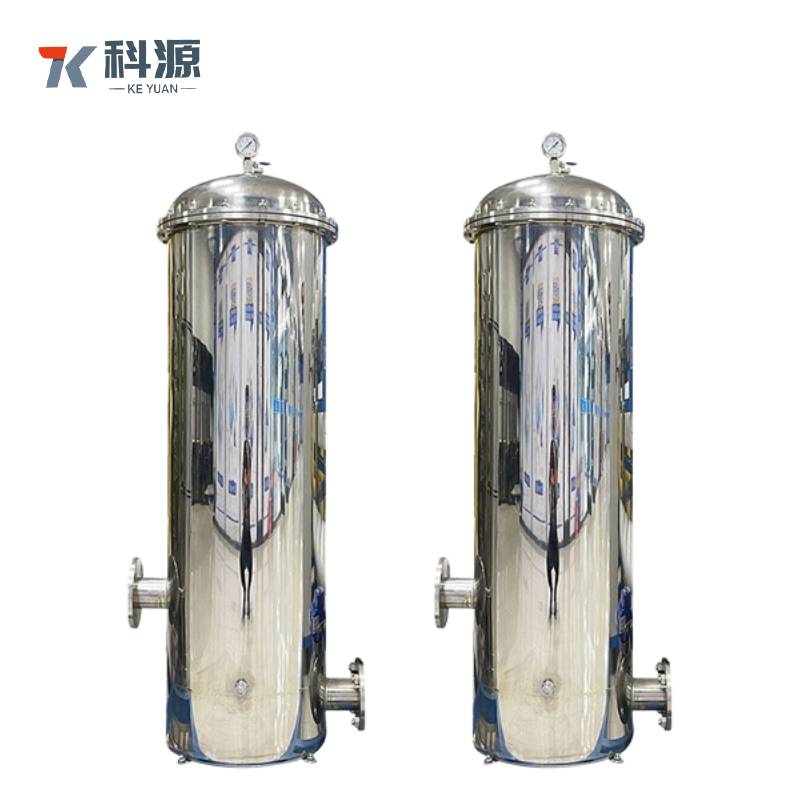

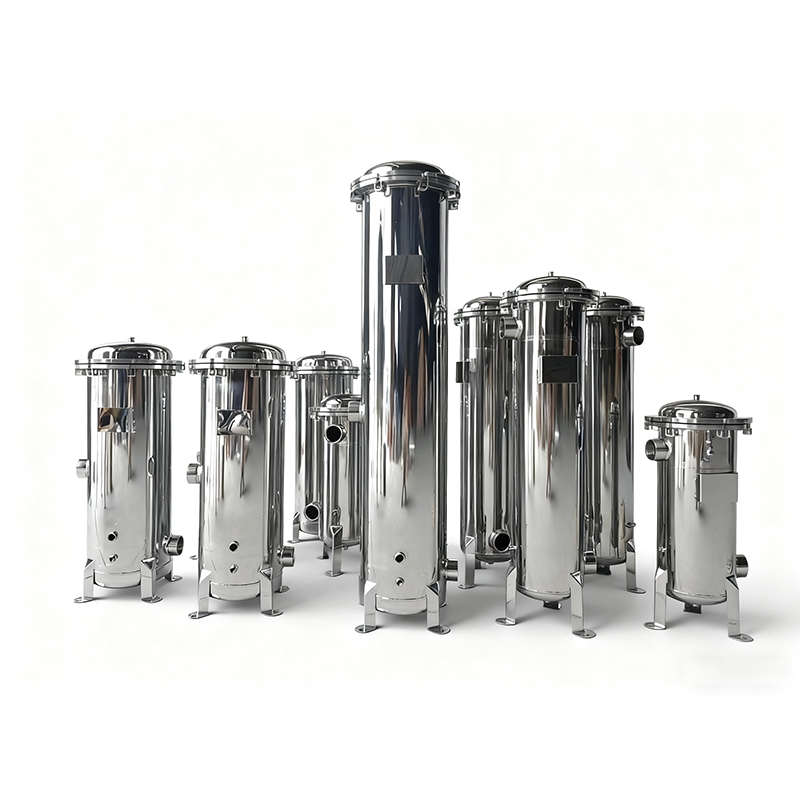

Technical Specifications
| Model | No.of filter cartridges(pcs) | Length of filter cartridges | A (mm) | B (mm) | H (mm) | D (mm) | E (mm) | Inlet/Outlet a1/a2 | Discharge b2/b3 | Pressure egauge b1 |
| KY-FL-JM5-30” | 5 | 30” | 180 | 75 | 1060 | ∅200 | 360 | DN40 | 1/2" | 1/4" |
| KY-FL-JM5-40” | 5 | 40” | 180 | 75 | 1310 | ∅200 | 360 | DN40 | 1/2" | 1/4" |
| KY-FL-JM7-30” | 7 | 30” | 220 | 120 | 1120 | ∅250 | 410 | DN40 | 1/2" | 1/4" |
| KY-FL-JM7-40” | 7 | 40” | 220 | 120 | 1370 | ∅250 | 410 | DN50 | 1/2" | 1/4" |
| KY-FL-JM10-30” | 10 | 30” | 600 | 150 | 1170 | ∅300 | 460 | DN50 | 1/2" | 1/4" |
| KY-FL-JM10-40” | 10 | 40” | 800 | 150 | 1420 | ∅300 | 460 | DN50 | 1/2" | 1/4" |
| KY-FL-JM15-30” | 15 | 30” | 600 | 150 | 1180 | ∅350 | 510 | DN50 | 3/4" | 1/4" |
| KY-FL-JM15-40” | 15 | 40” | 800 | 150 | 1430 | ∅350 | 510 | DN65 | 3/4" | 1/4" |
| KY-FL-JM20-30” | 20 | 30” | 600 | 150 | 1190 | ∅400 | 560 | DN65 | 3/4" | 1/4" |
| KY-FL-JM20-40” | 20 | 40” | 800 | 150 | 1440 | ∅400 | 560 | DN65 | 3/4" | 1/4" |
| KY-FL-JM25-30” | 25 | 30” | 600 | 150 | 1200 | ∅450 | 610 | DN80 | 3/4" | 1/4" |
| KY-FL-JM25-40” | 25 | 40” | 800 | 150 | 1450 | ∅450 | 610 | DN80 | 3/4" | 1/4" |
| KY-FL-JM30-30” | 30 | 30” | 600 | 150 | 1220 | ∅500 | 660 | DN80 | 1" | 1/4" |
| KY-FL-JM30-40” | 30 | 40” | 800 | 150 | 1470 | ∅500 | 660 | DN80 | 1" | 1/4" |
| KY-FL-JM36-30” | 36 | 30” | 600 | 150 | 1240 | ∅550 | 750 | DN100 | 1" | 1/4" |
| KY-FL-JM36-40” | 36 | 40” | 800 | 150 | 1490 | ∅550 | 750 | DN100 | 1" | 1/4" |
| KY-FL-JM45-30” | 45 | 30” | 700 | 200 | 1320 | ∅600 | 800 | DN100 | 1" | 1/4" |
| KY-FL-JM45-40” | 45 | 40” | 900 | 200 | 1570 | ∅600 | 800 | DN100 | 1" | 1/4" |
| KY-FL-JM55-30” | 55 | 30” | 700 | 200 | 1330 | ∅650 | 850 | DN125 | 1" | 1/4" |
| KY-FL-JM55-40” | 55 | 40” | 900 | 200 | 1580 | ∅650 | 850 | DN125 | 1" | 1/4" |
| KY-FL-JM65-30” | 65 | 30” | 700 | 200 | 1340 | ∅700 | 900 | DN125 | 1" | 1/4" |
| KY-FL-JM65-40” | 65 | 40” | 900 | 200 | 1590 | ∅700 | 900 | DN150 | 1" | 1/4" |
| KY-FL-JM75-30” | 75 | 30” | 700 | 200 | 1360 | ∅750 | 960 | DN150 | 1" | 1/4" |
| KY-FL-JM75-40” | 75 | 40” | 900 | 200 | 1610 | ∅750 | 960 | DN150 | 1-1/2" | 1/4" |
| KY-FL-JM80-30” | 80 | 30” | 700 | 200 | 1380 | ∅800 | 1010 | DN150 | 1-1/2" | 1/4" |
| KY-FL-JM80-40” | 80 | 40” | 900 | 200 | 1630 | ∅800 | 1010 | DN175 | 1-1/2" | 1/4" |
| KY-FL-JM90-30” | 90 | 30” | 700 | 200 | 1380 | ∅850 | 1060 | DN175 | 1-1/2" | 1/4" |
| KY-FL-JM90-40” | 90 | 40” | 900 | 200 | 1630 | ∅850 | 1060 | DN175 | 1-1/2" | 1/4" |
| KY-FL-JM100-30” | 100 | 30” | 700 | 200 | 1400 | ∅900 | 1110 | DN200 | 1-1/2" | 1/4" |
| KY-FL-JM100-40” | 100 | 40” | 900 | 200 | 1650 | ∅900 | 1110 | DN200 | 1-1/2" | 1/4" |
| KY-FL-JM120-30” | 120 | 30” | 800 | 250 | 1480 | ∅1000 | 1240 | DN200 | 1-1/2" | 1/4" |
| KY-FL-JM120-40” | 120 | 40” | 1000 | 250 | 1730 | ∅1000 | 1240 | DN200 | 1-1/2" | 1/4" |
| KY-FL-JM140-30” | 140 | 30” | 800 | 250 | 1510 | ∅1100 | 1340 | DN250 | 2" | 1/4" |
| KY-FL-JM140-40” | 140 | 40” | 1000 | 250 | 1760 | ∅1100 | 1340 | DN250 | 2" | 1/4" |
| KY-FL-JM160-30” | 160 | 30” | 800 | 250 | 1560 | ∅1200 | 1440 | DN250 | 2" | 1/4" |
| KY-FL-JM160-40” | 160 | 40” | 1000 | 250 | 1810 | ∅1200 | 1440 | DN250 | 2" | 1/4" |
Key Features & Practical Advantages
1. Cost-Effective Design
Simplified Construction: Eliminates expensive precision machining and complex mechanisms
Standard Components: Utilizes readily available, low-cost gaskets, bolts, and replacement parts
Competitive Pricing: Optimized design provides maximum value for standard applications
2. Easy Installation & Maintenance
Familiar Connection Method: Standard flanges are universally understood by maintenance personnel
No Special Tools Required: Standard wrenches and basic tools sufficient for all maintenance
Straightforward Operation: Simple open-close operation with conventional bolting
3. Reliable Performance
Proven Design: Time-tested flange and gasket technology with decades of industry validation
Adequate Pressure Rating: Suitable for most common industrial process pressures
Good Chemical Compatibility: 304/316L stainless steel handles majority of industrial fluids
Typical Applications
General Industrial Water Treatment
Cooling Tower Water: Basic side-stream or makeup water filtration
Process Water: General manufacturing process water treatment
Plant Service Water: Filtration for general plant water systems
Basic Chemical Processing
Mild Chemical Solutions: Filtration of non-aggressive process chemicals
Diluted Solutions: Treatment of diluted acids, alkalis, or solvents
Intermediate Products: Filtration of process intermediates
Manufacturing & Facilities
Equipment Protection: Basic protection for pumps, heat exchangers, and nozzles
Plant Utilities: Filtration for HVAC systems, compressors, and general utilities
Maintenance Operations: Temporary or portable filtration setups
Water & Wastewater
Pre-Treatment: Basic pre-filtration for clarification or membrane systems
Recycled Water: Filtration for non-critical water reuse applications
Stormwater: Basic treatment of collected stormwater for non-potable use

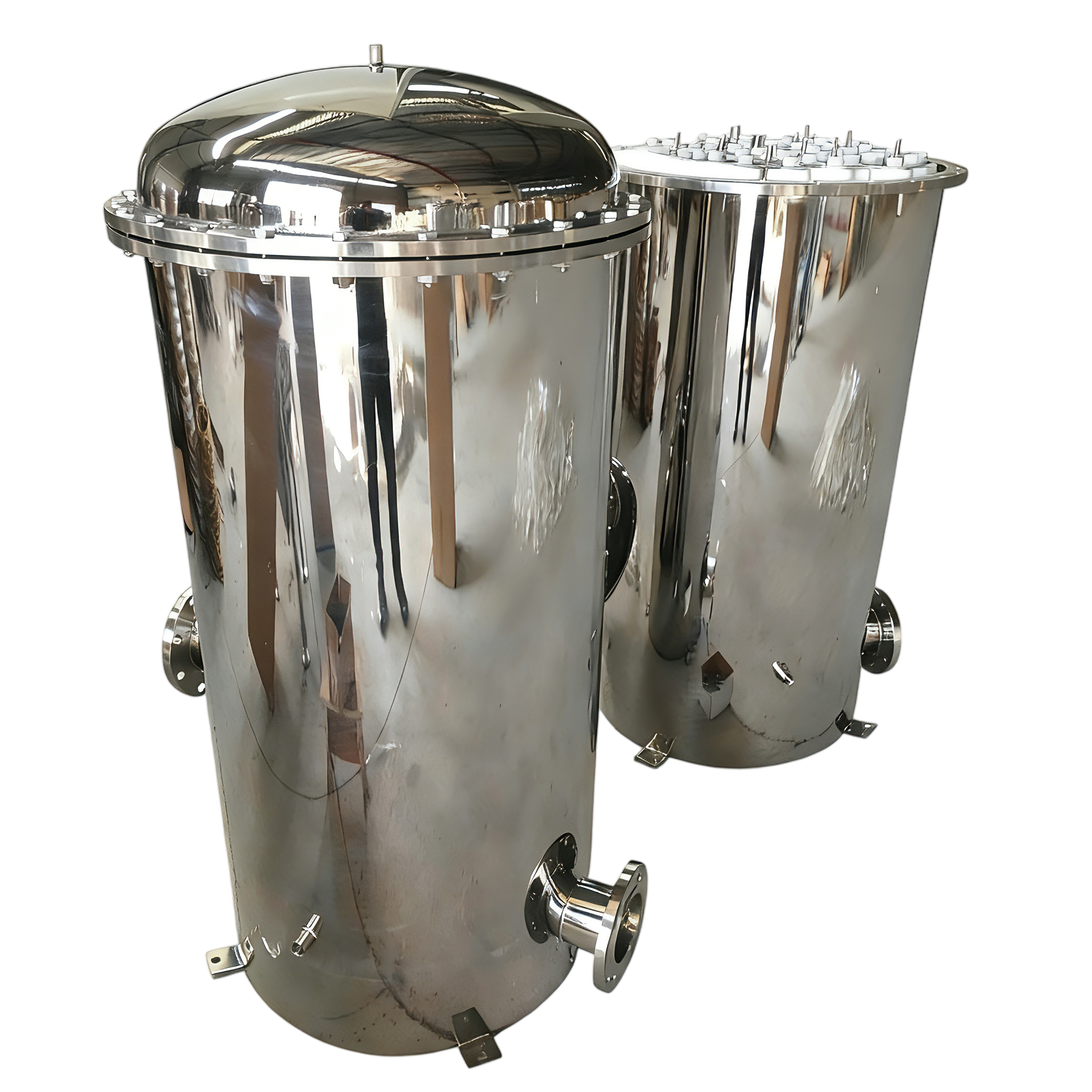

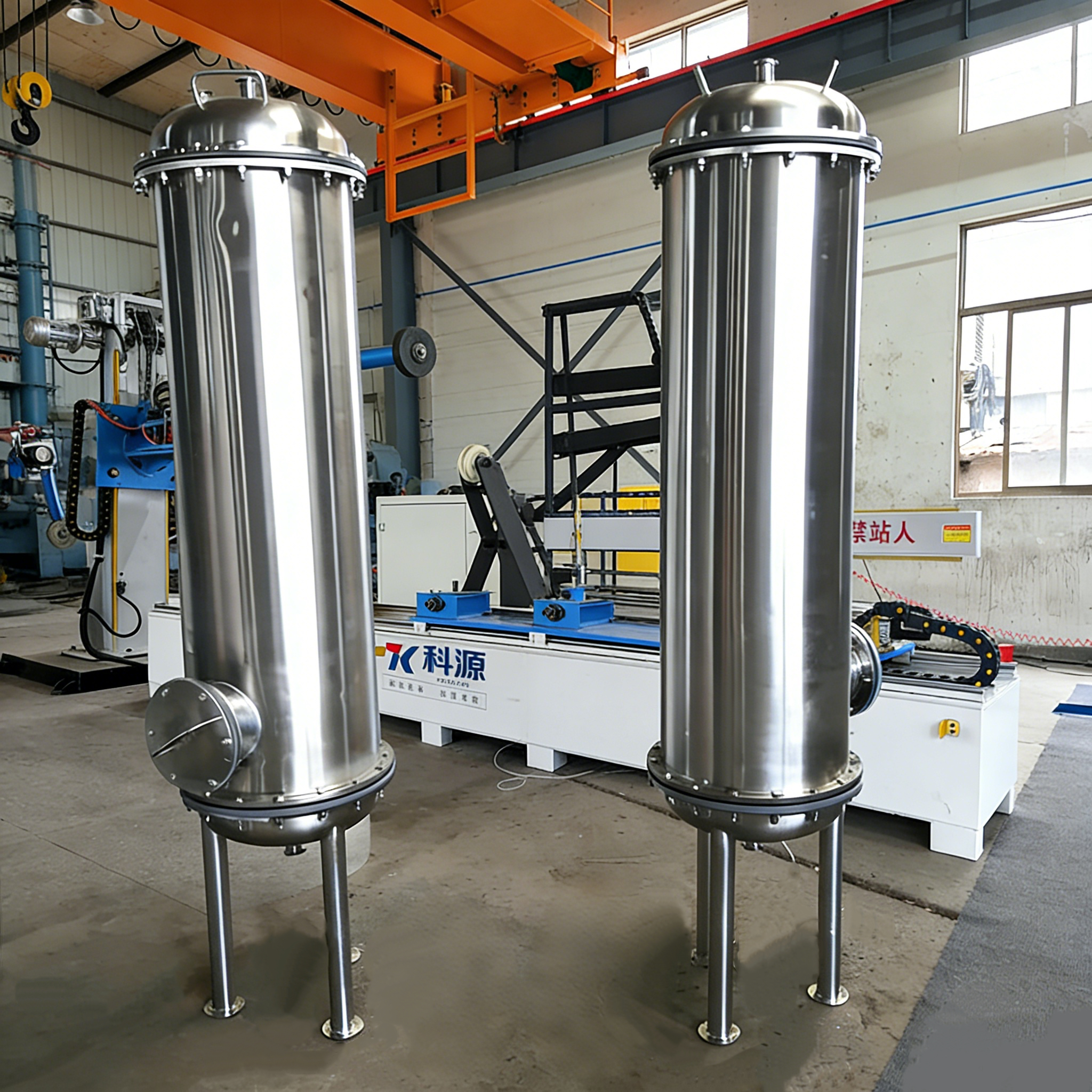

Installation & Operation

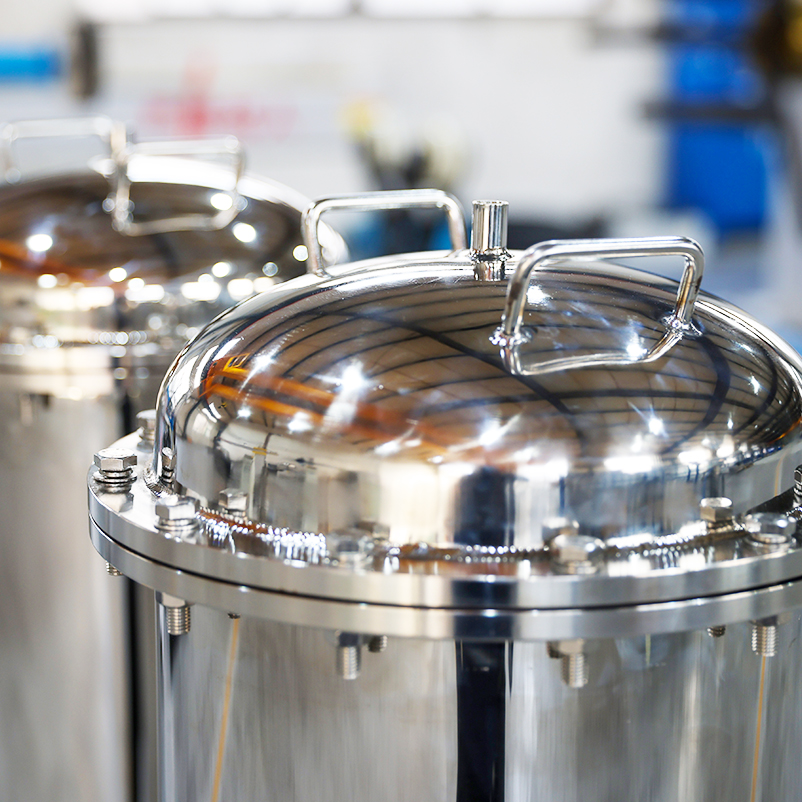

Simple Installation
Direct Flange Connection: Bolts directly to existing piping flanges
Basic Support Requirements: Simple pipe supports or mounting brackets
Standard Procedures: Follows conventional piping installation practices
Straightforward Operation
Manual Operation: Open/close using standard wrenches
Visual Inspection: Basic sight glass or pressure gauge optionsStandard Maintenance: Conventional gasket replacement and cleaning
Basic Safety
Pressure Relief: Optional basic pressure relief devices
Standard Markings: Basic pressure and temperature ratings marked
Conventional Lockout: Standard lockout/tagout compatibility
Maintenance & Service
Routine Maintenance
Gasket Replacement: Standard flat gaskets replaced during cartridge changes
Bolt Inspection: Periodic verification of bolt tightness
Surface Cleaning: Basic external cleaning as needed

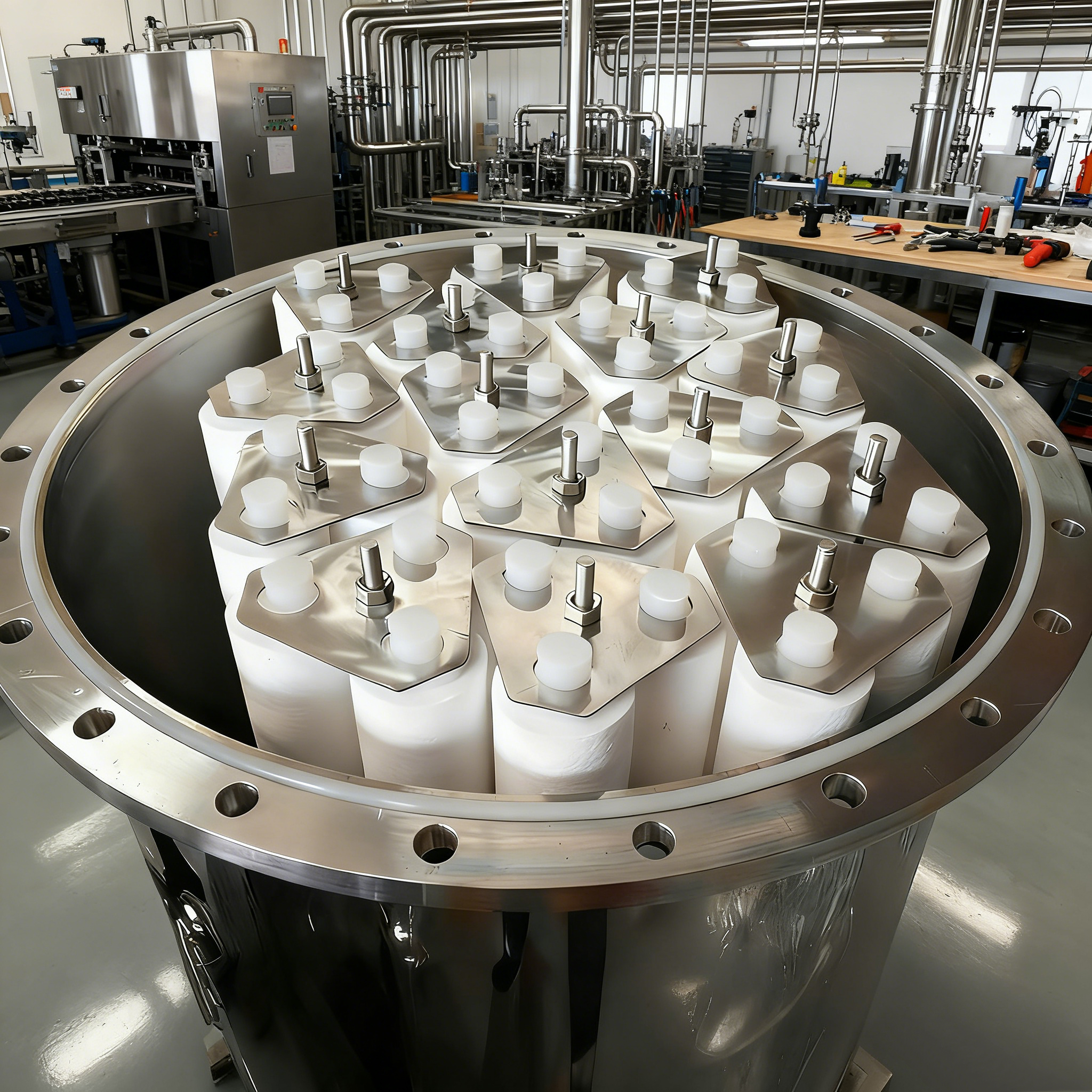

Cartridge Replacement
Standard Procedure: Remove bolts, separate flanges, replace cartridge
No Special Tools: Basic wrenches sufficient for entire procedure
Conventional Handling: Standard cartridge handling practices
Spare Parts
Standard Inventory: Common gaskets and bolts readily available
Minimal Special Parts: Few specialized components requiring specific sourcing
Cost-Effective Replacement: Low-cost consumables and replacement parts
Why Choose Our Ordinary Flange Type Filter?
Excellent Value: Provides reliable filtration at a competitive price point
Simplicity: Easy to understand, install, operate, and maintain
Compatibility: Standard flanges integrate with most existing industrial piping
Proven Reliability: Conventional design with extensive industry experience
Low Operating Costs: Inexpensive consumables and straightforward maintenance
