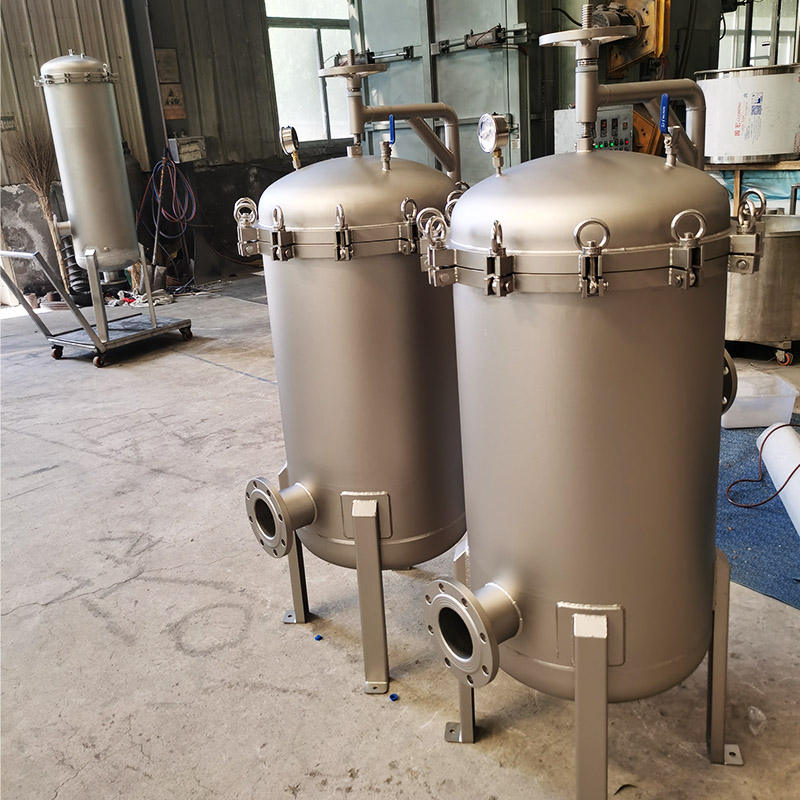

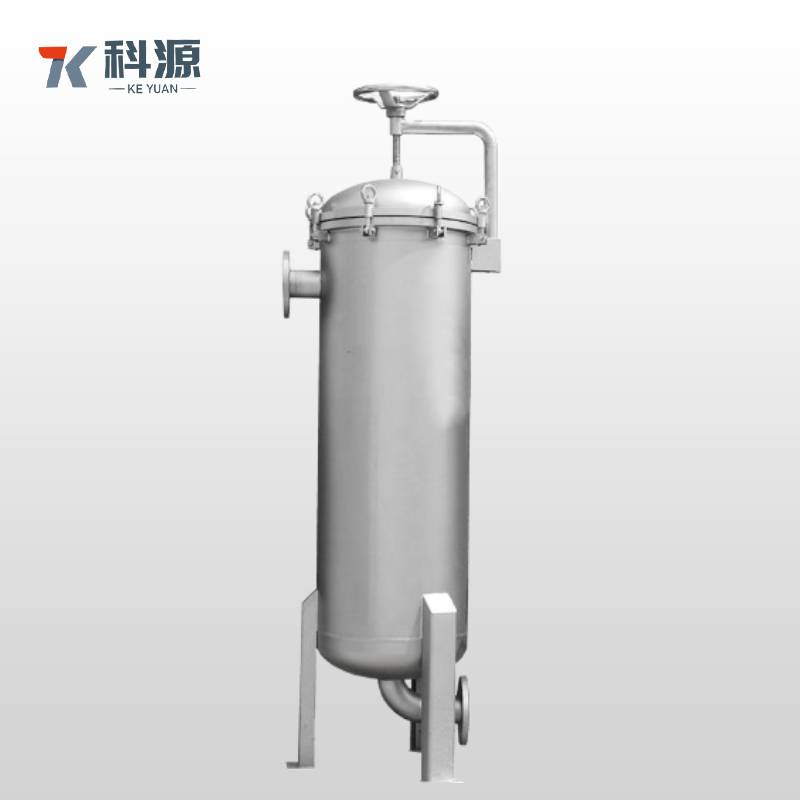

Industrial Stainless Steel High Flow Filter Cartridge Housing 20" 30" 40" for Large Volume Water Treatment with 100-500 GPM Flow Rate

Our Stainless Steel High Flow Filter is engineered to meet the rigorous demands of industrial-scale fluid processing where large volumes and continuous operation are critical. Designed with advanced hydraulic optimization and robust construction, this system delivers exceptional filtration performance with minimal pressure drop, making it the ideal solution for cooling water, process water pretreatment, and other high-volume applications across multiple industries.

Model:
Customized
Brand:
Keyuan

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Specifications

Design pressure: 0.6-1.6Mpa (if greater than this pressure, please specify)

Design temperature: -5 ℃ -40 ℃ (explanation required for temperatures exceeding 80 ℃)

Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber

Interface method: Threaded, standard flange

Recommended replacement pressure difference: 2.0 bar

Maximum replacement pressure difference: 2.4 bar

Surface treatment: Polishing/matte sandblasting

Tank material: SUS304, SUS316L

Model	No.of filter cartridges(pcs)	Lengthof flter cartridges	A (mm)	B (mm)	H (mm)	D (mm)	F (mm)	E (mm)	Inlet/ Outlet a1/a2	Exhaust vent b1	Pressure housing b2	Discharge/ emptying b3	Design flow(m³/h)
KY-DLL-1*40”	1	40"	1320	290	1530	∅200	150	400	DN80	1/4"	1/4"	1/2"	40
KY-DLL-2*40”	2	40"	1480	400	1870	∅400	200	600	DN100	1/4"	1/4"	3/4"	80
KY-DLL-3*40”	3	40"	1500	420	1950	∅450	200	650	DN100	1/4"	1/4"	3/4"	120
KY-DLL-4*40”	4	40"	1530	450	2000	∅500	200	750	DN125	1/4"	1/4"	3/4"	160
KY-DLL-5*40”	5	40"	1560	480	2050	∅550	200	800	DN150	1/4"	1/4"	1"	200
KY-DLL-6*40”	6	40"	1625	570	2250	∅600	250	850	DN200	1/4"	1/4"	1"	240
KY-DLL-7*40”	7	40"	1650	590	2300	∅650	250	900	DN200	1/4"	1/4"	1"	280
KY-DLL-8*40”	8	40"	1680	620	2350	∅700	250	950	DN250	1/4"	1/4"	1"	320
KY-DLL-9*40”	9	40"	1700	640	2400	∅750	250	1000	DN250	1/4"	1/4"	1"	360
KY-DLL-10*40”	10	40"	1800	735	2500	∅800	300	1050	DN300	1/4"	1/4"	1-1/2"	420
KY-DLL-12*40”	12	40"	1830	775	2580	∅850	300	1100	DN350	1/4"	1/4"	1-1/2"	480
KY-DLL-14*40”	14	40"	1850	790	2630	∅900	300	1150	DN350	1/4"	1/4"	1-1/2"	560

Performance Advantages
1. Superior Flow Characteristics
Minimal Pressure Drop: Typically <5 PSI at maximum flow rates, reducing pumping energy costs
High Dirt-Holding Capacity: 5-10 times greater than standard filters, extending service cycles
Uniform Flow Distribution: Patented inlet diffuser ensures equal loading across all cartridges

2. Operational Efficiency
Extended Service Life: Large media area and optimized flow reduce change frequency by 60-80%
Easy Maintenance: Top-access design with swing-bolt or quick-release closure for fast cartridge changes
Continuous Operation: Optional dual-chamber systems with divert valves for uninterrupted flow

Installation & Operational Benefits

Space Optimization

Compact Footprint: High flow capacity in minimal floor space

Flexible Orientation: Can be installed vertically or horizontally

Easy Access: Designed for maintenance without special equipment

Cost Efficiency

Reduced Energy Consumption: Low pressure drop design saves pumping costs

Extended Filter Life: Large media area and optimized flow extend service cycles

Minimal Maintenance: Simple design with few moving parts reduces upkeep

Safety & Compliance

Material Traceability: Full mill test reports and material certifications

Quality Assurance: ISO 9001 manufacturing with hydrostatic testing
