Technical Specifications
Tank material: SUS304, SUS316L
Design pressure: 0.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)
Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber
Interface method: Standard flange
Opening method: Quick opening
Filtering accuracy: 0.1um-100um
Surface treatment: Polishing/matte sandblasting
Does it has legs: Yes
Filter cartridge form: Flat holding, 222/226 socket filter cartridge
| Model | No.of filter cartridges (pcs) | Length of filter cartridges | A (mm) | B (mm) | H (mm) | D (mm) | F (mm) | Inlet/Outlet a1/a2 | Discharge b2 |
| KY-KZJ-JM5-30" | 5 | 30'' | 600 | 250 | 1250 | ∅200 | 120 | DN40 | 1/2" |
| KY-KZJ-JM5-40" | 5 | 40'' | 700 | 250 | 1500 | ∅200 | 120 | DN40 | 1/2" |
| KY-KZJ-JM7-30" | 7 | 30'' | 700 | 300 | 1300 | ∅250 | 150 | DN40 | 1/2" |
| KY-KZJ-JM7-40" | 7 | 40'' | 800 | 300 | 1550 | ∅250 | 150 | DN50 | 1/2" |
| KY-KZJ-JM10-30" | 10 | 30'' | 700 | 360 | 1380 | ∅300 | 200 | DN50 | 1/2" |
| KY-KZJ-JM10-40" | 10 | 40'' | 900 | 360 | 1620 | ∅300 | 200 | DN50 | 1/2" |
| KY-KZJ-JM15-30" | 15 | 30'' | 800 | 380 | 1420 | ∅350 | 200 | DN65 | 3/4" |
| KY-KZJ-JM15-40" | 15 | 40'' | 900 | 380 | 1660 | ∅350 | 200 | DN65 | 3/4" |
| KY-KZJ-JM20-30" | 20 | 30'' | 800 | 400 | 1460 | ∅400 | 200 | DN65 | 3/4" |
| KY-KZJ-JM20-40" | 20 | 40'' | 900 | 400 | 1700 | ∅400 | 200 | DN65 | 3/4" |
| KY-KZJ-JM25-30" | 25 | 30'' | 800 | 460 | 1530 | ∅450 | 250 | DN80 | 3/4" |
| KY-KZJ-JM25-40" | 25 | 40'' | 1000 | 460 | 1770 | ∅450 | 250 | DN80 | 3/4" |

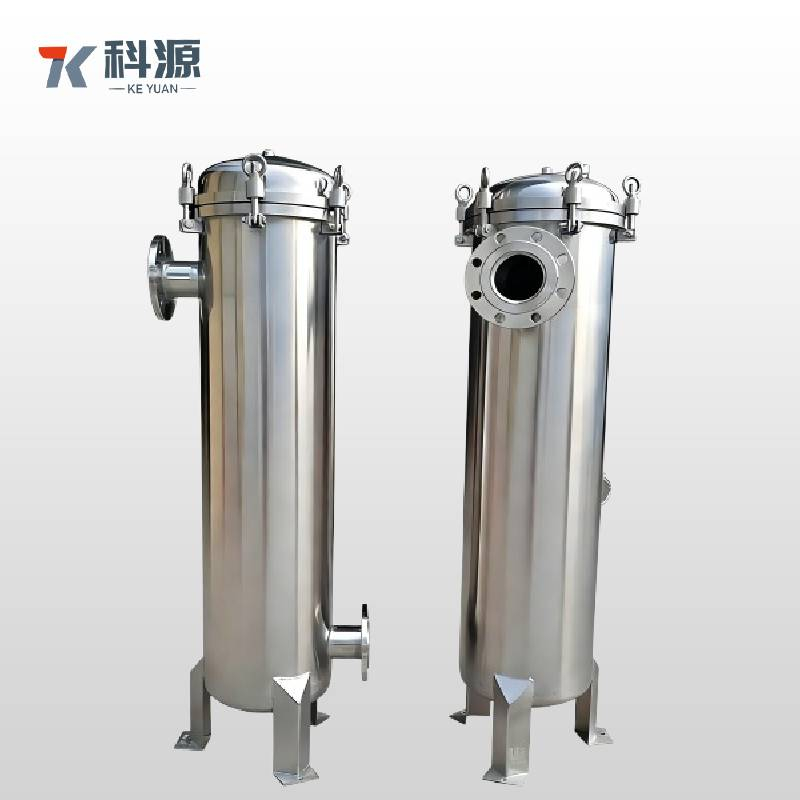

Robust Leg-Supported Design
Integrated Structural Stability
Heavy-Duty Support Legs: Four reinforced stainless steel legs with adjustable leveling feet provide maximum stability on uneven surfaces
Optimized Center of Gravity: Low-profile leg design positions weight directly over support points, preventing tipping during operation and maintenance
Vibration Dampening: Rubber-insulated foot pads reduce vibration transmission and prevent "walking" during high-flow operation
Enhanced Accessibility & Ergonomics
Optimal Working Height: Legs position filter at ergonomic height (typically 30-36 inches) for comfortable operation without bending or stretching
360° Maintenance Access: Ample clearance under housing allows complete access from all sides for inspection and maintenance
Integrated Lifting Points: Built-in lifting lugs or handles for safe relocation when required
Key Features & Advantages
1. Superior Stability & Safety
Rock-Solid Installation: Four-point support prevents movement during pressure cycling and flow variations
Earthquake Resistance: Optional seismic bracing available for high-risk areas
Load-Bearing Capacity: Legs rated for 5x operational weight for maximum safety margin
2. Ergonomic Operation
Comfortable Working Height: Reduces operator fatigue during filter changes and maintenance
Easy Cartridge Handling: Optimal height for safe cartridge insertion and removal
Clear Visibility: Sight glasses and gauges positioned at natural eye level
3. Maintenance Efficiency
Tool-Free Access: Swing-bolt or quick-release mechanism allows opening in under 30 seconds
Easy Cleaning: Ample under-carriage clearance for thorough floor cleaning and inspection
Industry Applications
Pharmaceutical & Biotechnology
Buffer & Media Preparation: Stable platforms for critical process filtration
Vent Filtration: Secure mounting for tank vent filters requiring regular integrity testing
Food & Beverage Processing
Final Product Filtration: Stable operation during high-volume production runs
Ingredient Processing: Secure mounting for viscous product filtration
Brewery & Winery: Stable platforms for product polishing and clarification
Chemical & Industrial
Process Chemicals: Secure containment for hazardous material filtration
Catalyst Recovery: Stable operation during catalyst separation processes
Coolant Filtration: Vibration-resistant mounting for machining coolant systems
Water Treatment
RO Pretreatment: Stable pre-filtration for membrane systems
Process Water: Reliable operation in high-flow water treatment applications
Laboratory Systems: Secure benchtop or floor-standing laboratory filtration
Installation & Maintenance Benefits
Easy Installation
Self-Supporting: Requires no additional support structure or framing
Leveling Simplicity: Adjustable feet compensate for uneven floors
Pre-assembled: Ships fully assembled with legs attached
Maintenance Advantages
Stand-Up Maintenance: No bending or kneeling required for routine service
Easy Component Access: All connections and gauges at comfortable working height
Spill Management: Optional drip tray catches minor spills during cartridge changes
Operational Safety
Tip Prevention: Wide leg stance prevents tipping during operation
Secure Footing: Non-slip rubber feet prevent movement on smooth surfaces
Clearance Safety: Adequate under-housing clearance prevents tripping hazards
Why Choose Our Leg-Supported Quick-Open Filter?
Unmatched Stability: Provides the most stable filtration platform for critical processes
Ergonomic Excellence: Designed for operator comfort and safety during maintenance
Installation Simplicity: Ready-to-use with minimal site preparation required
Flexible Configuration: Multiple leg options to meet specific site requirements
Proven Reliability: Thousands of installations in demanding industrial environments
