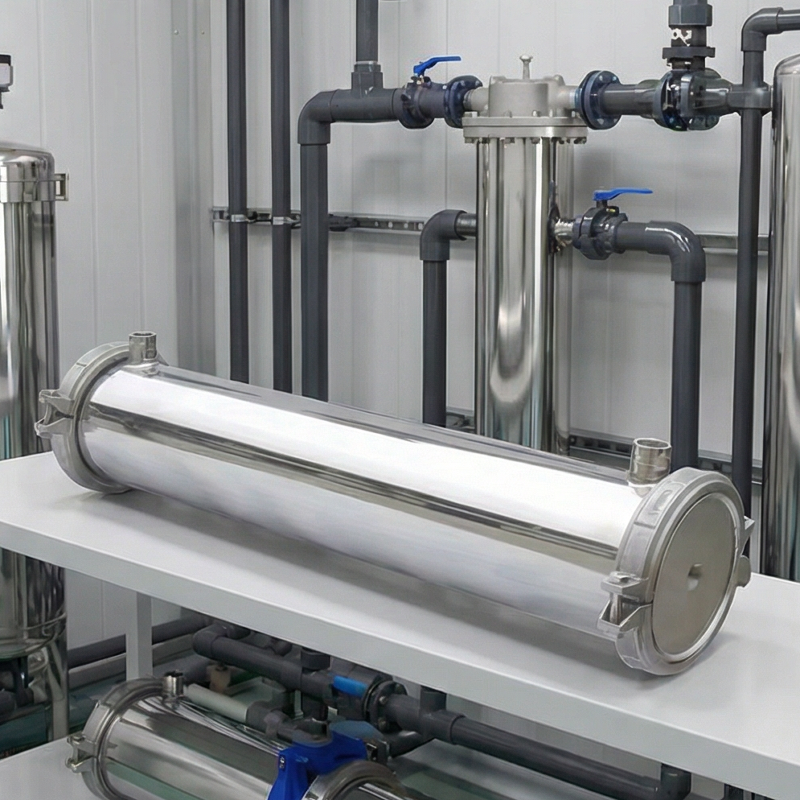

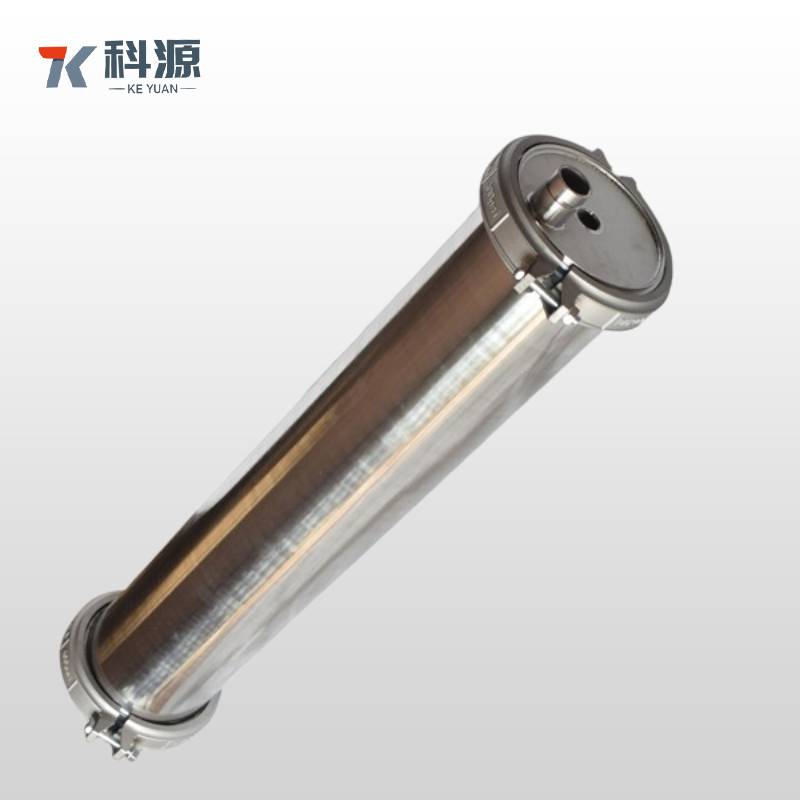

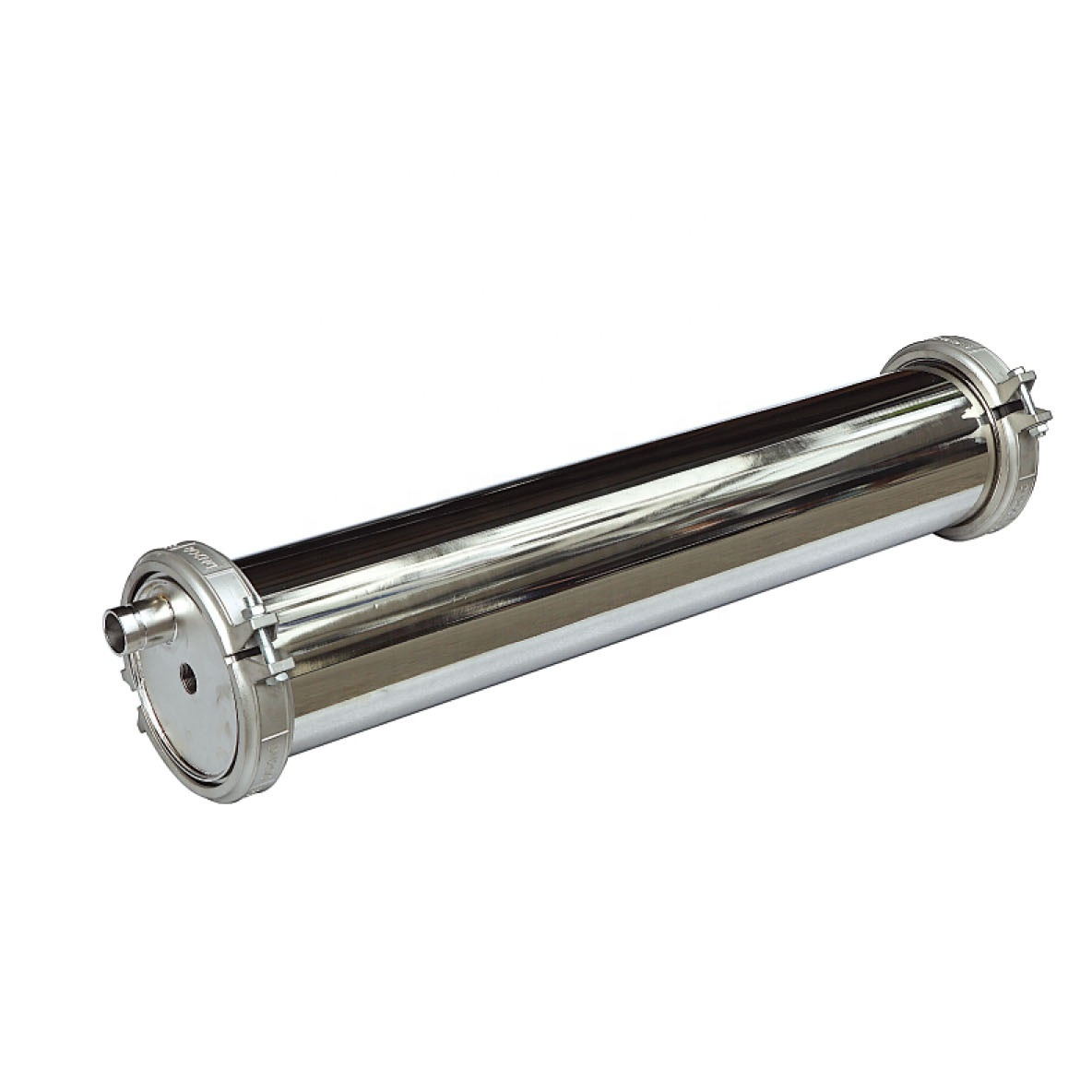

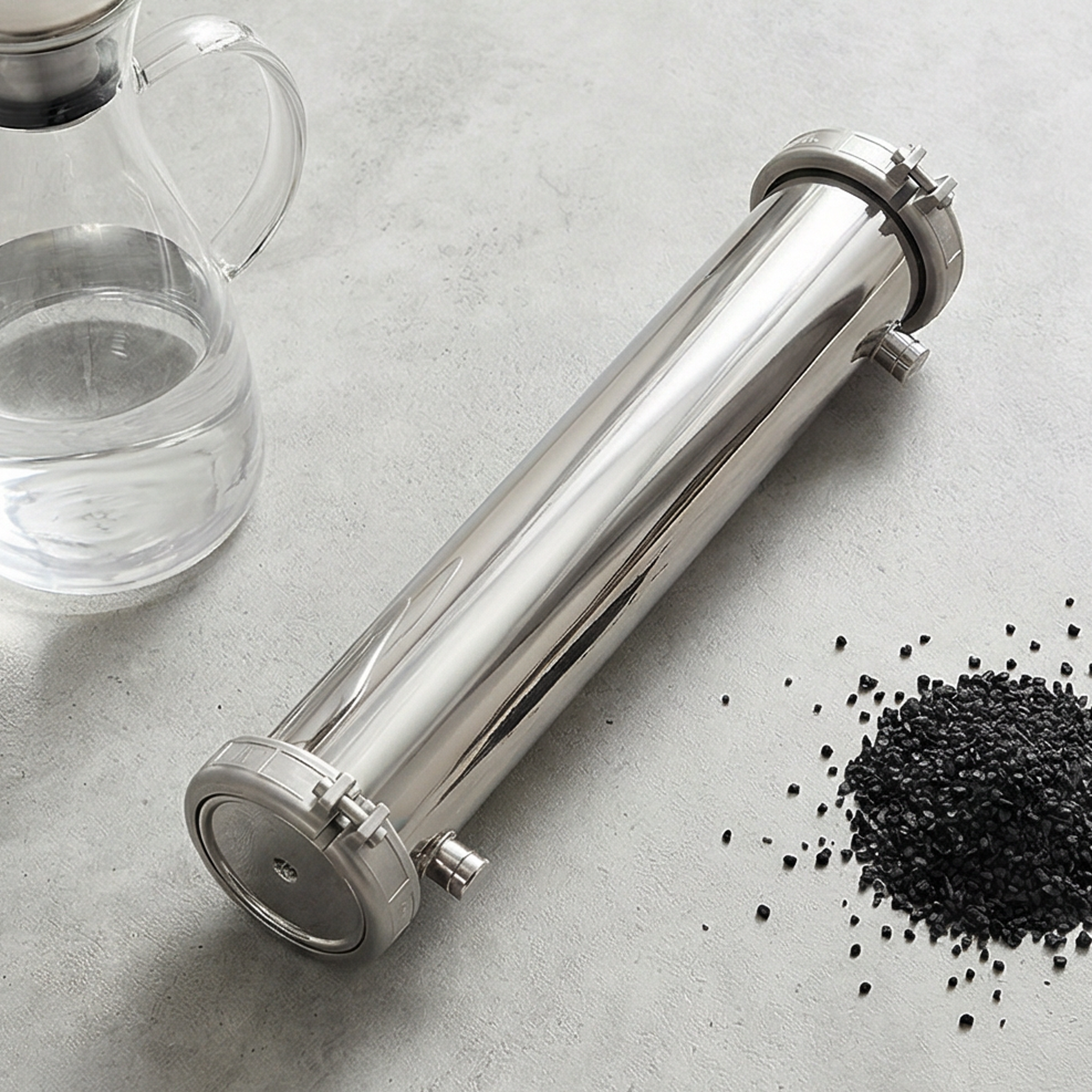

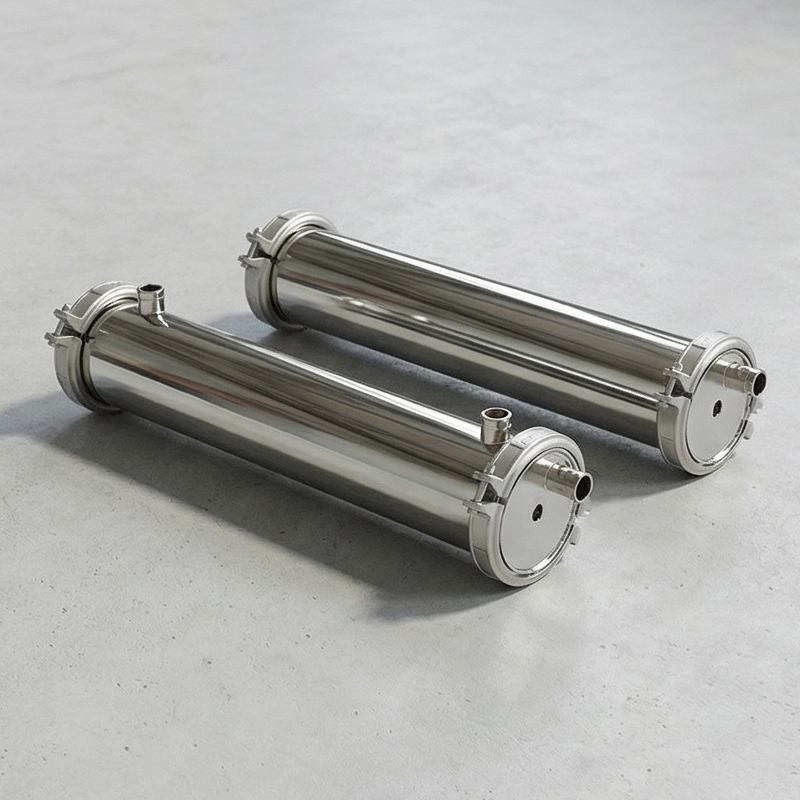

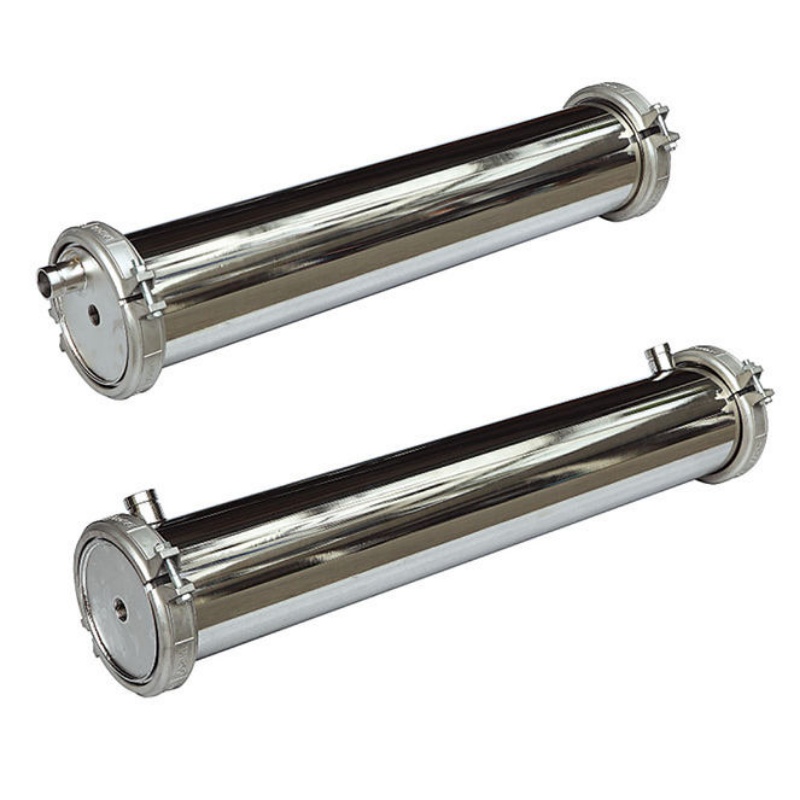

Food Grade Stainless Steel Coupling Membrane Housing CIP Design FDA Certified Manufacturer Direct

Parameter Overview:

Side inlet, 8-inch membrane housing coupling type

Work pressure: 300PSI/600PSI

Maximum working temperature: 90°C

Shell material: Stainless steel 304/316L

End cap material: stainless steel 304/316L

O-ring material: EPDM, NSF grade

Surface treatment: mechanical polishing (320 mesh, Ra<0.6)

Model: Equipped with 8040 standard membrane housing, can hold 1-6 pieces

Advanced Coupling Technology

Patented Modular Coupling System

Quick-Connect Couplings: Precision-machined stainless steel couplings enable vessel-to-vessel connection in seconds without flanges, gaskets, or bolts

Zero-Leak Design: Integrated double O-ring seal with pressure-assist technology ensures perfect sealing even under pressure cycling and thermal expansion

Alignment Guaranteed: Self-aligning coupling mechanism eliminates installation errors and ensures perfect hydraulic alignment

Scalable System Architecture

Plug-and-Play Expansion: Add or remove vessels without system shutdown or extensive re-piping

Multiple Configuration Options: Series arrangement for staging, parallel for capacity, or hybrid for specific treatment requirements

Space Optimization: Compact coupling design reduces overall system footprint by up to 40% compared to traditional piped systems

Key Features & Benefits

1. Unmatched Installation Flexibility

Rapid Assembly: Complete multi-vessel system assembly in hours instead of days

No Special Tools: All connections made with standard tools

Field-Reconfigurable: Change system configuration in the field without factory return

2. Superior Hydraulic Performance

Minimized Pressure Drop: Streamlined coupling design reduces inter-vessel pressure loss by 60-80%

Uniform Flow Distribution: Precision-machined flow channels ensure equal distribution across all membranes

Elimination of Dead Zones: Continuous flow path prevents stagnation and biofilm formation

3. Enhanced Maintenance Accessibility

Individual Vessel Isolation: Each vessel can be isolated and serviced without draining entire system

Quick Element Access: Top or end-loading options with easy-open closures

Visual Inspection Ports: Optional sight glasses for membrane condition monitoring

Industry Applications

Commercial RO Systems

Bottling Plants: High-purity water production with easy scalability

Hospitals: Pharmaceutical-grade water with space constraints

Hotels & Resorts: Compact drinking water systems

Industrial Water Treatment

Power Generation: Boiler feed water and process water

Microelectronics: Ultra-pure water for manufacturing

Food & Beverage: Process water treatment and reuse

Municipal & Special Applications

Containerized Systems: Mobile water treatment units

Remote Installations: Mining camps and offshore platforms

Emergency Response: Rapid deployment water purification

Specialized Processes

Seawater Desalination: High-pressure coupled systems

Wastewater Reuse: Multi-stage treatment trains

Chemical Processing: Corrosion-resistant configurations

Installation & Maintenance Advantages

Simplified Installation

Pre-assembled Modules: Factory-tested vessel assemblies

Reduced Piping: Up to 70% fewer connections than traditional systems

Flexible Layout: Can be arranged in straight lines, L-shapes, or U-shapes

Easy Maintenance

Individual Vessel Service: Isolate and service one vessel without affecting others

Quick Coupling Disconnect: Seconds to separate vessels for maintenance

Standard Components: All seals and wear parts are standard, readily available items

Cost Savings

Reduced Installation Time: 50-70% faster installation than piped systems

Lower Material Costs: Fewer pipes, fittings, and supports required

Minimal Foundation: Lighter weight and compact design reduces structural requirements

Why Choose Our Coupling Membrane Housing?

Unmatched Flexibility: Reconfigure your system as needs change without major reconstruction

Space Efficiency: Achieve higher capacity in smaller footprints—critical for space-constrained sites

Future-Proof Design: Easily expand capacity as your requirements grow

Reduced Lifetime Costs: Lower installation, maintenance, and expansion costs

Proven Reliability: Robust design tested in demanding applications worldwide
