Technical Specifications
| Model | No.of filter cartridges(pcs) | Lengthof flter cartridges | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | L (mm) | Inlet/ Outlet a1/a2 | Exhaust vent/Pressure gauge b1 | Discharge b2 | Design flow(m³/h) |
| KY-WDTL-1*40” | 1 | 40" | 800 | 400 | 600 | ∅200 | 140 | 1470 | DN80 | 1/4" | 1/2" | 40 |
| KY-WDTL-2*40” | 2 | 40" | 800 | 450 | 725 | ∅400 | 200 | 1550 | DN100 | 1/4" | 3/4" | 80 |
| KY-WDTL-3*40” | 3 | 40" | 800 | 450 | 775 | ∅450 | 250 | 1600 | DN100 | 1/4" | 3/4" | 120 |
| KY-WDTL-4*40” | 4 | 40" | 800 | 475 | 825 | ∅500 | 300 | 1640 | DN125 | 1/4" | 3/4" | 160 |
| KY-WDTL-5*40” | 5 | 40" | 800 | 550 | 875 | ∅550 | 350 | 1655 | DN150 | 1/4" | 1" | 200 |
| KY-WDTL-6*40” | 6 | 40" | 800 | 575 | 925 | ∅600 | 400 | 1680 | DN200 | 1/4" | 1" | 240 |
| KY-WDTL-7*40” | 7 | 40" | 800 | 600 | 975 | ∅650 | 450 | 1700 | DN200 | 1/4" | 1" | 280 |
| KY-WDTL-8*40” | 8 | 40" | 800 | 625 | 1025 | ∅700 | 500 | 1720 | DN250 | 1/4" | 1" | 320 |
| KY-WDTL-9*40” | 9 | 40" | 800 | 640 | 1075 | ∅750 | 550 | 1730 | DN250 | 1/4" | 1" | 360 |
| KY-WDTL-10*40” | 10 | 40" | 800 | 700 | 1200 | ∅800 | 600 | 1740 | DN300 | 1/4" | 1-1/2" | 420 |
| KY-WDTL-12*40” | 12 | 40" | 800 | 725 | 1250 | ∅850 | 650 | 1750 | DN350 | 1/4" | 1-1/2" | 480 |
| KY-WDTL-14*40” | 14 | 40" | 800 | 750 | 1300 | ∅900 | 700 | 1790 | DN350 | 1/4" | 1-1/2" | 560 |

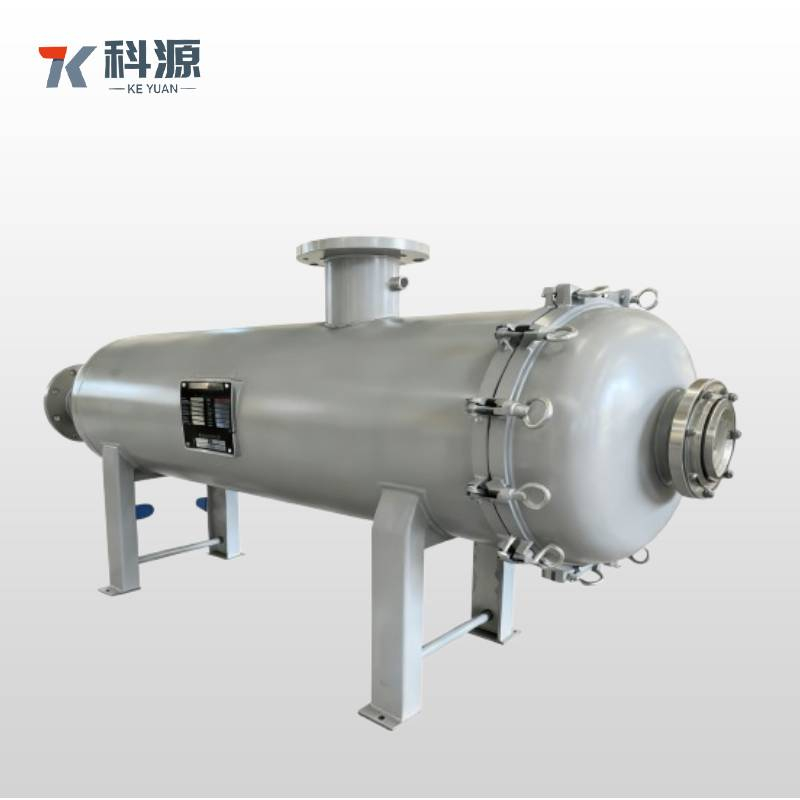

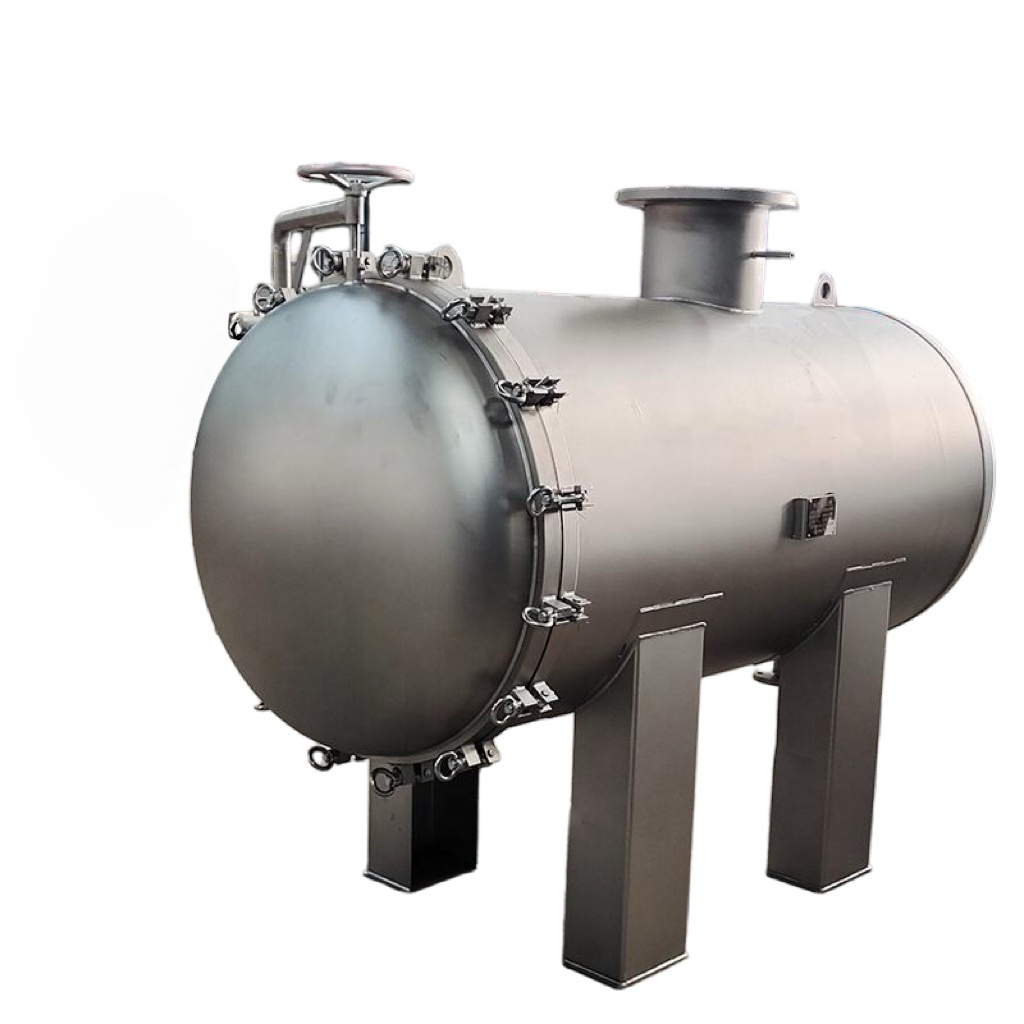

Advanced Horizontal Design Architecture
Space-Optimized Configuration
Low-Profile Design: Horizontal orientation reduces installation height by 60-70% compared to equivalent vertical filters
Compact Footprint: Optimized length-to-diameter ratio provides maximum filtration area within minimum floor space
Under-Platform Installation: Specifically designed for installation under pipes, conveyors, or equipment platforms
High-Flow Hydraulic Engineering
Axial Flow Design: Straight-through flow path minimizes pressure drop and turbulence
Multi-Cartridge Array: Accommodates 7 to 61+ standard cartridges in a single horizontal housing
Balanced Flow Distribution: Patented inlet manifold ensures equal flow to all cartridge elements
Key Features & Operational Advantages
1. Superior Space Utilization
Low Ceiling Compatibility: Typical installation height of 24-36 inches for most models
Parallel Arrangement Capability: Multiple units can be installed side-by-side in compact arrays
Easy Integration: Fits easily under existing piping racks and equipment platforms
2. Exceptional Flow Performance
Minimal Pressure Drop: Straight axial flow design typically maintains ΔP < 5 PSI at design flow
High Dirt-Holding Capacity: Large total filtration area extends service cycles by 40-60%
Uniform Loading: Advanced distribution system ensures balanced contaminant loading across all cartridges
3. Enhanced Maintenance Accessibility
Full-Length Access: End-opening design provides complete access to all cartridges
Easy Cartridge Removal: Cartridges slide out horizontally without lifting or special tools
Ground-Level Maintenance: All service operations performed at comfortable working height
Industry Applications
Cooling Water Systems
Low-Headroom Mechanical Rooms: Where ceiling heights restrict vertical installations
Under-Cooling Tower Installations: Direct mounting under cooling tower basins
Industrial Chiller Plants: Integration into crowded mechanical spaces
Process Water Treatment
Manufacturing Facilities: Where overhead cranes or conveyors limit vertical space
Chemical Plants: Installation under pipe racks and process piping
Power Generation: Auxiliary building installations with space constraints
Industrial Manufacturing
Steel Mills: Installation in areas with limited overhead clearance
Automotive Plants: Integration into crowded production facilities
Paper Mills: Placement under paper machine hoods or platforms
Special Applications
Marine & Offshore: Shipboard installations with strict height limitations
Mobile Systems: Trailer-mounted or containerized treatment systems
Retrofit Projects: Replacement of vertical filters in space-constrained locations
Installation & Maintenance Benefits
Simplified Installation
Low Lifting Requirements: Can often be positioned without heavy lifting equipment
Easy Alignment: Horizontal orientation simplifies connection to existing piping
Minimal Support Structure: Often requires only simple saddles or brackets
Enhanced Maintenance
Gravity-Assisted Drainage: Complete drainage through bottom ports
No Ladder Requirements: All maintenance performed from floor level
Easy Cartridge Handling: Horizontal removal eliminates lifting cartridges from deep housings
Operational Safety
Low Center of Gravity: Reduced risk of tipping or instability
Accessible Controls: All valves and gauges at convenient working height
Clear Work Area: No overhead hazards during maintenance
