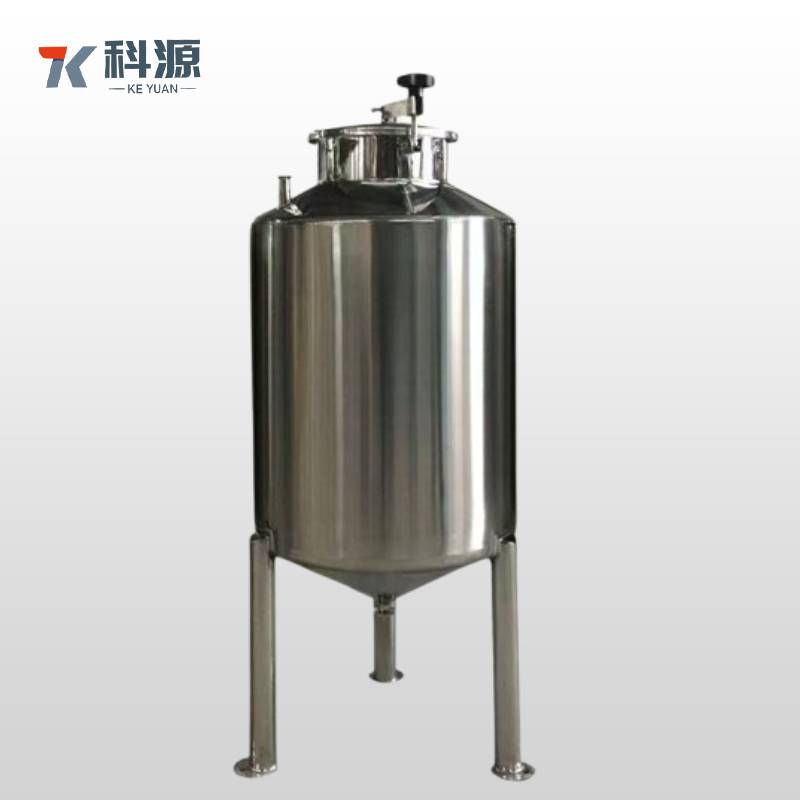

Sanitary Grade 304/316L Stainless Steel Water Storage Tank with Mirror Polish Finish for Food, Beverage and Pharmaceutical Industry

Our Stainless Steel Single-Layer Water Storage Tank provides a fundamental, reliable, and cost-effective solution for a wide range of water storage needs. Designed with simplicity and durability at its core, this tank delivers the essential benefits of premium stainless steel construction—superior hygiene, corrosion resistance, and long-term reliability—in a straightforward, efficient design. It is the ideal choice for applications where robust performance and straightforward maintenance are paramount.

Model:
Customized
Brand:
Keyuan

Availability:

Quantity:



Inquire Add to Basket

Product Description

Parameter Overview:

Design pressure: 0.6-1.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 C-40 °C (explanation required for temperatures exceeding 80 ℃)
Sealing materials: Silicone,nitrile rubber, EPDM rubber, fluororubber
Interface method: Threaded, standard flange
Recommended replacement pressure difference: 2.0 bar
Maximum replacement pressure difference: 2.4 bar
Surface treatment: Polishing/matte sandblasting
Tank material: SUS304, SUS316L

Model	B (mm)	D (mm)	H (mm)	F (mm)	Inlet/ Outlet a1/a2	Capacity (L)
KY-SX-1/0.25m³	1220	500	1800	250	1/2”-3/4”	280
KY-SX-1/0.30m³	1220	550	1830	250	1/2”-3/4”	345
KY-SX-1/0.5m³	1220	700	2020	250	1/2”-3/4”	578
KY-SX-1/0.7m³	1220	800	2100	250	3/4" -1"	772
KY-SX-1/1m³	1220	1000	2220	300	3/4" -1"	1257
KY-SX-1/1.5m³	1220	1200	2320	300	3/4" -1"	1888
KY-SX-1/2m³	1220	1400	2370	300	1-1/2"	2672
KY-SX-1/3m³	1500	1500	2700	300	1-1/2"	3621
KY-SX-1/4m³	1800	1600	3050	300	1-1/2"	4790
KY-SX-1/5m³	1800	1800	3150	300	1-1/2"	6232
KY-SX-1/6m³	1800	2000	3300	350	2”	7907
KY-SX-1/8m³	1800	2200	3400	350	2"	9930
KY-SX-1/10m³	1800	2400	3500	350	2"	12118
KY-SX-1/15m³	1800	2800	3700	350	2"	17317

Core Construction & Design Philosophy

Premium Material, Simplified Design

High-Grade Stainless Steel: Constructed from corrosion-resistant AISI 304 or 316L stainless steel sheets, ensuring purity of stored water and long service life.

Robust, Single-Wall Construction: Features a single-layer wall without internal linings or complex composite structures, simplifying inspection, cleaning, and maintenance.

Precision Welded Integrity: All seams are continuously welded using TIG (Tungsten Inert Gas) process, creating strong, hygienic, and leak-proof joints.

Optimized for Function and Maintenance

Smooth Interior Surface: Standard #2B mill finish provides a clean, easy-to-clean surface suitable for most industrial and commercial water storage applications.

Structural Reinforcement: Externally welded stiffening ribs or formed corrugations ensure tank stability under full capacity, even in large-volume designs.

Practical Connection Design: Standard flanged or threaded inlet/outlet ports, along with essential fittings like manholes, vents, and overflow protection.

Key Features & Direct Benefits
Hygienic & Safe Storage
Inert stainless steel ensures no chemical leaching, preserving water quality for potable and process uses.
Non-porous surface inhibits microbial growth and is easily cleaned.

Durable & Low Maintenance
Excellent resistance to corrosion and environmental factors ensures a service life of 20+ years.
No internal linings, coatings, or cathodic protection systems required, eliminating associated maintenance costs.

Cost-Effective & Simple
Lower initial investment compared to insulated or double-wall tanks, providing excellent value.
Straightforward design translates to easy installation, inspection, and understanding for operators.

Versatile & Adaptable
Suitable for indoor installation or outdoor use in mild climates.
Can be easily fitted with aftermarket insulation jackets if temperature control becomes necessary.

Why Choose Our Water Storage Tank?
Pure Value: Delivers the core benefits of stainless steel storage at the most competitive price point.
Proven Simplicity: A reliable, time-tested design with no unnecessary complexity that could lead to failure points.
Flexibility: Serves as an excellent primary tank that can be upgraded later with insulation if needs change.
Trusted Quality: Built with the same material integrity and welding standards as our premium product lines.
