Tank material: SUS304, SUS316L
Design pressure: 0.6Mpa (if greater than this pressure, please specify)
Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)
Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber
Interface method: Standard flange
Opening method: Quick opening rocker arm
Filtering accuracy: 0.1um-100um
Surface treatment: Polishing/matte sandblasting
Does it has legs: Customised
Filter cartridge form: Flat holding, 222/226 socket filter cartridge
| Model | No.of filter cartridges (pcs) | Length of filter cartridges | A
(mm) | B
(mm) | H
(mm) | D
(mm) | F
(mm) | Inlet/Outlet
a1/a2 | Discharge
b2 | Pressure gauge
b1 |
| KY-KZY-JM15-30" | 15 | 30'' | 800 | 370 | 1580 | ∅350 | 200 | DN50 | 3/4" | 1/4" |
| KY-KZY-JM15-40" | 15 | 40'' | 900 | 370 | 1830 | ∅350 | 200 | DN65 | 3/4" | 1/4" |
| KY-KZY-JM20-30" | 20 | 30'' | 900 | 390 | 1630 | ∅400 | 200 | DN65 | 3/4" | 1/4" |
| KY-KZY-JM20-40" | 20 | 40'' | 1000 | 390 | 1880 | ∅400 | 200 | DN65 | 3/4" | 1/4" |
| KY-KZY-JM25-30" | 25 | 30'' | 900 | 460 | 1680 | ∅450 | 250 | DN80 | 3/4" | 1/4" |
| KY-KZY-JM25-40" | 25 | 40'' | 1100 | 460 | 1930 | ∅450 | 250 | DN80 | 3/4" | 1/4" |
| KY-KZY-JM30-30" | 30 | 30'' | 900 | 480 | 1740 | ∅500 | 250 | DN80 | 1" | 1/4" |
| KY-KZY-JM30-40" | 30 | 40'' | 1100 | 480 | 1990 | ∅500 | 250 | DN80 | 1" | 1/4" |
| KY-KZY-JM36-30" | 36 | 30'' | 900 | 500 | 1780 | ∅550 | 250 | DN100 | 1" | 1/4" |
| KY-KZY-JM36-40" | 36 | 40'' | 1100 | 500 | 2030 | ∅550 | 250 | DN100 | 1" | 1/4" |
| KY-KZY-JM45-30" | 45 | 30'' | 1000 | 560 | 1850 | ∅600 | 300 | DN100 | 1" | 1/4" |
| KY-KZY-JM45-40" | 45 | 40'' | 1200 | 560 | 2100 | ∅600 | 300 | DN100 | 1" | 1/4" |
| KY-KZY-JM55-30" | 55 | 30'' | 1000 | 580 | 1880 | ∅650 | 300 | DN125 | 1" | 1/4" |
| KY-KZY-JM55-40" | 55 | 40'' | 1200 | 580 | 2130 | ∅650 | 300 | DN125 | 1" | 1/4" |
| KY-KZY-JM65-30" | 65 | 30'' | 1000 | 590 | 1900 | ∅700 | 300 | DN125 | 1" | 1/4" |
| KY-KZY-JM65-40" | 65 | 40'' | 1200 | 590 | 2150 | ∅700 | 300 | DN150 | 1" | 1/4" |
| KY-KZY-JM75-30" | 75 | 30'' | 1000 | 610 | 1950 | ∅750 | 300 | DN150 | 1" | 1/4" |
| KY-KZY-JM75-40" | 75 | 40'' | 1250 | 610 | 2200 | ∅750 | 300 | DN150 | 1-1/2" | 1/4" |
| KY-KZY-JM80-30" | 80 | 30'' | 1000 | 620 | 1970 | ∅800 | 300 | DN150 | 1-1/2" | 1/4" |
| KY-KZY-JM80-40" | 80 | 40'' | 1250 | 620 | 2220 | ∅800 | 300 | DN175 | 1-1/2" | 1/4" |
| KY-KZY-JM90-30" | 90 | 30'' | 1000 | 650 | 2140 | ∅850 | 300 | DN175 | 1-1/2" | 1/4" |
| KY-KZY-JM90-40" | 90 | 40'' | 1250 | 650 | 2390 | ∅850 | 300 | DN175 | 1-1/2" | 1/4" |
| KY-KZY-JM100-30" | 100 | 30'' | 1100 | 670 | 2070 | ∅900 | 300 | DN200 | 1-1/2" | 1/4" |
| KY-KZY-JM100-40" | 100 | 40'' | 1350 | 670 | 2320 | ∅900 | 300 | DN200 | 1-1/2" | 1/4" |
| KY-KZY-JM120-30" | 120 | 30'' | 1200 | 750 | 2170 | ∅1000 | 350 | DN200 | 1-1/2" | 1/4" |
| KY-KZY-JM120-40" | 120 | 40'' | 1400 | 750 | 2420 | ∅1000 | 350 | DN200 | 1-1/2" | 1/4" |
| KY-KZY-JM140-30" | 140 | 30'' | 1300 | 830 | 2350 | ∅1100 | 350 | DN250 | 2" | 1/4" |
| KY-KZY-JM140-40" | 140 | 40'' | 1500 | 830 | 2600 | ∅1100 | 350 | DN250 | 2" | 1/4" |
| KY-KZY-JM160-30" | 160 | 30'' | 1300 | 860 | 2400 | ∅1200 | 350 | DN250 | 2" | 1/4" |
| KY-KZY-JM160-40" | 160 | 40'' | 1500 | 860 | 2650 | ∅1200 | 350 | DN250 | 2" | 1/4" |

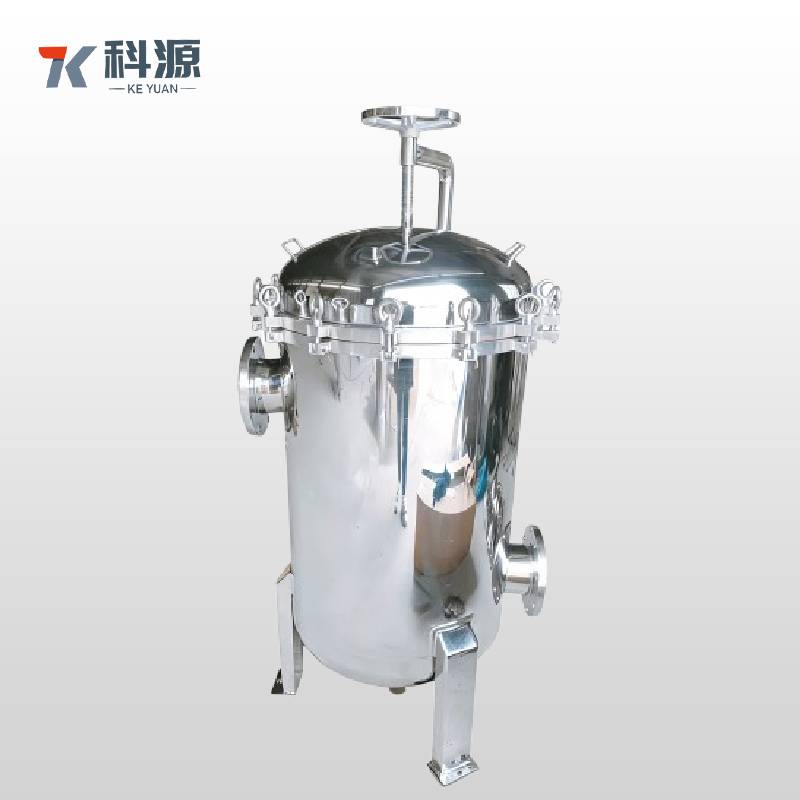

Innovative Quick-Open Rocker Arm TechnologyOne-Second Access: Unique counterbalanced rocker arm design allows the filter housing to be opened and securely closed in under 10 seconds with a single hand motion—no tools, wrenches, or complex procedures required.
Ergonomic & Safe Operation: The rocker arm reduces the force required to open/close by up to 80% compared to traditional swing-bolt designs, minimizing operator strain and improving workplace safety.
Rocker Arm Mechanism Details
Mechanical Design
Precision Counterbalance: Spring-assisted mechanism offsets 90% of cover weight for effortless operation.
Over-Center Locking: Positive locking action ensures vibration-proof closure even in high-flow applications.
Wear Compensation: Self-adjusting mechanism maintains perfect seal alignment throughout service life.
Operational Benefits
Reduced Downtime: 70–80% faster maintenance compared to bolted designs.
Lower Labor Cost: Eliminates specialized maintenance personnel requirements.
Improved Schedule Compliance: Enables precise maintenance scheduling without production disruption.
Ideal Applications
Pharmaceutical: Process intermediates, solvent filtration, purified water systems
Food & Beverage: Syrups, edible oils, dairy products, brewing applications
Chemical Processing: Catalysts recovery, polymer filtration, chemical purification
Electronics: Photoresists, etchants, ultrapure water pre-filtration
Cosmetics: Creams, lotions, fragrances, active ingredients
Consistent Performance: Uniform clamping force ensures reliable sealing cycle after cycle
Versatile Applications: Suitable for batch and continuous processes across multiple industries
Why Choose Our Quick-Open Rocker Arm Filter?
Time is Money: Drastically reduces maintenance downtime—saving thousands in lost production time annually.
Ergonomic Excellence: Reduces workplace injuries and operator fatigue associated with traditional designs.
Process Integrity: Maintains the highest standards of filtration performance while enabling rapid access.
Future-Proof Investment: Modular design allows for easy upgrades and adaptation to changing process needs.
Global Support: Worldwide service network with 24/7 technical support and spare parts availability.
