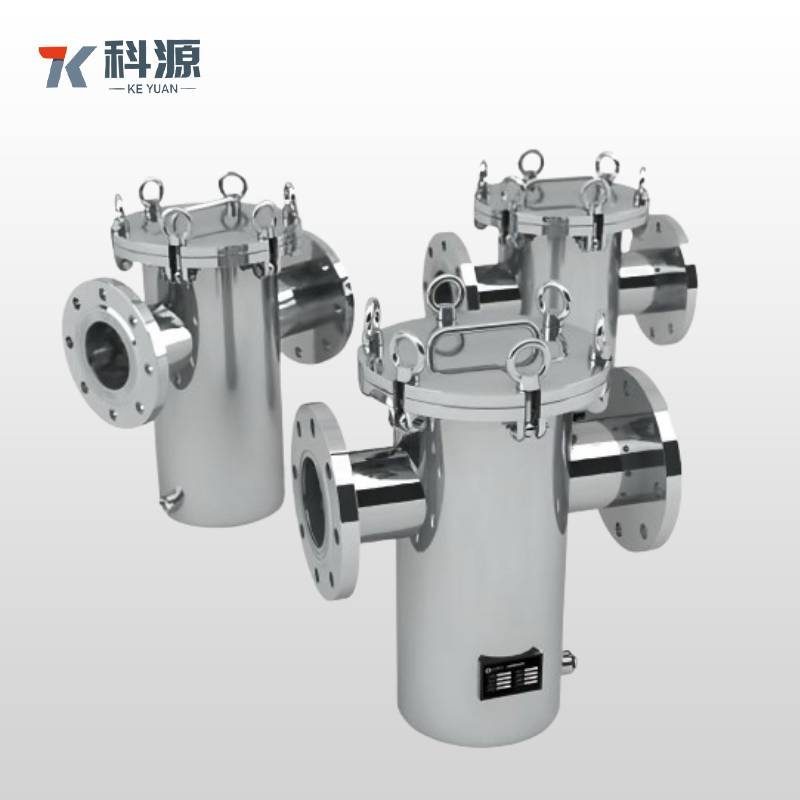

Durable Stainless Steel Basket Filter for Liquid & Water Purification Systems

The basket filter is mainly composed of connecting pipes, a main pipe, a fiter basket, flanges_, flange covers, and fasteners. When the liquid enters the filter basket through the main pipe, solid impurity particles are blocked inside the filter basket, while clean fluid passes through the filter basket and is discharged from the filter outlet. When cleaning is needed, unscrew the bottom plug of the main pipe, drain the liquid, remove the flange cover, clean it,and reinstall it. Therefore,it is extremely convenient to use and maintain.

Key Features & Advantages

1. Superior Protection & Efficiency

Equipment Protection: Effectively prevents damage to pumps, valves, spray nozzles, and meters from debris and particulate matter

High Flow Capacity: Large basket surface area and optimized housing design support high flow rates with minimal pressure drop (typically <2 PSI clean)

Visual Inspection: Transparent sight glass option (on applicable models) allows visual monitoring of basket condition without disassembly

2. Easy Maintenance & Operation

Quick Access Design: Top-opening configuration allows basket inspection and cleaning in minutes

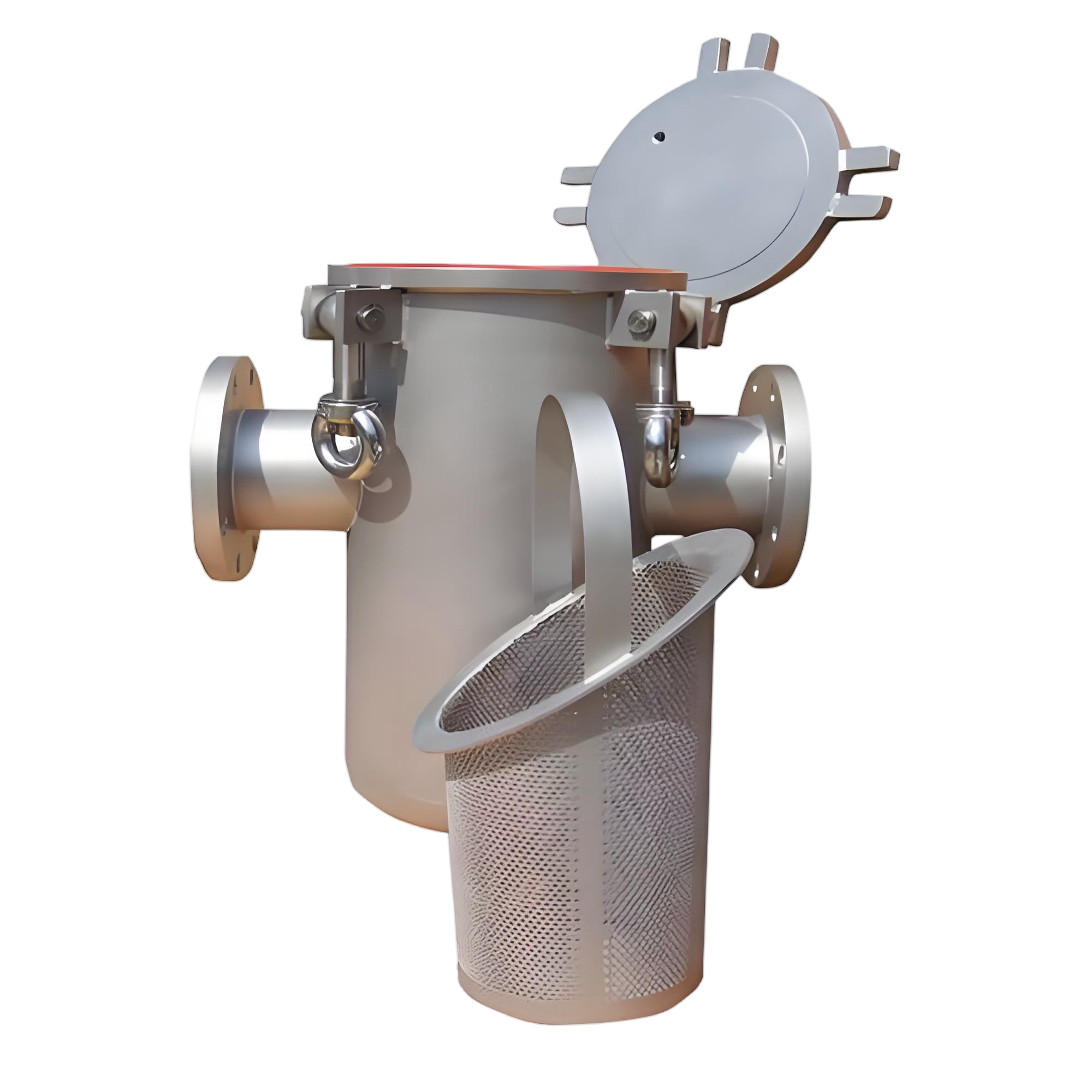

Tool-Free Basket Removal: Integrated handle allows easy lifting of basket without special tools

Complete Drainage: Bottom drain valve facilitates easy flushing and sediment removal

3. Versatile Application Design

Multiple Installation Options: Suitable for horizontal or vertical piping (inlet position varies)

Flexible Connection Styles: Available with threaded, flanged, or sanitary connections

Custom Configurations: Special sizes, materials, and pressure ratings available

Industry Applications

Water Treatment

Cooling Water: Protection of cooling tower nozzles and heat exchangers

Process Water: Intake filtration for manufacturing water systems

Irrigation Systems: Protection of sprinkler heads and drip emitters

Oil & Gas

Fuel Oil Filtration: Protection of burner nozzles and fuel systems

Produced Water: Solids removal in oilfield water treatment

Pipeline Protection: Station inlet filtration for pipeline systems

Food & Beverage

Process Water: Protection of heat exchangers and processing equipment

CIP Systems: Return line filtration for cleaning systems

Ingredient Transfer: Protection of transfer pumps and meters

Manufacturing

Coolant Systems: Protection of machining center pumps and nozzles

Paint Systems: Filtration of paint and coating materials

HVAC Systems: Chilled and hot water system protection

Installation & Maintenance

Easy Installation

Flexible Orientation: Can be installed horizontally or vertically

Clear Flow Direction: Clearly marked inlet and outlet ports

Minimal Support: Requires only standard piping support

Simple Maintenance

Quick Inspection: Top cover removal provides full access to basket

Easy Cleaning: Basket can be removed, cleaned, and reinserted quickly

Seal Replacement: Standard O-rings or gaskets are easily replaced

Safety Features

Pressure Relief: Optional safety relief devices available

Lockout Capability: Accommodates lockout/tagout devices

Warning Tags: Clear operating instructions and warnings

Why Choose Our Basket Filter?

Proven Reliability: Simple, time-tested design with decades of successful operation

High Value: Low initial cost with minimal maintenance requirements

Flexible Application: Suitable for a wide range of industries and fluids

Easy Maintenance: Designed for quick inspection and cleaning

Durable Construction: Built to withstand demanding industrial environments
