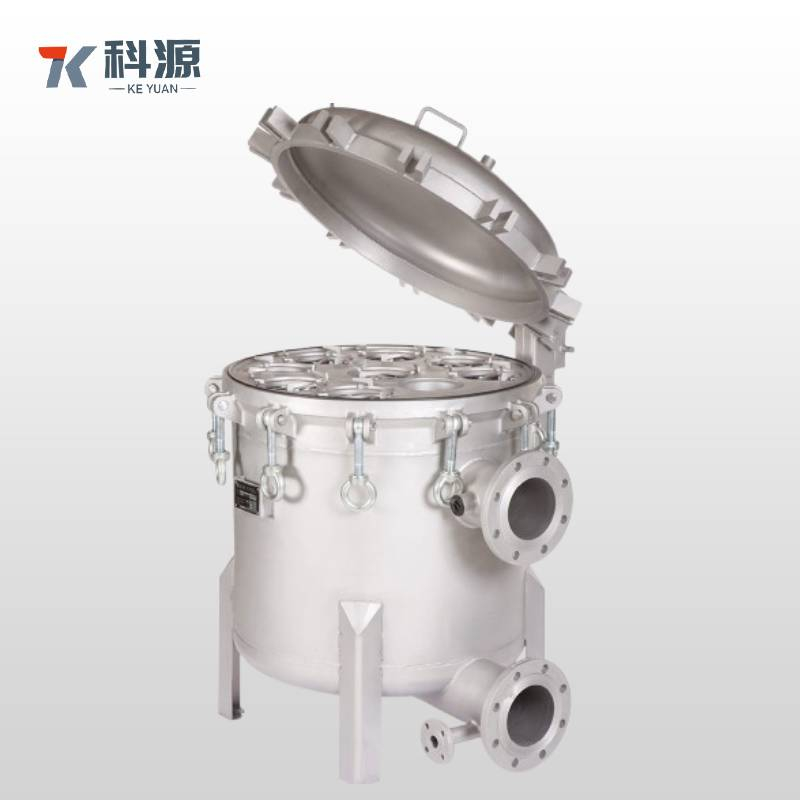

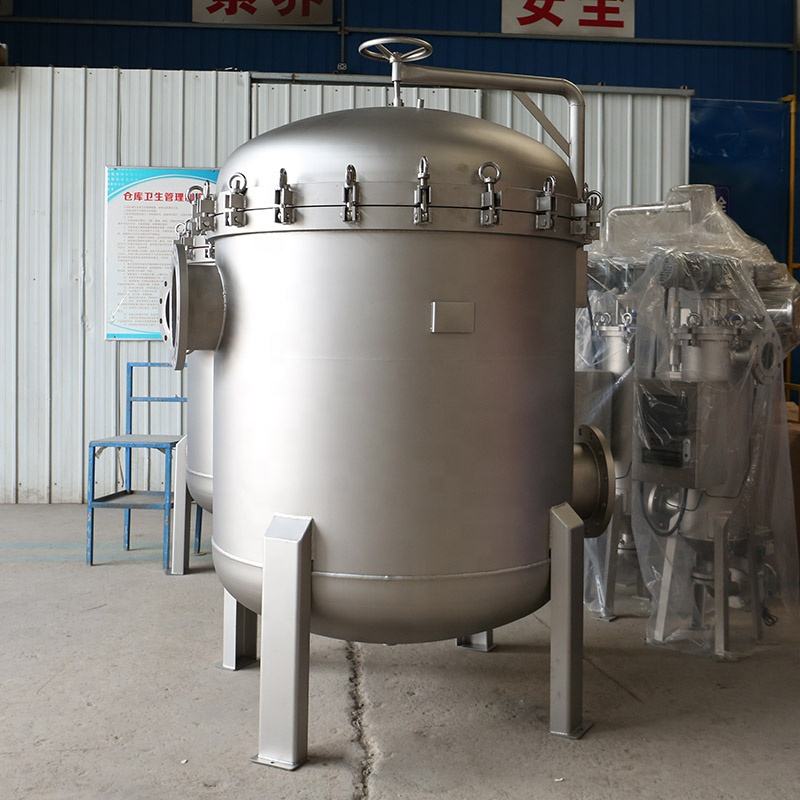

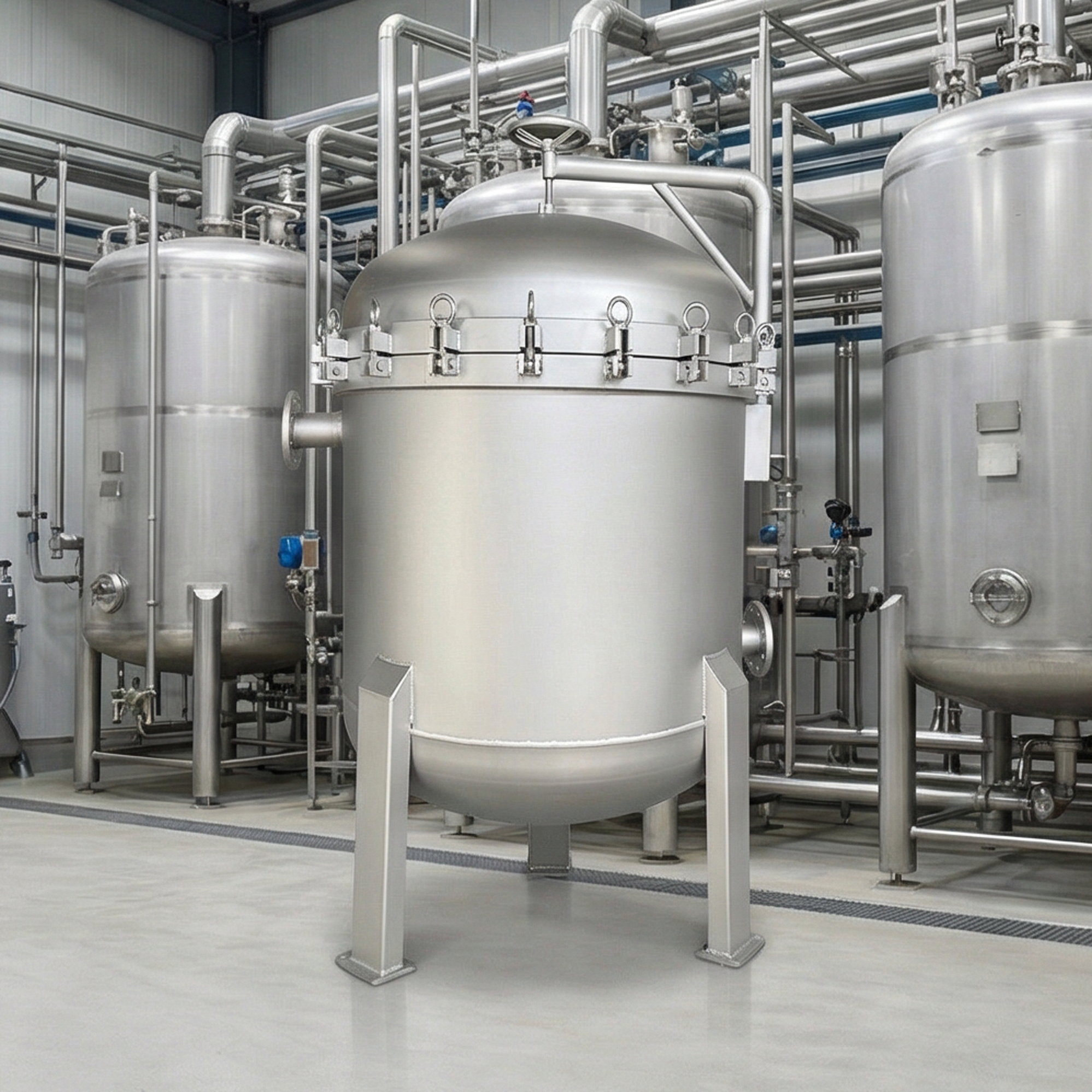

High-Efficiency Multi-Bag Filter Vessel in 316 Stainless Steel, Ideal for Oil Filtration, Paint Lines, Adhesive, and Chemical Transfer

Our Stainless Steel Multi-Bag Filter System is engineered for industrial applications requiring superior flow capacity, extended service cycles, and exceptional filtration performance. Designed to accommodate multiple filter bags within a single, robust housing, this system delivers unparalleled dirt-holding capacity while maintaining minimal pressure drop – making it the ideal solution for large-volume fluid processing across diverse industries.

Model:
Customized
Brand:
Keyuan

Availability:

Quantity:



Inquire Add to Basket

Product Description

Technical Specifications

Design pressure: 0.6Mpa (if greater than this pressure, please specify)

Design temperature: -5 ℃ -40 ℃ (special temperature needs to be specified)

Sealing materials: Silicone, nitrile rubber, EPDM rubber, fluororubber

Interface method: Threaded, standard flange

Water inlet method: side inlet and side outlet, side inlet and bottom outlet/upper inlet and side outlet, up inlet and down outlet

Filtering accuracy: 1-800um

Design flow rate: 60-540m ³/h (multiple bags)

Surface treatment: Polishing/matte sandblasting

Leg support methods: Fixed and adjustable

Number of filter bags: 1 #/2 #/3 #/4 # Multiple bags, with a maximum capacity of 40 bags per machine

Tank material: SUS304, SUS316L

Model	A (mm)	B (mm)	H (mm)	D (mm)	F (mm)	C (mm)	Inlet/Outlet a1/a2	Pressure housing b1	Discharge /emptying b2	Theoretic Flow m3/h	No.of filter bags
KY-KZ-DS2-2#	1080	320	1400	∅400	120	560	DN65	G1/4"	G1"	60	2
KY-KZ-DS3-2#	1100	350	1430	∅450	120	610	DN80	G1/4"	G1"	90	3
KY-KZ-DS4-2#	1190	400	1540	∅500	150	660	DN100	G1/4"	G1"	120	4
KY-KZ-DS5-2#	1200	400	1560	∅550	150	710	DN125	G1/4"	G1"	150	5
KY-KZ-DS6-2#	1250	450	1630	∅600	150	760	DN125	G1/4"	G1"	150	5
KY-KZ-DS7-2#	1350	450	1740	∅650	150	850	DN150	G1/4"	G2"	180	6
KY-KZ-DS8-2#	1380	500	1780	∅700	150	900	DN150	G1/4"	G2"	240	8
KY-KZ-DS9-2#	1460	500	1920	∅750	150	950	DN200	G1/4"	G2"	270	9
KY-KZ-DS10-2#	1470	550	1950	∅800	150	1000	DN200	G1/4"	G2"	300	10
KY-KZ-DS12-2#	1550	600	2050	∅900	150	1140	DN250	G1/4"	G2"	360	12
KY-KZ-DS16-2#	1570	600	2100	∅1000	150	1240	DN300	G1/4"	G2"	480	16
KY-KZ-DS18-2#	1600	650	2150	∅1100	150	1340	DN300	G1/4"	G2"	540	18

Advanced Multi-Chamber Filtration Technology
High-Capacity Design Architecture
Multi-Bag Configuration: Engineered housing accommodates 2 to 24+ filter bags (standard sizes #1-#4) in a single vessel, providing filtration areas from 10 to 200+ square feet per unit
Parallel Flow Distribution: Patented inlet diffuser system ensures equal flow distribution across all filter bags, preventing premature clogging and maximizing media utilization

Modular Scalability: Systems can be configured in parallel or series arrangements to meet exact flow rate requirements from 100 to 5,000+ GPM

Precision Filtration Performance
Broad Micron Range: Supports filtration from 1 to 800 microns using various bag materials including polypropylene, nylon, felted, and composite media
Optimized Hydraulic Design: Computational Fluid Dynamics (CFD)-modeled internal geometry reduces turbulence and minimizes pressure drop to <5 PSI at maximum flow

High Dirt-Holding Capacity: Multi-bag design provides 3-8 times the contaminant capacity of single-bag units, extending service cycles by 300-500%

Industry Applications with Specific Benefits
1.Chemical Industry
Benefit: Handles aggressive chemicals with appropriate material selection
Application: Bulk chemical filtration, catalyst recovery, polymer processing
2.Power Generation
Benefit: High reliability for continuous operation requirements
Application: Cooling water filtration, fuel oil polishing, scrubber water
3.Food & Beverage
Benefit: Sanitary design meets strict hygiene standards
Application: Bulk ingredient filtration, process water, final product polishing
4.Water Treatment
Benefit: Large capacity reduces maintenance frequency in high-solids applications
Application: Municipal water pretreatment, wastewater solids removal, desalination pre-filtration
